MRCOOL SKU: A-09-HP-230D-O

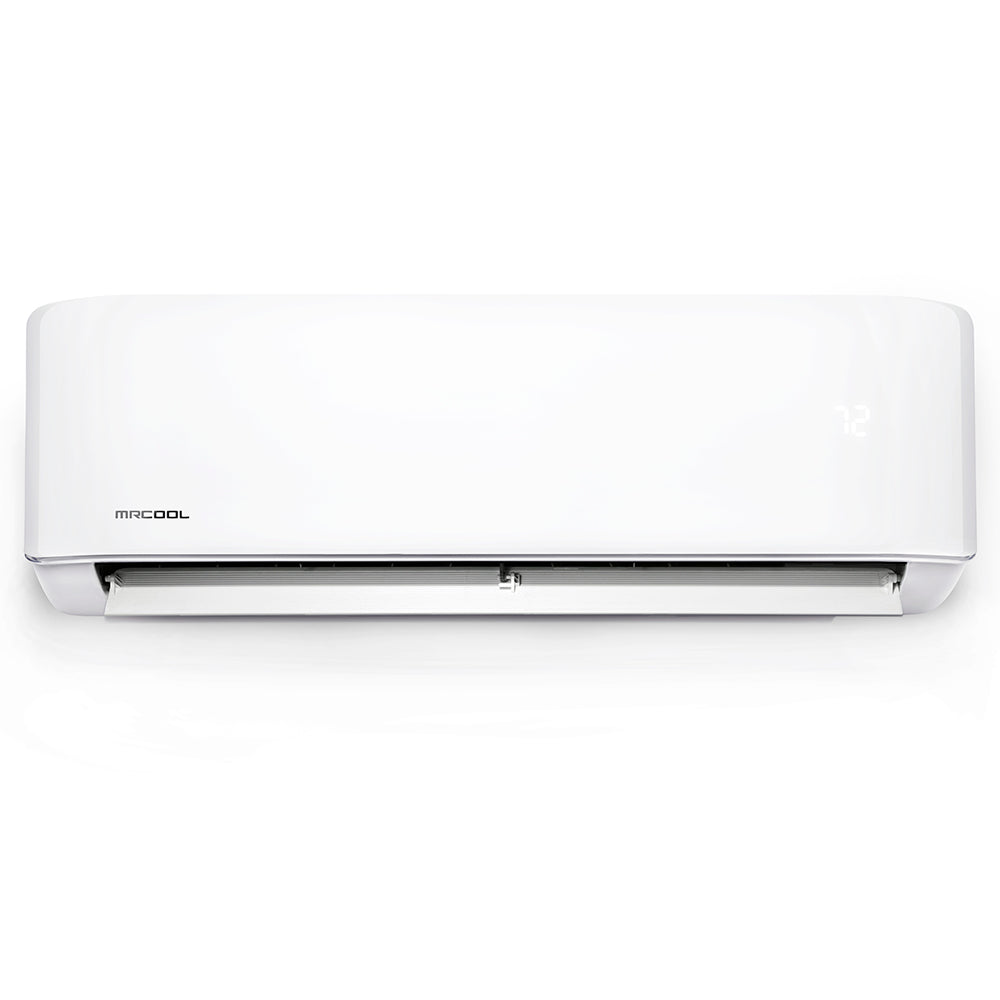

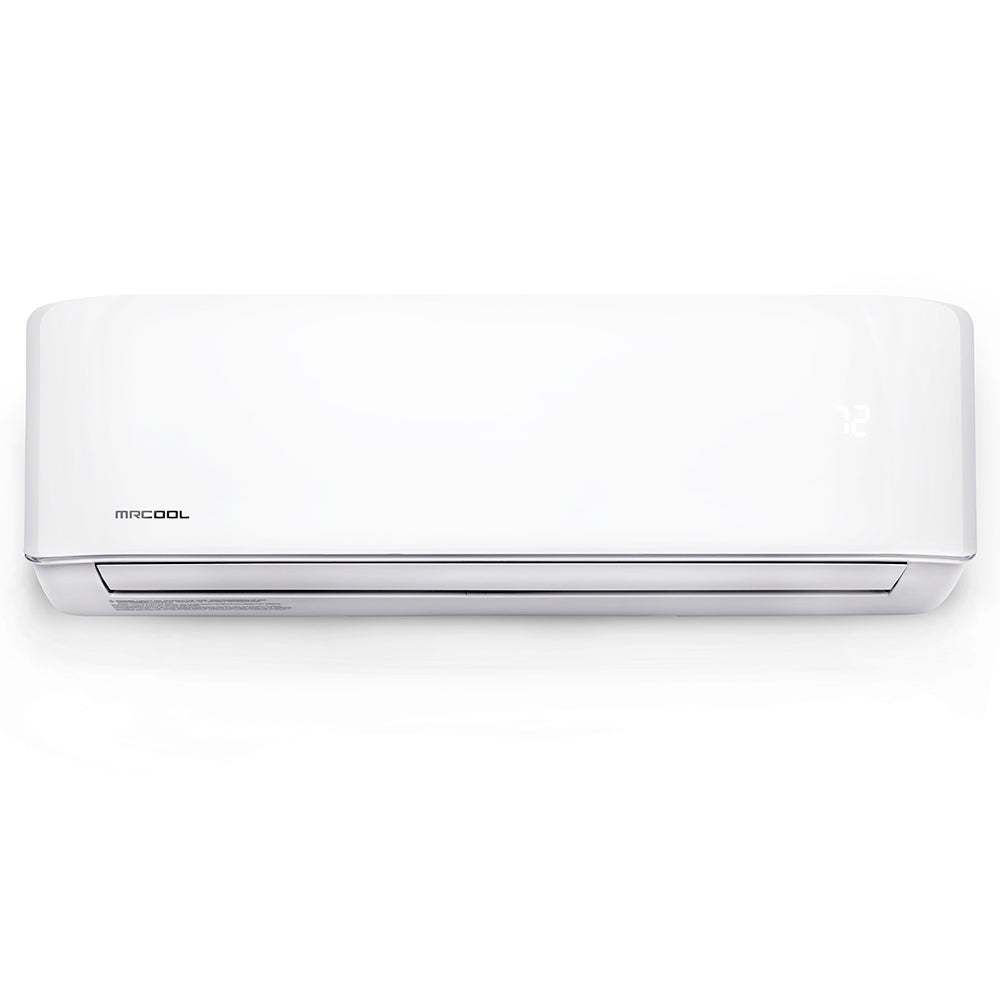

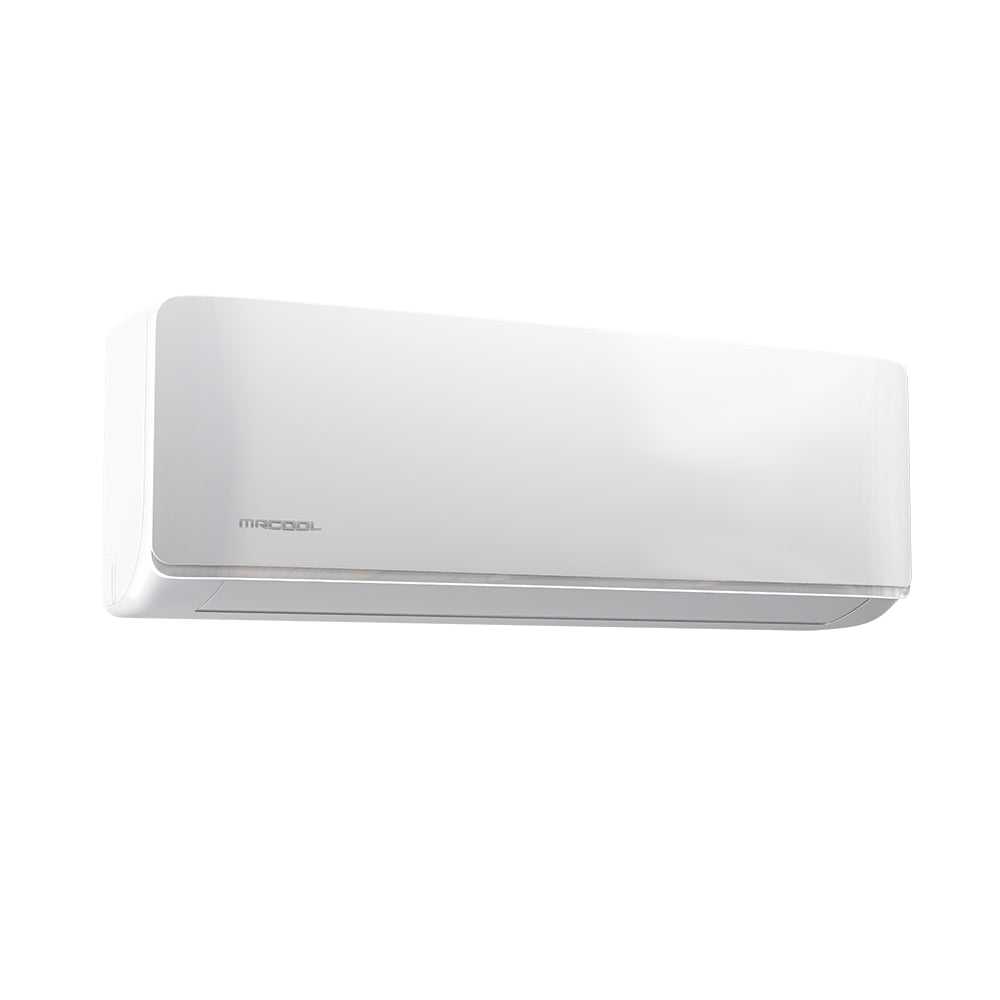

Advantage 5th Gen 9k BTU 230V Air Handler (Complete System)
$63.83 /mo with 12-month special financing (0% APR). Add to cart & apply at checkout. Learn more! Your estimated monthly payment is calculated based on your approved financing terms. Please review the payment terms and conditions.
Additional Discounts in Checkout!
-
Bulk-Buy Discount
Need Large Bulk?
If you need more than 25+ quantity, contact us now for additional discounts.
Installation and Removal
Where will services be needed?
Inner Circle Access
Pro+ Builder Access ( Apply )
Invitation to exclusive events
Get Access to
Get Access to Bulk Price Levels
The 5th Generation MRCOOL® 9k BTU 230V Advantage Air Handler now comes equipped with R454B refrigerant, the latest eco-friendly solution offering enhanced energy efficiency, reduced greenhouse gas emissions, and a lower Global Warming Potential (GWP). Designed for quiet operation, the Advantage series mini-split unit delivers reliable heating and cooling for your home without the need for ductwork, ensuring an efficient and cost-effective solution for any space. This sleek Advantage Air Handler is ideal for homeowners seeking an affordable yet powerful climate control system. With built-in Wi-Fi, you can conveniently control the unit via remote access, allowing it to automatically adjust the temperature overnight for optimal comfort and energy savings. Register your unit and enjoy peace of mind with MRCOOL®’s robust warranty: 1 year on parts, 2 years on the compressor, and 1 year on the remote control. You can also subscribe to the MRCOOL® Care Program. Say goodbye to comfort concerns with the MRCOOL® Advantage Air Handler!
Features
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion Includes features such as timer mode, refrigerant leakage detection, and more Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box. R-454B refrigerant AHRI certified NEEP ccASHP Listed CEE Tier1 - North
Specifications
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Air Handler |
| CFM | 312.0 / 264.9 / 194.2 / 153.0 / 105.9 |
| TONNAGE | 0.75 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Wall |
| COLOR | White |
| DECIBEL RATING (DBA) | 31.5 |
| DECIBEL RATING LOW (DBA) | 18.5 |
| DECIBEL RATING HIGH (DBA) | 40.5 |
| NUMBER OF SPEEDS | 5 |
| MAX LINESET LENGTH (FT) | 82 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| FILTER TYPE | Reusable |
| OVERLOAD PROTECTION | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 1 Year |
| BASE COMPRESSOR WARRANTY | 2 Years |
| HAS BATTERIES | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 7.36 |
| NET HEIGHT (IN) | 11.42 |
| NET WIDTH (IN) | 28.43 |
| NET WEIGHT (LBS) | 16.98 |
| GROSS DEPTH (IN) | 10.63 |
| GROSS HEIGHT (IN) | 14.76 |
| GROSS WIDTH (IN) | 31.1 |
| GROSS WEIGHT (LBS) | 22.27 |
Resources & Manuals
