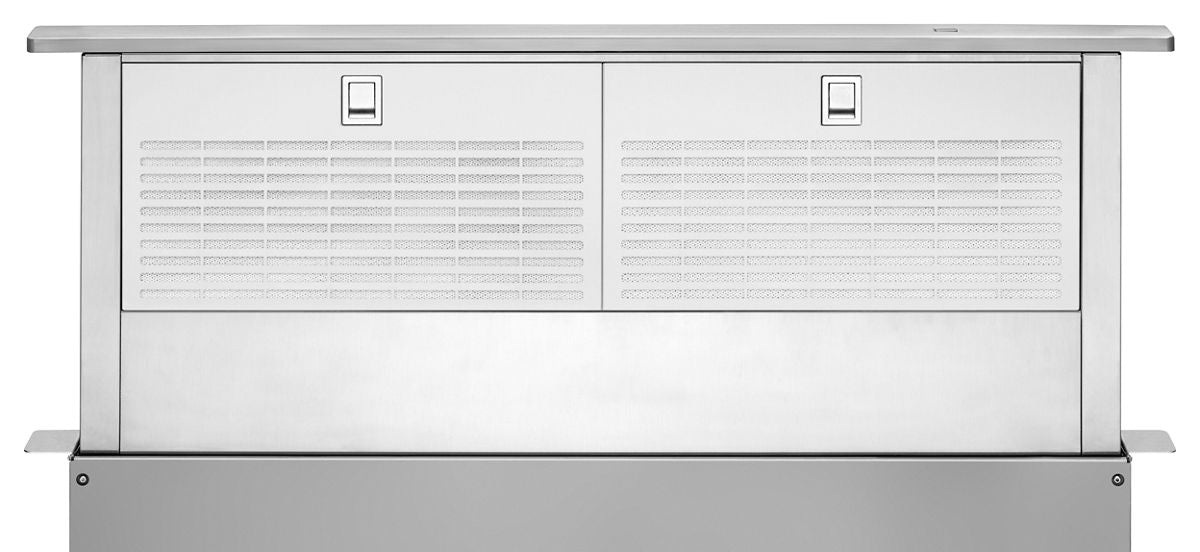

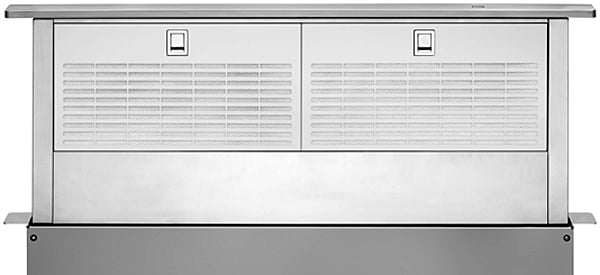

Amana® UXD8636DYS – 36" Retractable Downdraft System with Interior Blower Motor

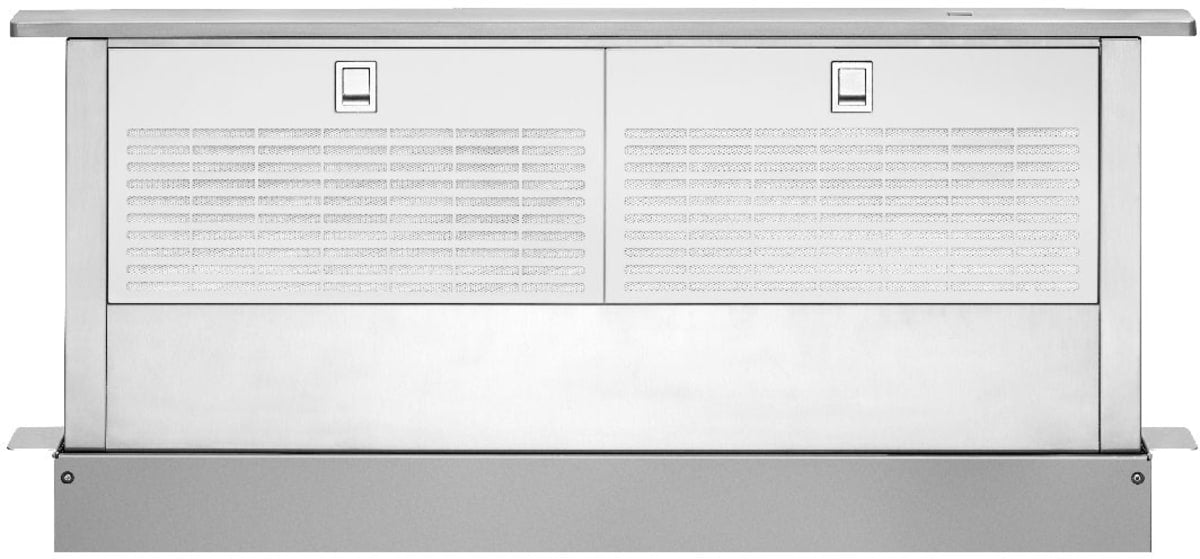

Retractable downdraft systems remain flush with the cooktop surface until needed. A reversible motor box can be installed on either side of the downdraft, freeing up space beneath the cabinet. The 14-inch rise allows for greater smoke and steam capture.
Key Features
- Powerful 600 CFM Interior Blower Motor Included – strong ventilation is built in, with no separate blower to purchase.
- Touch-Activated Telescoping Operation – the vent rises when you need it and lowers flush with the countertop when you do not.
- Dual Centrifugal Blower – a barrel-shaped fan that moves more air and runs more quietly than a bladed axial fan.
- 6.5 Vertical Sones – measured with 3¼" x 10" rectangular vertical ducting.
- Auto Off When Retracted – the blower shuts off automatically as the vent lowers.
- Reversible Motor Box – mount the motor box on either side of the downdraft to free up cabinet space.
- Back Draft Damper Supplied – included in the box for the vent transition.
Specifications
| Model | UXD8636DYS |
| Brand | Amana |
| Finish | Stainless Steel |
| Type | Retractable (pop-up) downdraft vent system, ducted |
| Blower | Interior mounted, reversible motor box – 600 CFM |
| Noise Level | 6.5 vertical sones (3¼" x 10" duct) |
| Top Trim Width | 36" (91.4 cm) |
| Retractable Vent Height | 13½" (34.3 cm) rise above countertop |
| Body Height | 28½" (72.4 cm) |
| Depth | 13⅛" (33.4 cm) |
| Cabinet Requirement | Designed for a cabinet 24" (61 cm) deep; overhead cabinets max 13" (33 cm) deep |
| Ducting | 3¼" x 10" (8.3 x 25.4 cm) rectangular or 6" (15.2 cm) round; must terminate outdoors |
| Maximum Vent Run | 35 ft (8.9 m) |
| Electrical | 120 V, 60 Hz, AC only, 15-amp fused circuit; grounded outlet required |
| Installation | Installed directly behind the cooktop; install downdraft vent first, then cooktop |
| Warranty | 1 year limited |
Specifications sourced from Amana (amana.com) and Amana dimension guide W10342491. Because Whirlpool Corporation policy includes a continuous commitment to improve its products, materials and specifications are subject to change without notice.
