MRCOOL SKU: DIY-09-HP-C-115D25-O

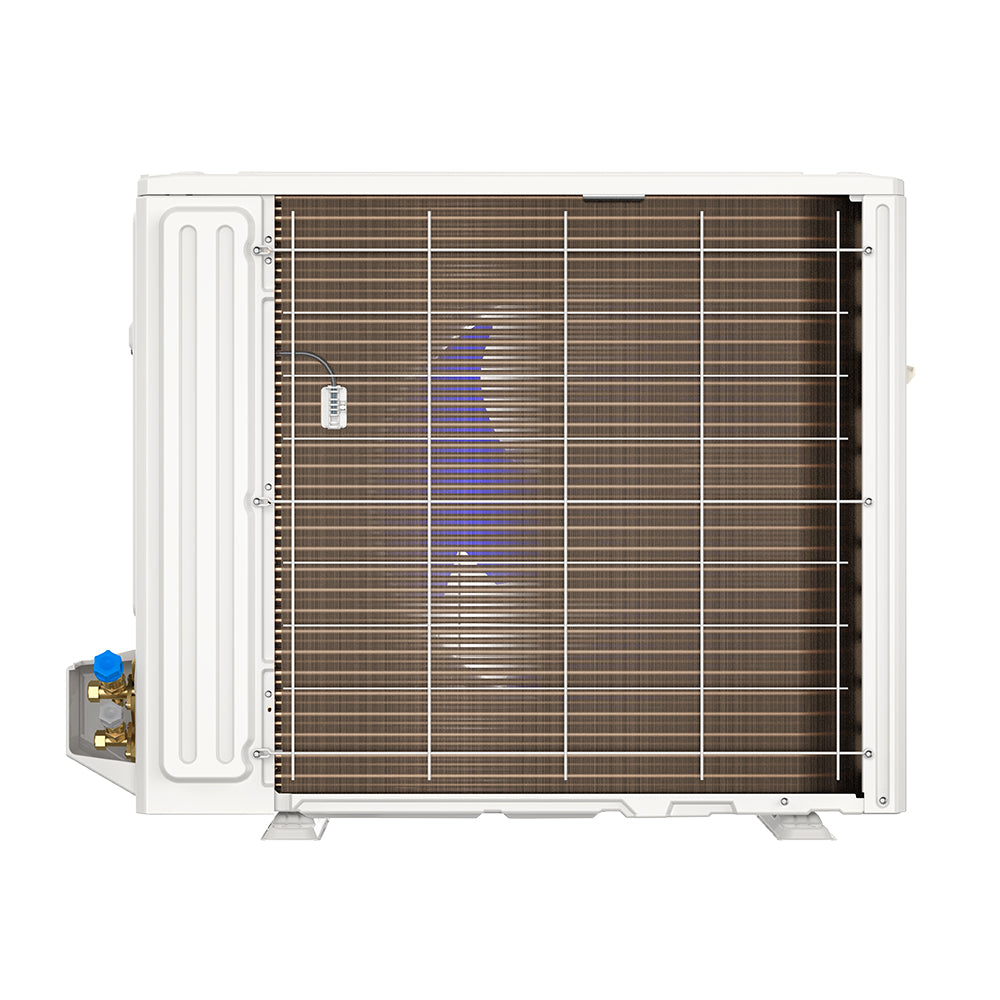

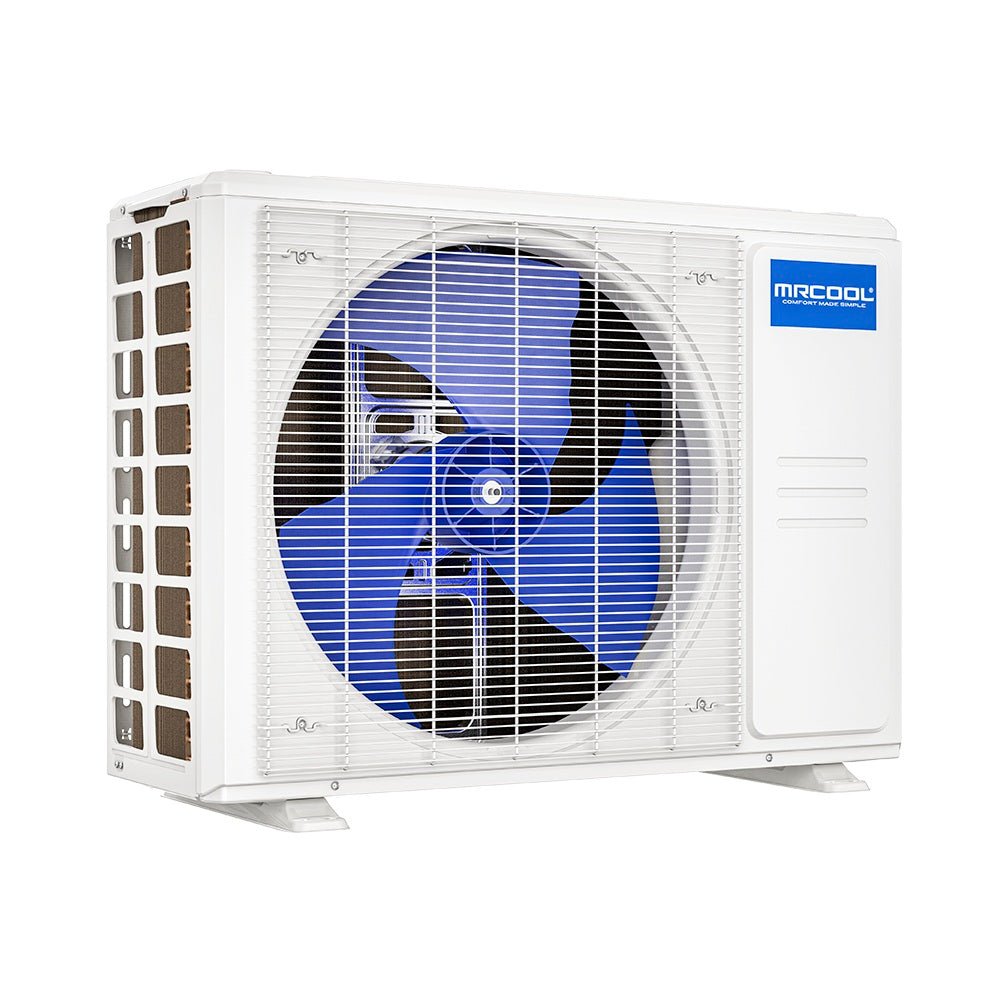

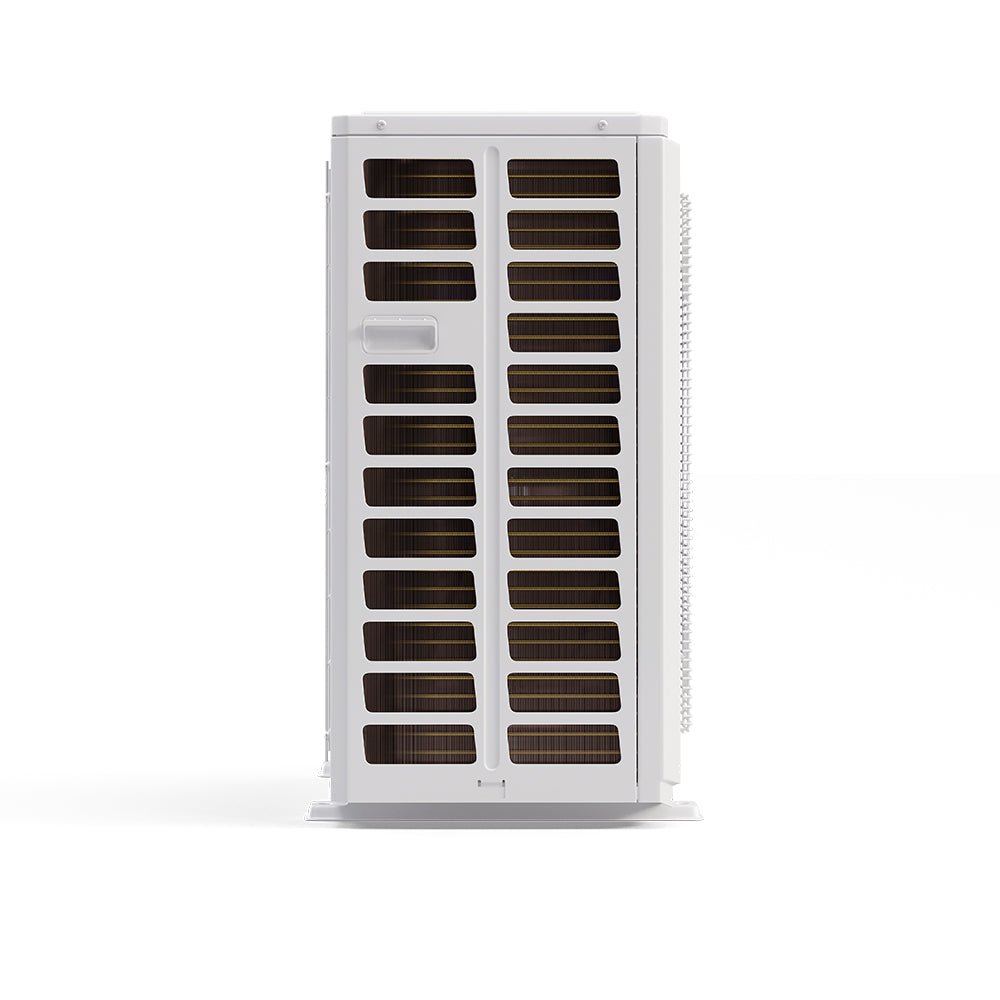

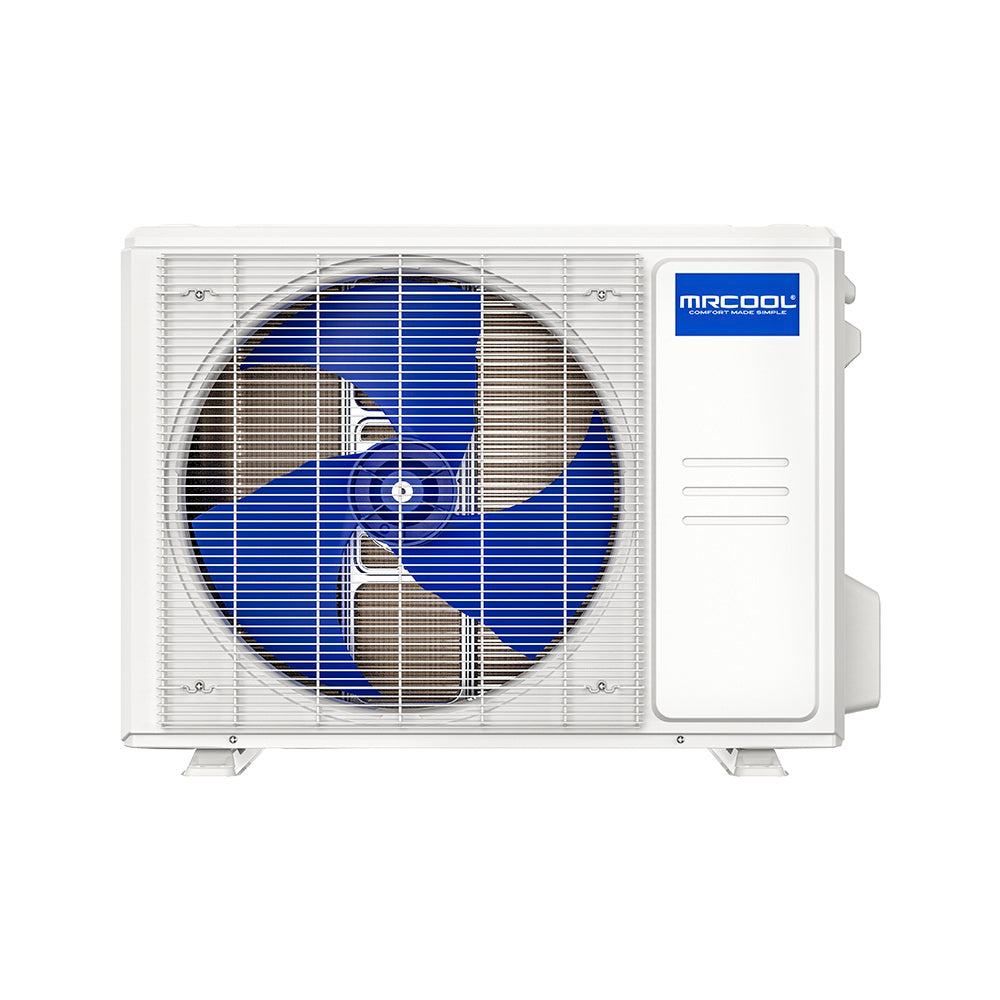

MRCOOL® 9k DIY 5th Generation Mini-Split Condenser 115v
$132.00 /mo with 12-month special financing (0% APR). Add to cart & apply at checkout. Learn more! Your estimated monthly payment is calculated based on your approved financing terms. Please review the payment terms and conditions.
Additional Discounts in Checkout!
-
Bulk-Buy Discount
Need Large Bulk?
If you need more than 25+ quantity, contact us now for additional discounts.
Installation and Removal
Where will services be needed?
Inner Circle Access
Pro+ Builder Access ( Apply )
Invitation to exclusive events
Get Access to
Get Access to Bulk Price Levels
Installing an HVAC system yourself might seem impossible, but the 5th Generation MRCOOL® DIY® 9k BTU 23.6 SEER Ductless Heat Pump Single Zone Mini-Split Condenser is designed for exactly that. With no special tools or experience required, this system can heat or cool spaces up to 350 sq. ft. The pre-charged 25-foot Quick Connect® line set makes installation safe, simple, and cost-effective. Pre-filled with R-454B refrigerant, it eliminates the demand for vacuuming. You can control the system using the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. Additionally, with the Follow Me® feature, the system tracks the temperature near your remote, helping maintain your ideal comfort level. For coastal homes, the Gold Fin® condenser coating provides superior corrosion resistance, ensuring long-lasting performance. This system offers multiple modes and features to enhance comfort and efficiency. Using your wireless remote, you can access the Timer function that helps reduce energy use and the Auto mode, which maintains your set temperature effortlessly. After a power outage, the system automatically restores previous settings. Once the unit is installed, you can take advantage of many additional features designed to enhance your comfort and efficiency. Backed by an industry-leading warranty, this system offers a base warranty that includes 7-year compressor/5-year parts coverage, along with eligibility for the MRCOOL® Care Program. With innovative technology, easy installation, and reliable performance, this system is built to deliver comfort and peace of mind.
Features
- Intertek listed 5031495 Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Specifications
| SEER2 | 23.6 |
| EER2 | 14 |
| HSPF2-4 | 11.5 |
| HSPF2-5 | 8.6 |
| TONNAGE | 0.75 |
| COOLING CAPACITY (BTU) | 9000 |
| HEATING CAPACITY (BTU) | 10000 |
| VOLTAGE (V) | 115 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 18 |
| COLOR | White |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 30.34 |
| DECIBEL RATING (DBA) | 54 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 82 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 11.93 |
| NET HEIGHT (IN) | 21.85 |
| NET WIDTH (IN) | 30.12 |
| NET WEIGHT (LBS) | 65.48 |
| GROSS DEPTH (IN) | 16.54 |
| GROSS HEIGHT (IN) | 27.56 |
| GROSS WIDTH (IN) | 36.22 |
| GROSS WEIGHT (LBS) | 83.11 |
