MRCOOL SKU: DIY-36-HP-C-230D25-O

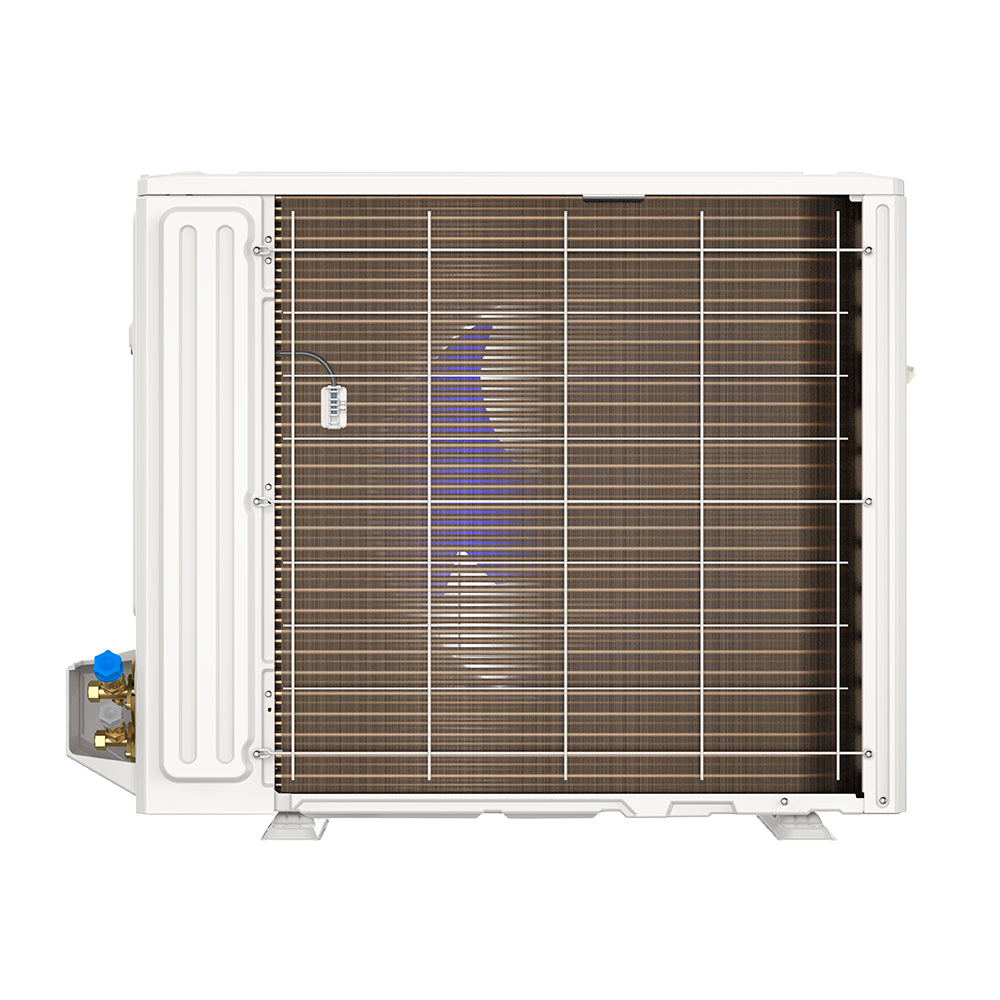

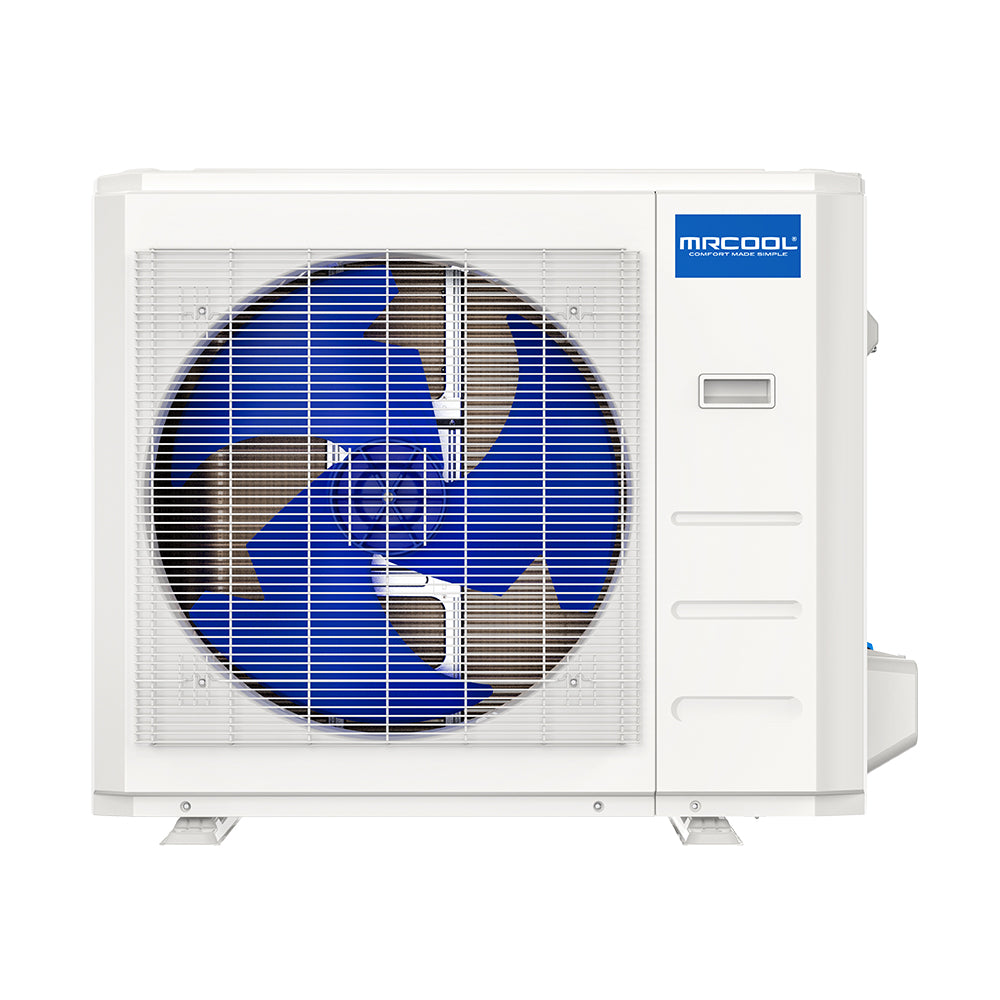

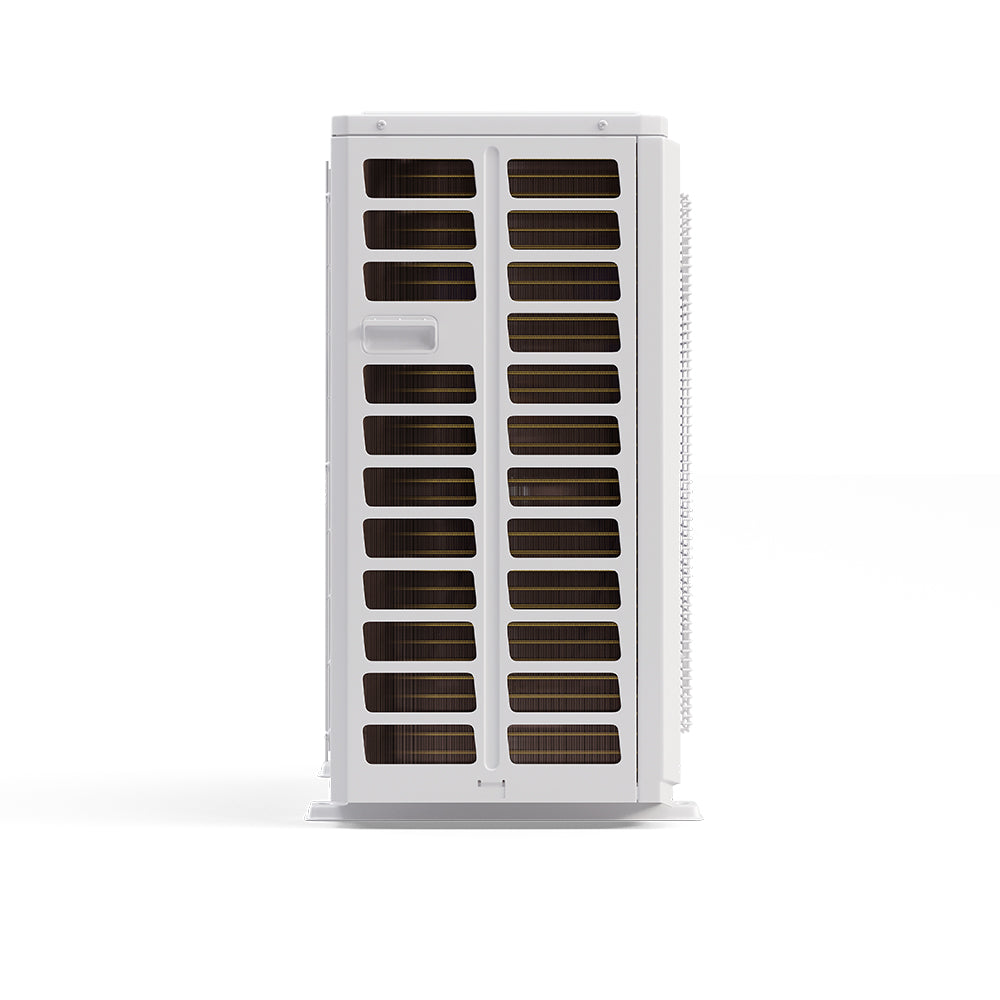

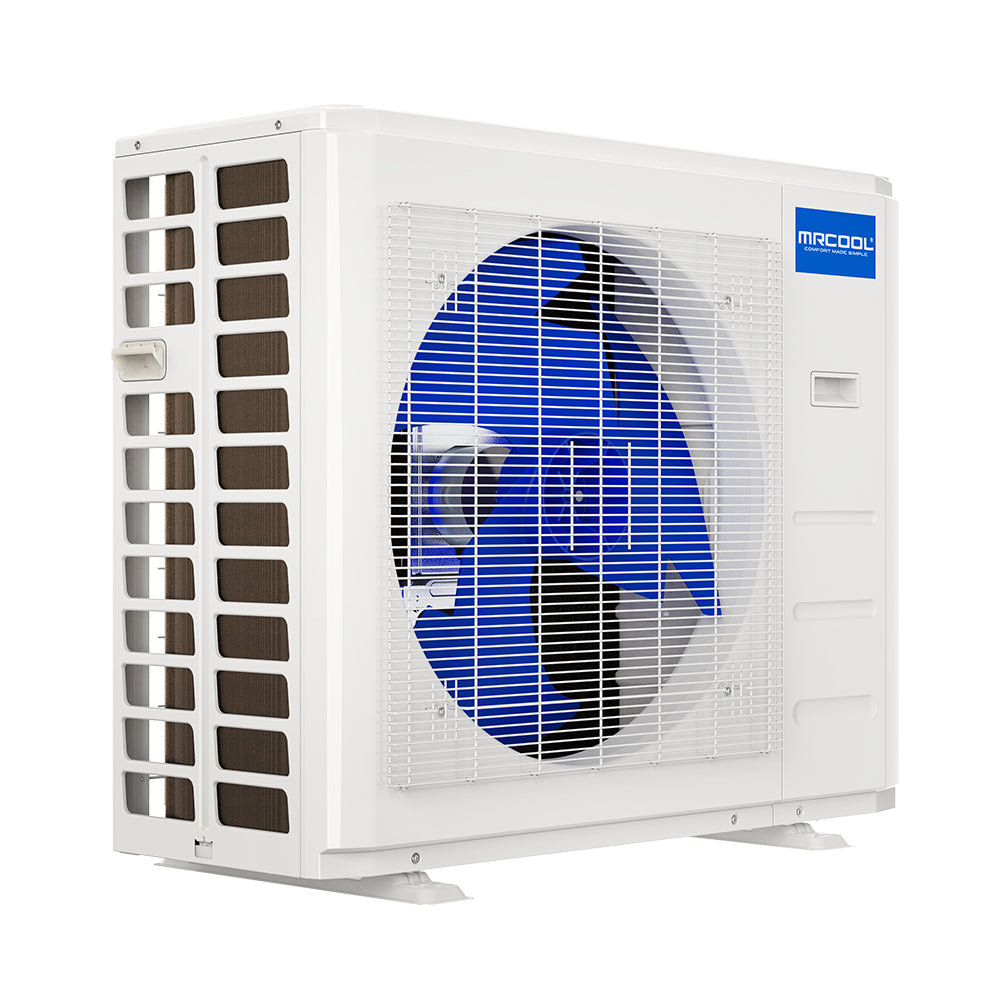

MRCOOL® 36k DIY 5th Generation Mini-Split Condenser 230v
$207.33 /mo with 12-month special financing (0% APR). Add to cart & apply at checkout. Learn more! Your estimated monthly payment is calculated based on your approved financing terms. Please review the payment terms and conditions.
Additional Discounts in Checkout!
-
Bulk-Buy Discount
Need Large Bulk?
If you need more than 25+ quantity, contact us now for additional discounts.
Installation and Removal
Where will services be needed?
Inner Circle Access
Pro+ Builder Access ( Apply )
Invitation to exclusive events
Get Access to
Get Access to Bulk Price Levels
Installing an HVAC system may seem like a job for professionals, but the 5th Generation MRCOOL® DIY® 36k BTU 18 SEER Ductless Heat Pump Single Zone Mini Split Condenser is specifically designed for homeowners. Ideal for rooms between 1,000 and 1,500 sq. ft., this unit delivers efficient heating and cooling without the need for specialized tools or training. The system includes a 25-foot Quick Connect® line set pre-charged with R-454B refrigerant to eliminate the need for vacuuming. Whether you're a seasoned DIYer or a first-timer, setup is straightforward and safe. Control options are flexible and convenient. Use the included remote, access the SmartHVAC app from your smartphone, or manage the unit hands-free with Alexa or Google Assistant. The Follow Me® feature enhances comfort by monitoring the temperature around the remote and adjusting the system accordingly. The Gold Fin® condenser coating is corrosion-resistant, making this unit a great choice for coastal environments. Multiple operating modes—including Auto, Sleep, and Timer—help maximize comfort while reducing energy use. Additionally, this system boasts an automatic restart feature designed to retain previous settings and continue seamless operation following a power outage. The 5th Generation MRCOOL® DIY® 9k BTU 23.6 SEER Ductless Heat Pump Single Zone Mini-Split Condenser is protected by one of the strongest warranties in the industry with a 7-year compressor warranty and a 5-year parts warranty, and is MRCOOL® Care Program-Eligible. Combining cutting-edge technology, straightforward DIY installation, and dependable performance, this system offers a worry-free solution for year-round comfort.
Features
- NEEP ccASHP Listed Intertek listed 5031495 Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Specifications
| SEER2 | 18 |
| EER2 | 8.5 |
| HSPF2-4 | 8.5 |
| HSPF2-5 | 6.5 |
| TONNAGE | 3 |
| COOLING CAPACITY (BTU) | 36000 |
| HEATING CAPACITY (BTU) | 36000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 35 |
| MIN CIRCUIT AMPACITY (A) | 33 |
| COLOR | White |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 109.7 |
| DECIBEL RATING (DBA) | 60.5 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 213.2 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 5/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.14 |
| NET HEIGHT (IN) | 31.89 |
| NET WIDTH (IN) | 37.24 |
| NET WEIGHT (LBS) | 152.12 |
| GROSS DEPTH (IN) | 19.88 |
| GROSS HEIGHT (IN) | 37.01 |
| GROSS WIDTH (IN) | 42.91 |
| GROSS WEIGHT (LBS) | 183.42 |
