MRCOOL SKU: DIY-MULTI3-18HP230D-O

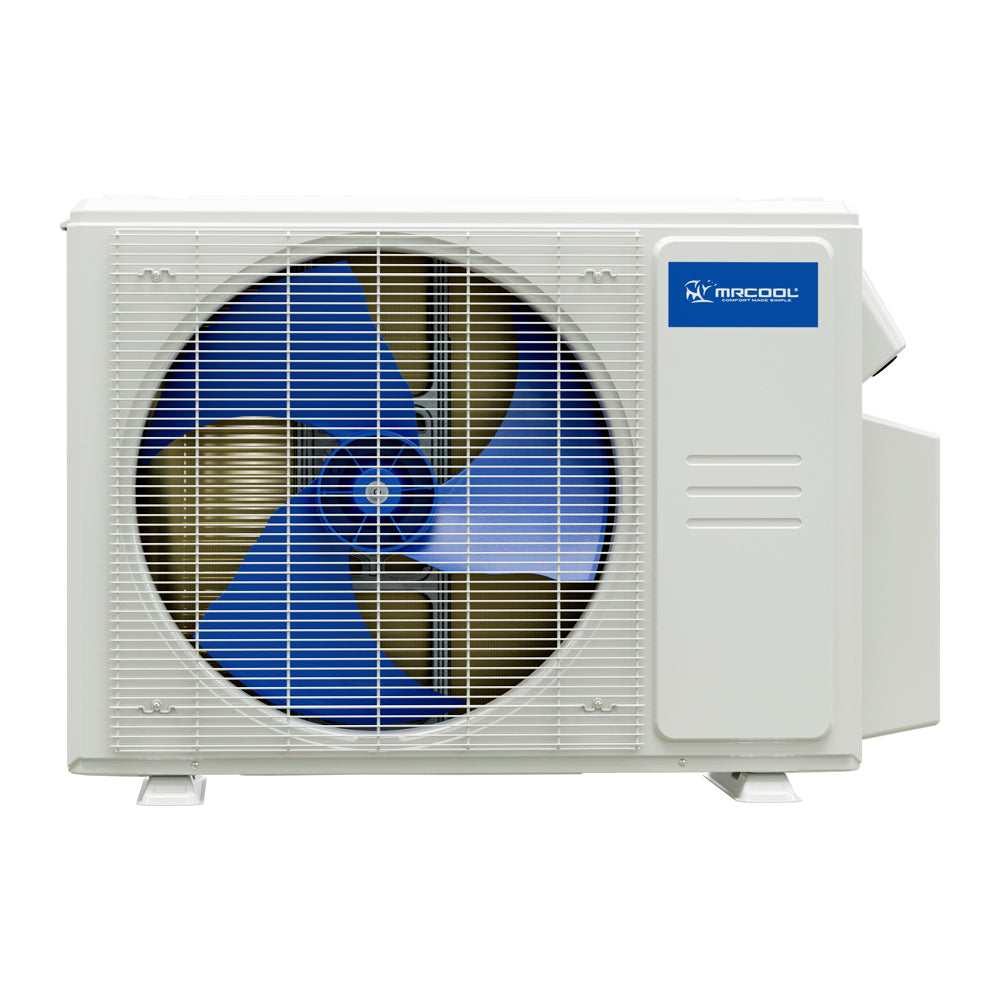

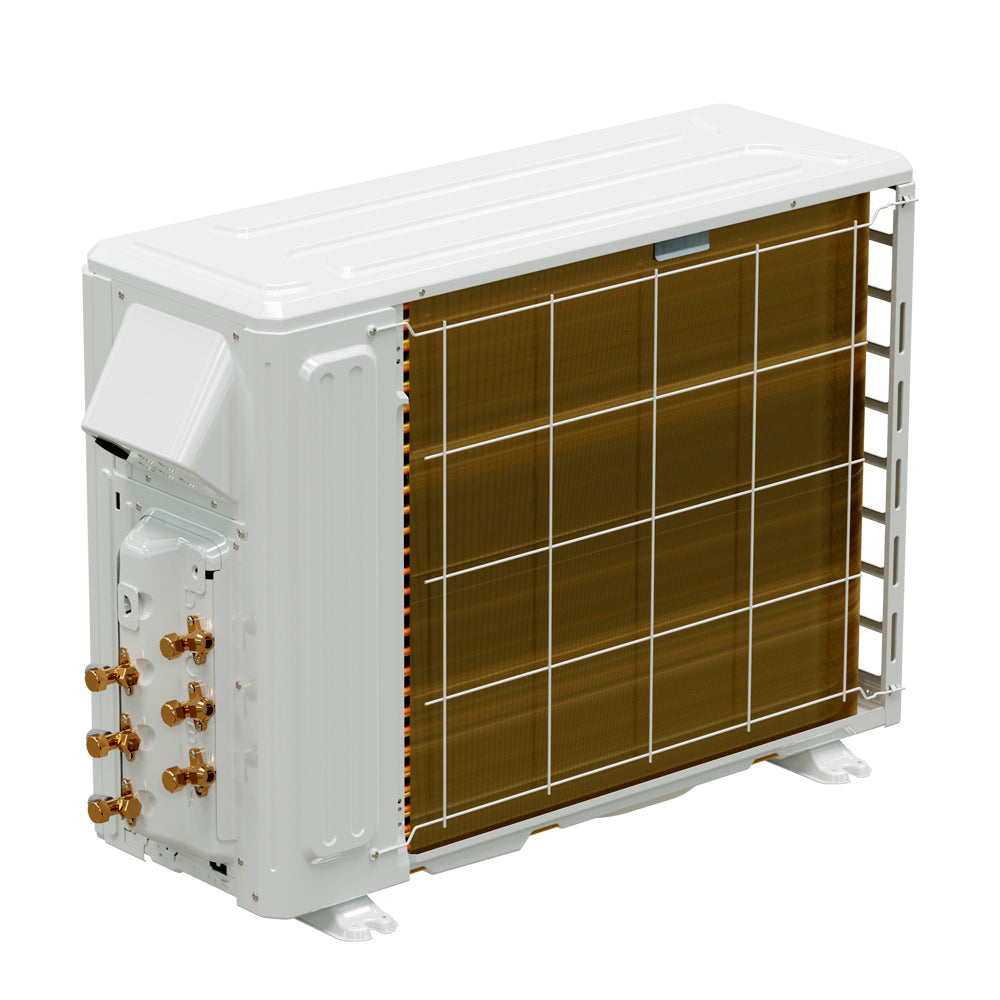

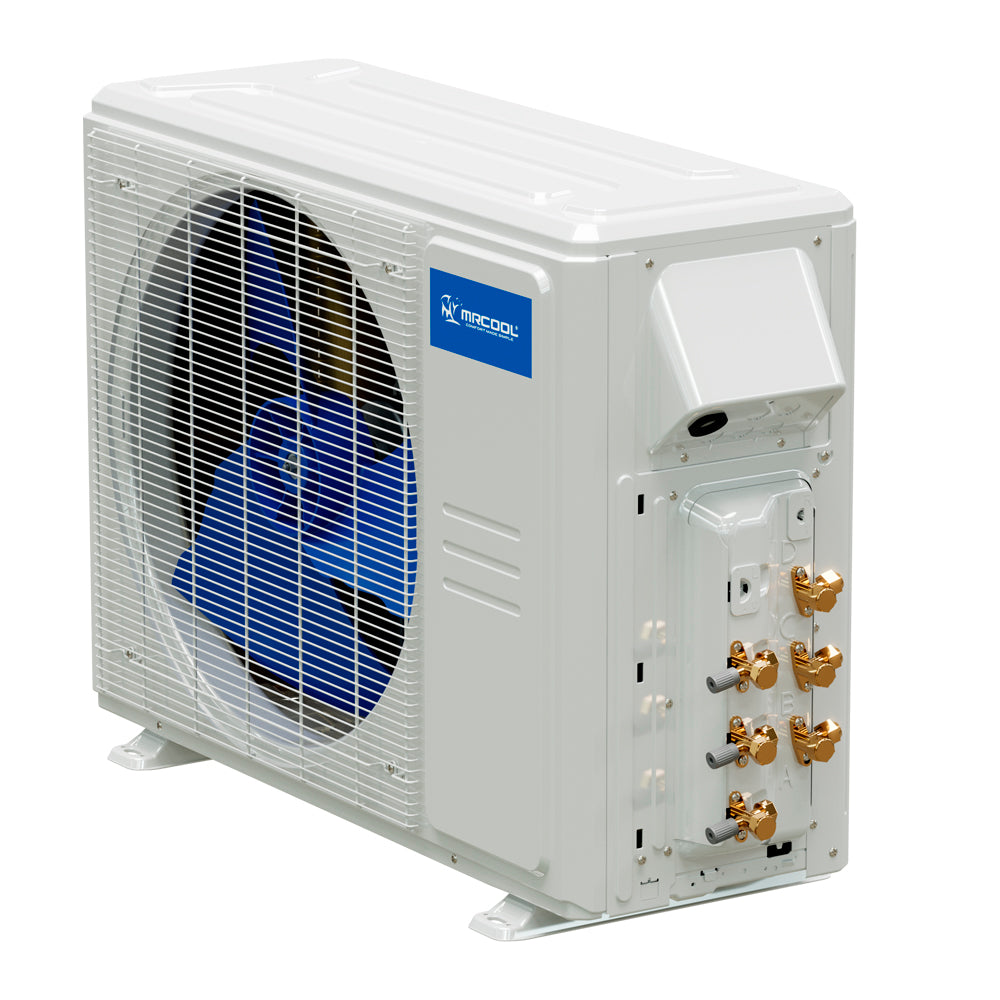

MRCOOL® 18k DIY 5th Generation 3 Zone Multi-Zone Mini-Split Condenser 230v
MRCOOL® 18k DIY 5th Generation 3 Zone Multi-Zone Mini-Split Condenser 230v
$129.58 /mo with 12-month special financing (0% APR). Add to cart & apply at checkout. Learn more! Your estimated monthly payment is calculated based on your approved financing terms. Please review the payment terms and conditions.
Additional Discounts in Checkout!
-
Bulk-Buy Discount
Need Large Bulk?
If you need more than 25+ quantity, contact us now for additional discounts.
Installation and Removal
Where will services be needed?
Inner Circle Access
Pro+ Builder Access ( Apply )
Invitation to exclusive events
Get Access to
Get Access to Bulk Price Levels
We’re excited to introduce the 5th Generation MRCOOL® DIY® 18k BTU Multi-Zone Ductless Mini-Split Condenser—our most advanced and convenient comfort solution yet. Designed for true do-it-yourself installation, this system eliminates the need for an HVAC professional. With an impressive SEER2 rating of 23.9 and HSPF2-4 rating of 10, it delivers energy savings while keeping your home comfortable year-round. This condenser can support up to three air handlers and heat or cool a combined space of up to 750 square feet—ideal for spare bedrooms, home offices, or small apartments. At the core of its simplicity is our patented pre-charged Quick Connect® line set, now filled with R-454B, a high-efficiency, environmentally friendly refrigerant. This system is designed to be sustainable, user-friendly, and cost-effective. Smart home compatibility is built in. With the Smart HVAC app, Amazon Alexa, or Google Home, you can manage temperature settings, set custom schedules, and monitor performance with ease—from anywhere, at any time. Total climate control is just a tap or voice command away. Every DIY® condenser comes backed with exceptional peace of mind. Backed by a 7-year compressor and 5-year parts warranty, the MRCOOL® DIY® 18K system offers dependable protection, with included eligibility for the MRCOOL® Care Program. With unmatched efficiency, eco-friendly design, and DIY simplicity, the MRCOOL® DIY® 5th Gen 18k BTU Multi-Zone system is the ultimate choice for personalized comfort.
Features
- Intertek listed 5031495 Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Specifications
| SEER2 | 23.9 |
| EER2 | 13 |
| HSPF2-4 | 10 |
| HSPF2-5 | 7.8 |
| TONNAGE | 1.5 |
| COOLING CAPACITY (BTU) | 18000 |
| HEATING CAPACITY (BTU) | 18000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 16 |
| COLOR | White |
| ZONE CAPACITY | 3 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 61.73 |
| DECIBEL RATING (DBA) | 60 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 172.2 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 13.46 |
| NET HEIGHT (IN) | 26.5 |
| NET WIDTH (IN) | 35.04 |
| NET WEIGHT (LBS) | 101.63 |
| GROSS DEPTH (IN) | 17.24 |
| GROSS HEIGHT (IN) | 29.53 |
| GROSS WIDTH (IN) | 40.55 |
| GROSS WEIGHT (LBS) | 109.57 |
Resources & Manuals
