MRCOOL SKU: DIY-MULTI4-27HP230D-O

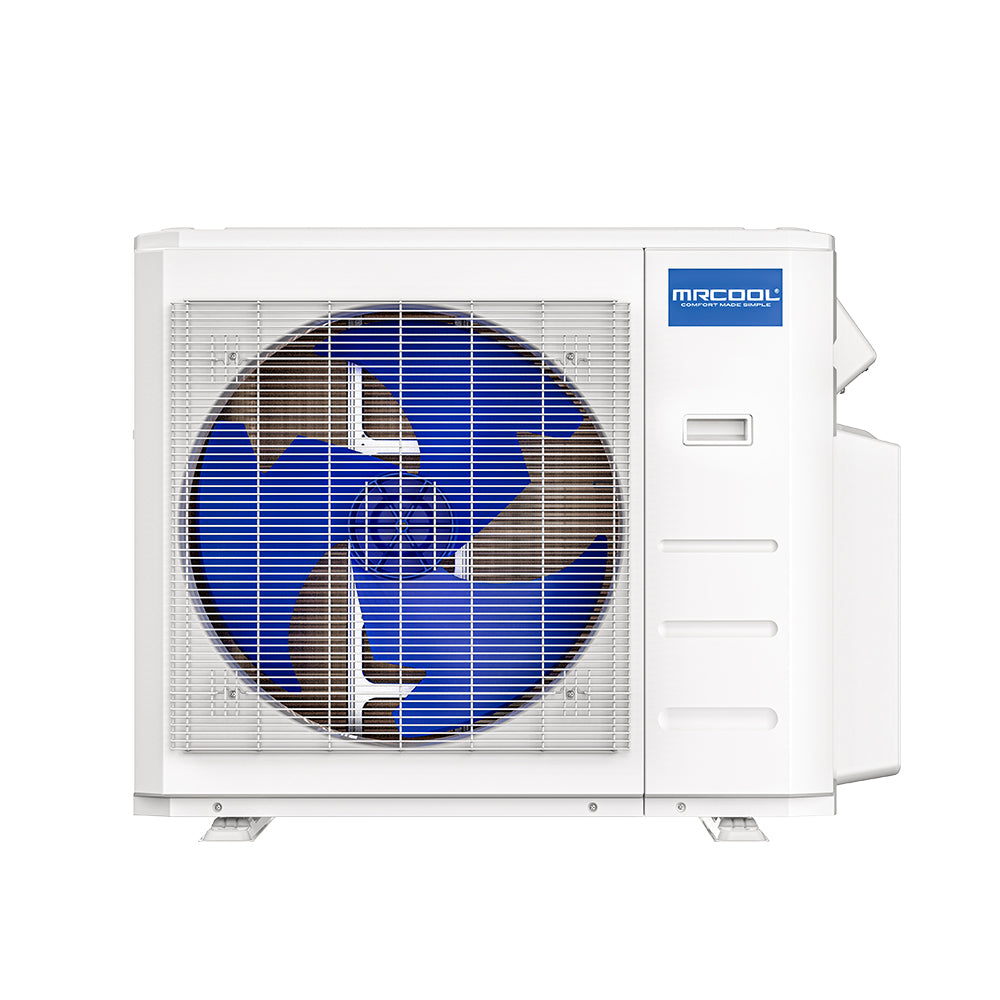

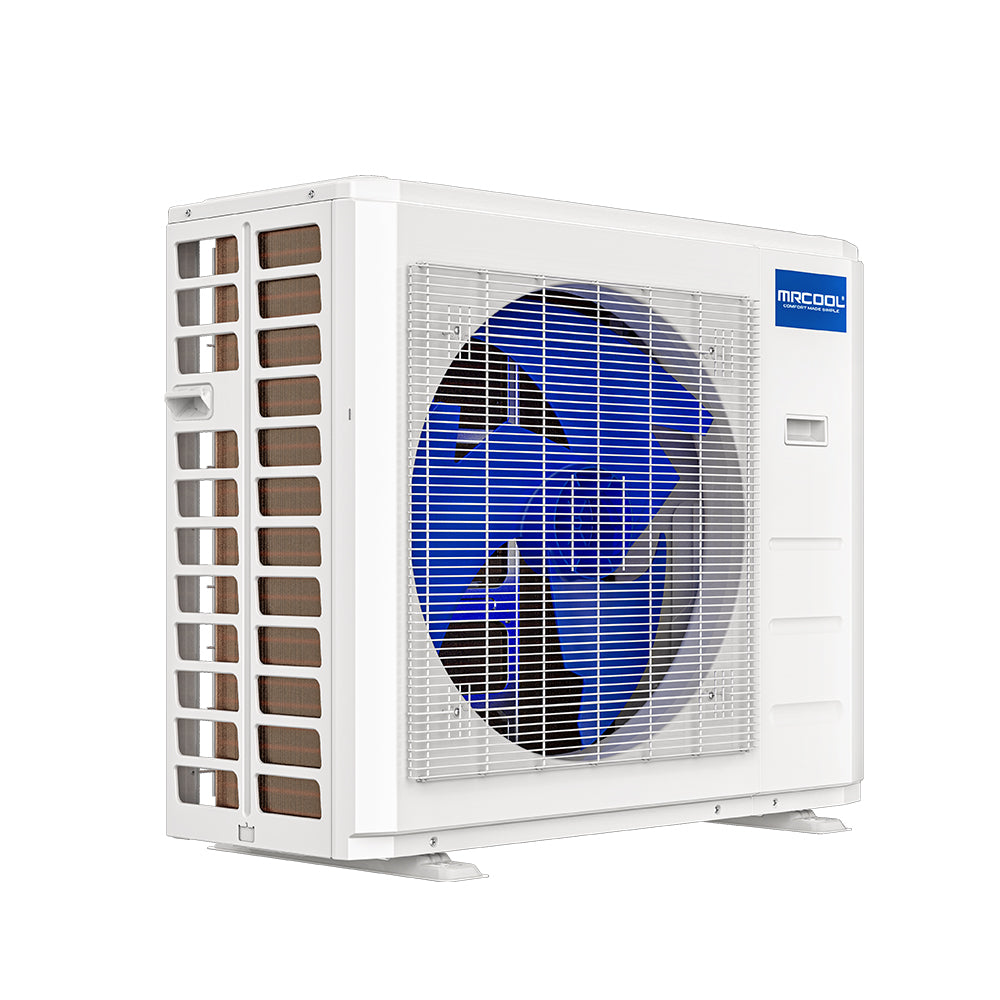

MRCOOL® 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v
MRCOOL® 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v
$175.00 /mo with 12-month special financing (0% APR). Add to cart & apply at checkout. Learn more! Your estimated monthly payment is calculated based on your approved financing terms. Please review the payment terms and conditions.
Additional Discounts in Checkout!
-
Bulk-Buy Discount
Need Large Bulk?
If you need more than 25+ quantity, contact us now for additional discounts.
Installation and Removal
Where will services be needed?
Inner Circle Access
Pro+ Builder Access ( Apply )
Invitation to exclusive events
Get Access to
Get Access to Bulk Price Levels
Experience unmatched comfort and control with the new 5th Generation MRCOOL® DIY® 27k BTU Multi-Zone Ductless Mini-Split Condenser. As the name suggests, this unit is truly DIY—no HVAC professional required. With high efficiency ratings of SEER2 23 and HSPF2-4 9.5, this system helps you save on both installation and long-term energy costs. Designed to support up to four air handlers, this condenser can heat and cool multiple rooms—up to 1,200 square feet in total. It's the perfect solution for homeowners looking to bring comfort to several zones without running ductwork. This generation features our patented Quick Connect® line sets, pre-charged with R-454B refrigerant. R-454B is a next-generation, eco-friendly option that enhances efficiency and sustainability. These line sets simplify installation by connecting directly to the condenser and air handlers—no special tools or training needed. Once installed, the smart capabilities of this system truly shine. Use the SmartHVAC app to monitor and adjust your system from anywhere, or integrate it with Amazon Alexa or Google Home to control your comfort with voice commands. Set custom schedules, fine-tune temperatures, and track energy usage with ease. For added peace of mind, every unit is backed by one of the industry's strongest warranties: 5 years on parts, 7 years on the compressor, and eligibility for the MRCOOL® Care Program. With smart technology, eco-conscious design, and true DIY installation, the MRCOOL® DIY® 27k BTU Multi-Zone system is built to meet your comfort on your terms.
Features
- Intertek listed 5031495 Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Specifications
| SEER2 | 23 |
| EER2 | 12 |
| HSPF2-4 | 9.5 |
| HSPF2-5 | 7 |
| TONNAGE | 2.25 |
| COOLING CAPACITY (BTU) | 26000 |
| HEATING CAPACITY (BTU) | 26000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 25 |
| MIN CIRCUIT AMPACITY (A) | 23 |
| COLOR | White |
| ZONE CAPACITY | 4 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 84.66 |
| DECIBEL RATING (DBA) | 61 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.14 |
| NET HEIGHT (IN) | 31.89 |
| NET WIDTH (IN) | 37.24 |
| NET WEIGHT (LBS) | 140.21 |
| GROSS DEPTH (IN) | 19.69 |
| GROSS HEIGHT (IN) | 34.84 |
| GROSS WIDTH (IN) | 42.91 |
| GROSS WEIGHT (LBS) | 151.02 |
