MRCOOL SKU: DIY-MULTI5-36HP230D-O

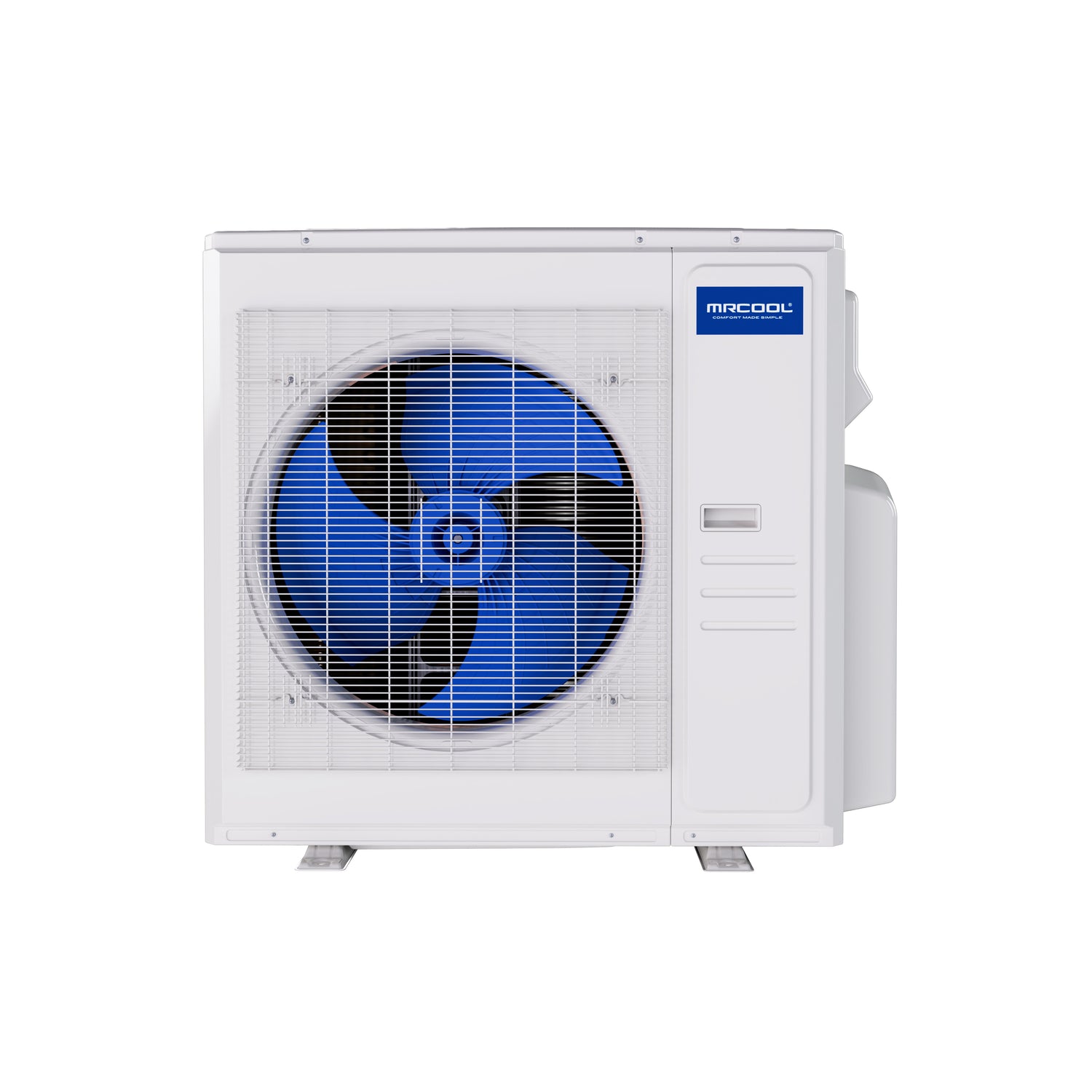

MRCOOL® 36k DIY 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v
MRCOOL® 36k DIY 5th Generation 5 Zone Multi-Zone Mini-Split Condenser 230v
$211.92 /mo with 12-month special financing (0% APR). Add to cart & apply at checkout. Learn more! Your estimated monthly payment is calculated based on your approved financing terms. Please review the payment terms and conditions.
Additional Discounts in Checkout!
-
Bulk-Buy Discount
Need Large Bulk?
If you need more than 25+ quantity, contact us now for additional discounts.
Installation and Removal
Where will services be needed?
Inner Circle Access
Pro+ Builder Access ( Apply )
Invitation to exclusive events
Get Access to
Get Access to Bulk Price Levels
Introducing the 5th Generation MRCOOL® DIY® 36k BTU Multi-Zone Ductless Mini-Split Condenser—your ultimate solution for efficient, whole-home comfort without the need for professional installation. This powerful system supports up to five air handlers and can heat and cool approximately 1,500 square feet, making it a perfect fit for larger homes or multiple zones. Designed with true DIY ease in mind, this system features our patented Quick Connect® line sets, pre-charged with R-454B—a next-generation refrigerant that’s more efficient and environmentally friendly than R-410A. Because of this technology, there's no need for vacuuming or charging, which saves time, money, and hassle. With a SEER2 rating of 23 and HSPF2-4 rating of 9.9, you’ll also enjoy exceptional energy savings year-round. Once installed, control is right at your fingertips. Use the SmartHVAC app to adjust temperatures, set zone-specific schedules, monitor energy use, and more—from anywhere. For hands-free convenience, integrate the system with Amazon Alexa or Google Home and manage your comfort using simple voice commands. Each zone operates independently, giving you full control over your environment. To ensure lasting peace of mind, the MRCOOL® DIY® 36k BTU system is backed by a 5-year parts warranty and a 7-year compressor warranty. This system is also eligible for the MRCOOL® Care Program. Whether you’re upgrading your entire home or just want more control, the MRCOOL® DIY® delivers industry-leading performance with unmatched DIY simplicity.
Features
- Intertek listed 5031495 Easy DIY installation Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit. Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort. The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
Specifications
| SEER2 | 23 |
| EER2 | 12 |
| HSPF2-4 | 9.9 |
| HSPF2-5 | 7.5 |
| TONNAGE | 3 |
| COOLING CAPACITY (BTU) | 34000 |
| HEATING CAPACITY (BTU) | 36000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 35 |
| MIN CIRCUIT AMPACITY (A) | 30.5 |
| COLOR | White |
| ZONE CAPACITY | 5 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 104.75 |
| DECIBEL RATING (DBA) | 64 |
| INVERTER | DC |
| LINE SET LENGTH | 25 |
| MAX LINESET LENGTH (FT) | 221.4 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | (3/8 X4) (1/2 X1) |
| COMPRESSOR MOTOR TYPE | Rotary |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | No |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| UL LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| BASE PARTS WARRANTY | 5 |
| BASE COMPRESSOR WARRANTY | 7 |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 16.14 |
| NET HEIGHT (IN) | 31.89 |
| NET WIDTH (IN) | 37.24 |
| NET WEIGHT (LBS) | 169.24 |
| GROSS DEPTH (IN) | 19.69 |
| GROSS HEIGHT (IN) | 34.84 |
| GROSS WIDTH (IN) | 42.91 |
| GROSS WEIGHT (LBS) | 181.88 |
Resources & Manuals
