MRCOOL SKU: DIYCASSETTE06HP-230D25-O

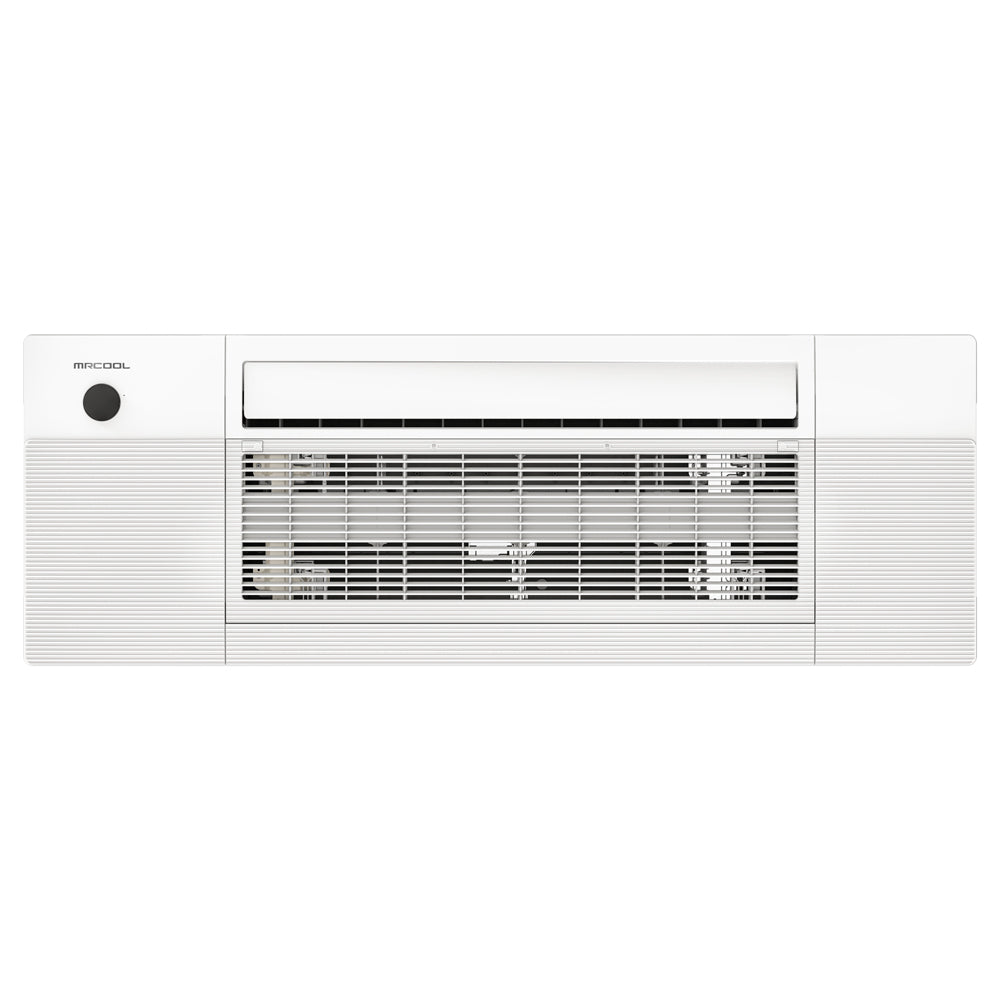

MRCOOL® DIY® Series 5th Gen OuttaSight® 6K BTU 230V One-Way Ceiling Cassette
MRCOOL® DIY® Series 5th Gen OuttaSight® 6K BTU 230V One-Way Ceiling Cassette
$109.33 /mo with 12-month special financing (0% APR). Add to cart & apply at checkout. Learn more! Your estimated monthly payment is calculated based on your approved financing terms. Please review the payment terms and conditions.
Additional Discounts in Checkout!
-
Bulk-Buy Discount
Need Large Bulk?
If you need more than 25+ quantity, contact us now for additional discounts.
Installation and Removal
Where will services be needed?
Inner Circle Access
Pro+ Builder Access ( Apply )
Invitation to exclusive events
Get Access to
Get Access to Bulk Price Levels
The 5th Generation MRCOOL® DIY® Series Outtasight® 6K BTU 230V One-Way Ceiling Cassette is a powerful and efficient climate control solution for spaces up to 200 sq. ft. Engineered for easy DIY installation, this system eliminates the need for specialized tools, making setup simple, cost-effective, and hassle-free. Designed to integrate seamlessly into multi-zone configurations, the cassette fits neatly between 16” ceiling joists, including pre-manufactured I-joists, for a clean, flush-mounted appearance. Unlike traditional ceiling cassettes that require extensive ductwork or inconvenient wall space, rethis unit offers a flexible installation ideal for both new builds and retrofit projects. The cassette pairs effortlessly with the MRCOOL® DIY® Quick Connect® line set, which comes pre-charged with R-454B, an environmentally friendly refrigerant that eliminates the need for vacuuming. Advanced filtration enhances indoor air quality, while the Elevation function allows easy filter maintenance by lowering the panel for convenient access. With quiet operation and multiple control options—including a wireless remote, SmartHVAC app, and voice commands via Amazon Alexa and Google Assistant—this system offers personalized comfort. Backed by a 7-year compressor and 5-year parts warranty, with eligibility for the MRCOOL® Care Program, the MRCOOL® DIY® Outtasight® Ceiling Cassette delivers long-term reliability, advanced technology, and year-round comfort.
Features
- Low Profile Installation Fits between 16" Ceiling Joists Works with Multi and Single Zone Systems Two-Stage DC motor Quiet Operation Multiple Operating Modes Remote Included Advanced Filtration Swing Technology
Specifications
| UNIT TYPE | Mini-Split |
| WORKS WITH | DIY 5th Gen Systems |
| CFM | 341 / 294 / 259 / 235 / 235 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Ceiling |
| COLOR | White |
| RATED LOAD | 0.8 |
| MAX COVERAGE AREA | 200 |
| REFRIGERANT TYPE | R-454B |
| DECIBEL RATING (DBA) | 35.5 |
| DECIBEL RATING LOW (DBA) | 23.5 |
| DECIBEL RATING HIGH (DBA) | 46.5 |
| AIR FLOW DIRECTION | 1-Way |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| BLOWER MOTOR RPM | 1024/944/784 |
| FILTER TYPE | Reusable |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| SLEEP MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| BASE WARRANTY | 5-Year Part/7-Year Compressor |
| BASE PARTS WARRANTY | 5 Years |
| BASE COMPRESSOR WARRANTY | 7 Years |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| RESTRICTED STATES | GU;PR;VI |
| NET DEPTH (IN) | 13.19 |
| NET HEIGHT (IN) | 8.98 |
| NET WIDTH (IN) | 50.31 |
| NET WEIGHT (LBS) | 45 |
| GROSS DEPTH (IN) | 22.48 |
| GROSS HEIGHT (IN) | 22.64 |
| GROSS WIDTH (IN) | 57.6 |
| GROSS WEIGHT (LBS) | 88 |
Resources & Manuals
