MRCOOL SKU: DIYCASSETTE09HP-230D25-O

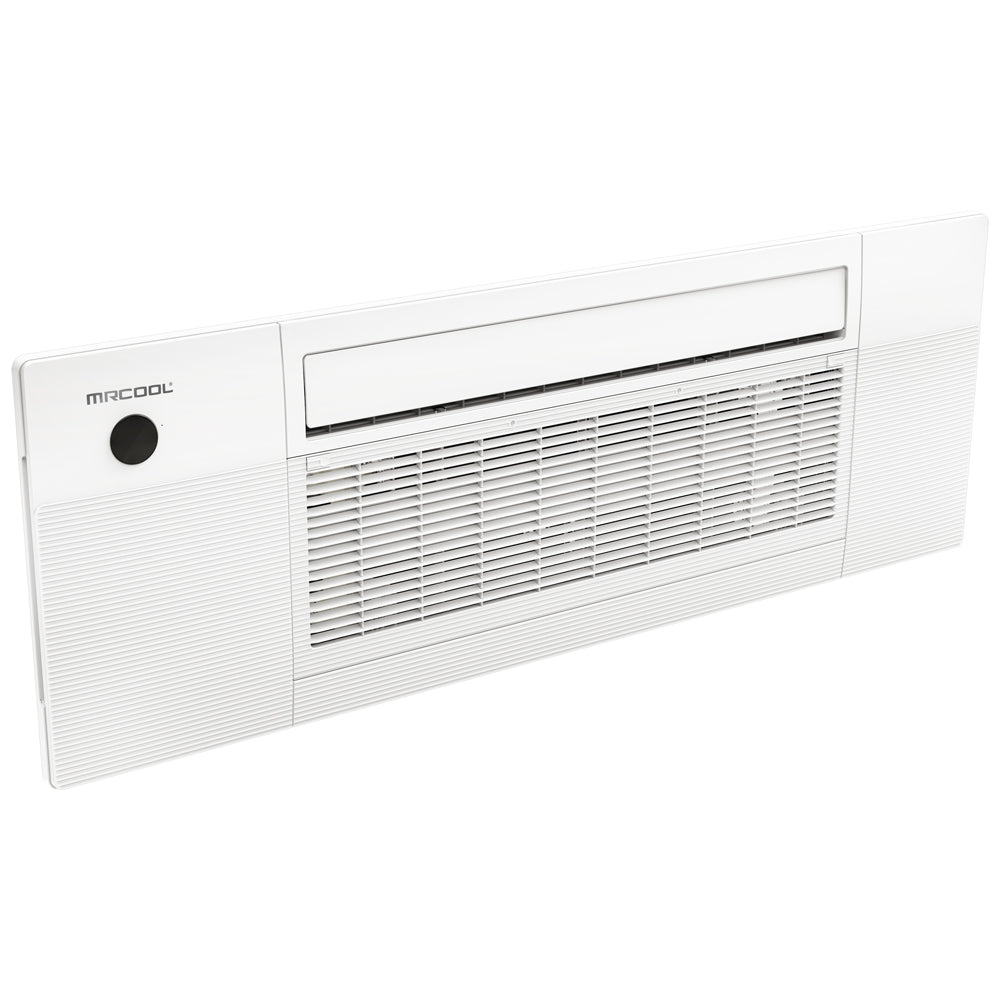

MRCOOL® DIY® Series 5th Gen OuttaSight® 9K BTU 230V One-Way Ceiling Cassette
MRCOOL® DIY® Series 5th Gen OuttaSight® 9K BTU 230V One-Way Ceiling Cassette
$117.50 /mo with 12-month special financing (0% APR). Add to cart & apply at checkout. Learn more! Your estimated monthly payment is calculated based on your approved financing terms. Please review the payment terms and conditions.
Additional Discounts in Checkout!
-
Bulk-Buy Discount
Need Large Bulk?
If you need more than 25+ quantity, contact us now for additional discounts.
Installation and Removal
Where will services be needed?
Inner Circle Access
Pro+ Builder Access ( Apply )
Invitation to exclusive events
Get Access to
Get Access to Bulk Price Levels
The 5th Generation MRCOOL® DIY® Series Outtasight® 9K BTU 230V One-Way Ceiling Cassette provides a powerful and efficient climate control solution for areas up to 400 sq. ft. Designed for simple installation, this unit eliminates the need for specialized tools, making setup quick, cost-effective, and straightforward. Made for multi-zone configurations, the cassette is engineered to fit seamlessly between 16” ceiling joists, including pre-manufactured I-joists, ensuring a discreet, flush-mounted appearance. Unlike conventional ceiling cassettes that require bulky ductwork or dedicated wall space, this unit offers versatile installation, making it a perfect choice for new construction or retrofit applications. This cassette works effortlessly with the MRCOOL® DIY® Quick Connect® line set, which is pre-charged with R-454B refrigerant, an eco-friendly solution that removes the need for vacuuming. It features advanced filtration to improve indoor air quality, while the Elevation function makes filter maintenance easy by lowering the panel for hassle-free access. With whisper-quiet operation and multiple control options—including a wireless remote, SmartHVAC app, and voice control via Amazon Alexa and Google Assistant—this system ensures customized comfort. Supported by a 7-year compressor/5-year parts warranty and eligibility for the MRCOOL® Care Program, the MRCOOL® Outtasight® Ceiling Cassette guarantees long-lasting performance, modern technology, and year-round climate control.
Features
- Low Profile Installation Fits between 16" Ceiling Joists Works with Multi and Single Zone Systems Two-Stage DC motor Quiet Operation Multiple Operating Modes Remote Included Advanced Filtration Swing Technology
Specifications
| UNIT TYPE | Mini-Split |
| WORKS WITH | DIY 5th Gen Systems |
| CFM | 341 / 294 / 259 / 235 / 235 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Ceiling |
| COLOR | White |
| RATED LOAD | 0.8 |
| MAX COVERAGE AREA | 400 |
| REFRIGERANT TYPE | R-454B |
| DECIBEL RATING (DBA) | 36 |
| DECIBEL RATING LOW (DBA) | 24 |
| DECIBEL RATING HIGH (DBA) | 38 |
| AIR FLOW DIRECTION | 1-Way |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| BLOWER MOTOR RPM | 1104/994/784 |
| FILTER TYPE | Reusable |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| SLEEP MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| BASE WARRANTY | 5-Year Part/7-Year Compressor |
| BASE PARTS WARRANTY | 5 Years |
| BASE COMPRESSOR WARRANTY | 7 Years |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| RESTRICTED STATES | GU;PR;VI |
| NET DEPTH (IN) | 13.19 |
| NET HEIGHT (IN) | 8.98 |
| NET WIDTH (IN) | 50.31 |
| NET WEIGHT (LBS) | 45 |
| GROSS DEPTH (IN) | 22.48 |
| GROSS HEIGHT (IN) | 22.64 |
| GROSS WIDTH (IN) | 57.6 |
| GROSS WEIGHT (LBS) | 88 |
