MRCOOL SKU: DIYCASSETTE18HP-230D25-O
MRCOOL® DIY® Series 5th Gen OuttaSight® 18K BTU 230V One-Way Ceiling Cassette
MRCOOL® DIY® Series 5th Gen OuttaSight® 18K BTU 230V One-Way Ceiling Cassette
$120.00 /mo with 12-month special financing (0% APR). Add to cart & apply at checkout. Learn more! Your estimated monthly payment is calculated based on your approved financing terms. Please review the payment terms and conditions.
Additional Discounts in Checkout!
-
Bulk-Buy Discount
Need Large Bulk?
If you need more than 25+ quantity, contact us now for additional discounts.
Installation and Removal
Where will services be needed?
Inner Circle Access
Pro+ Builder Access ( Apply )
Invitation to exclusive events
Get Access to
Get Access to Bulk Price Levels

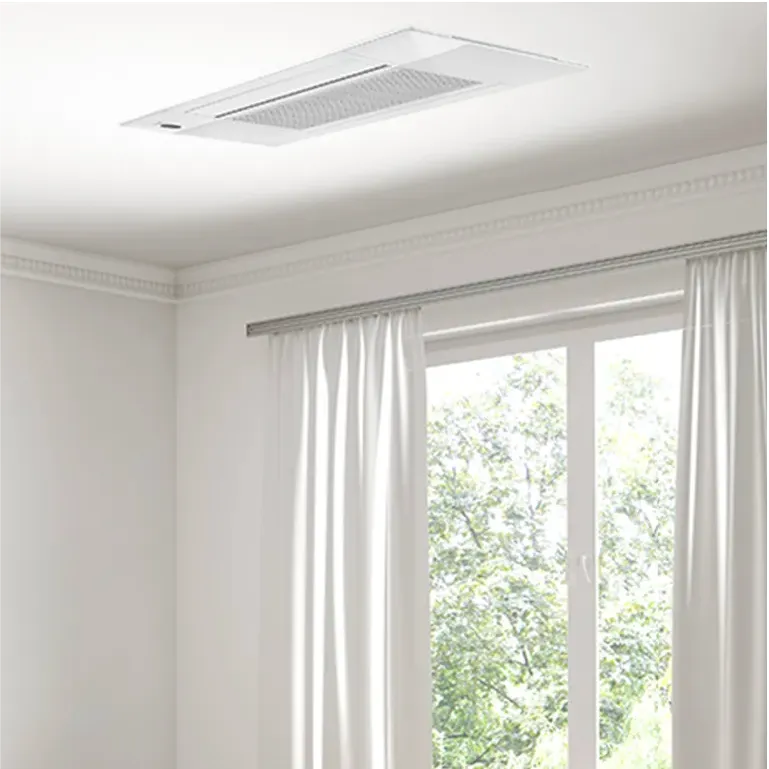

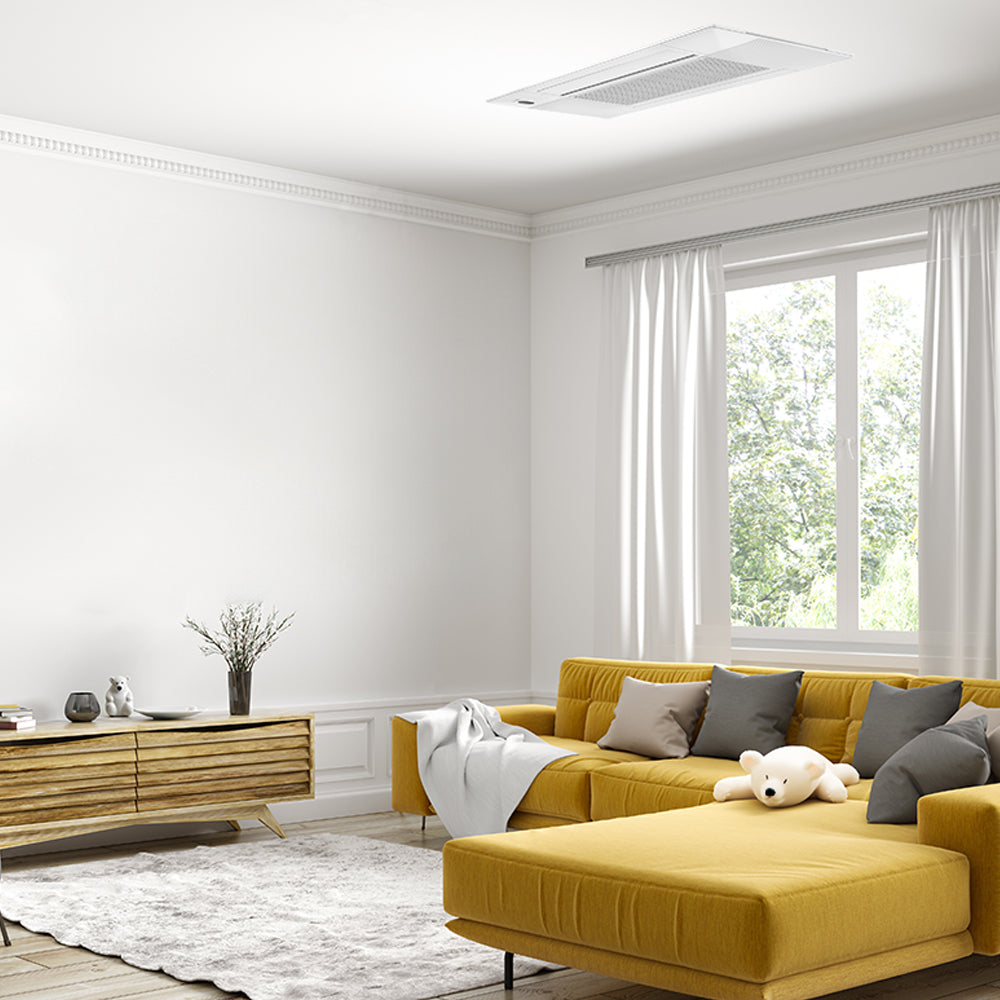

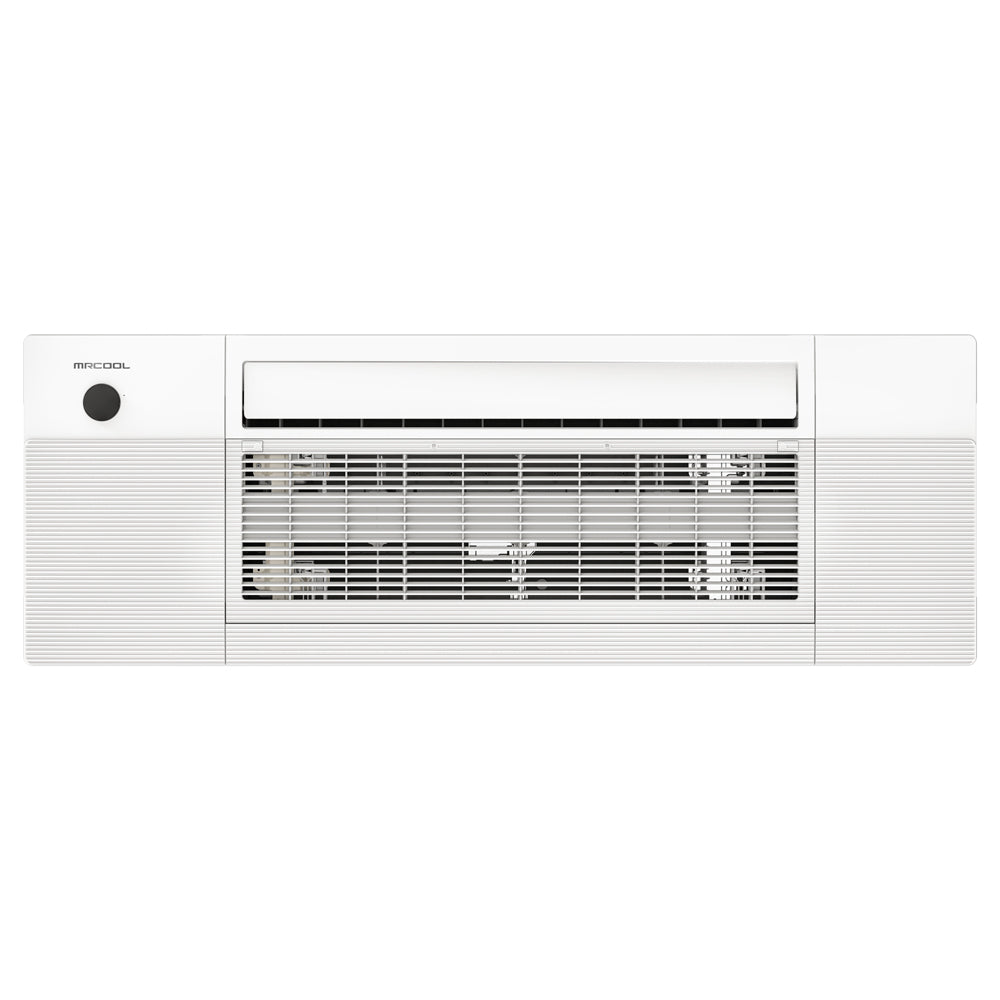

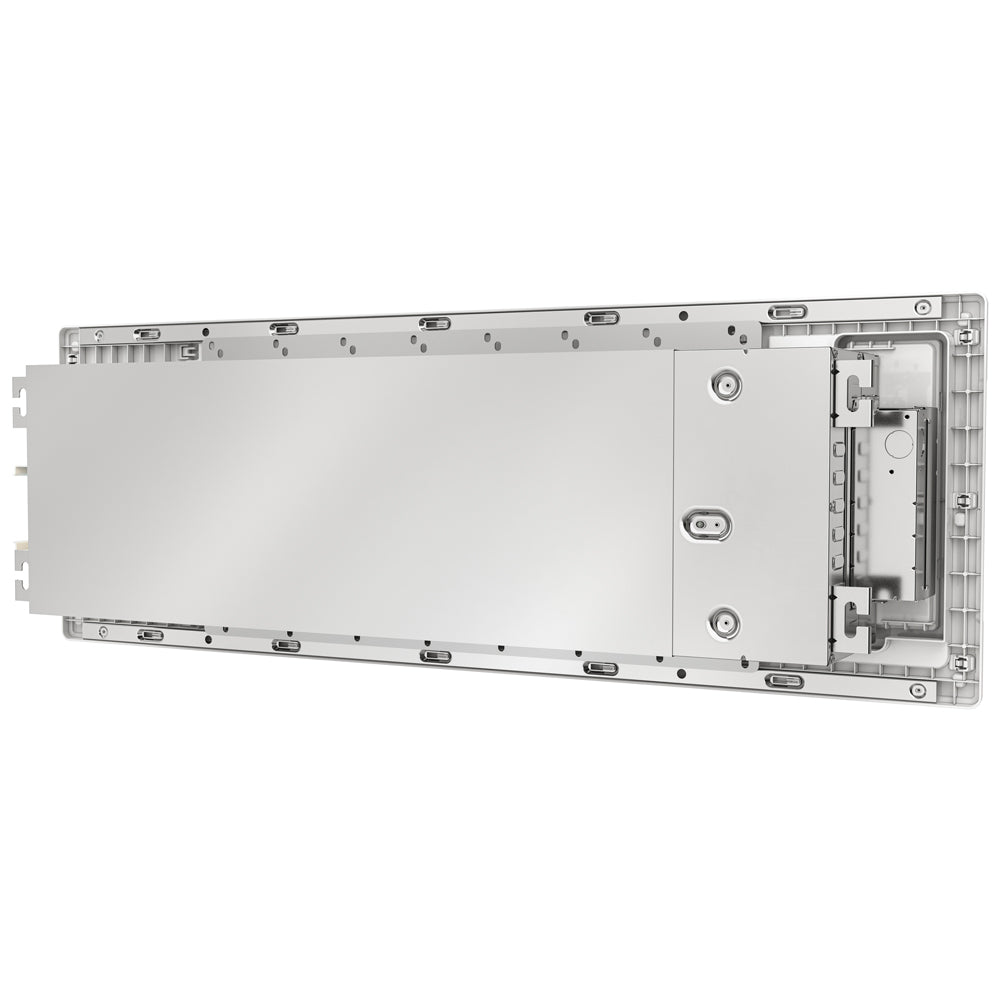

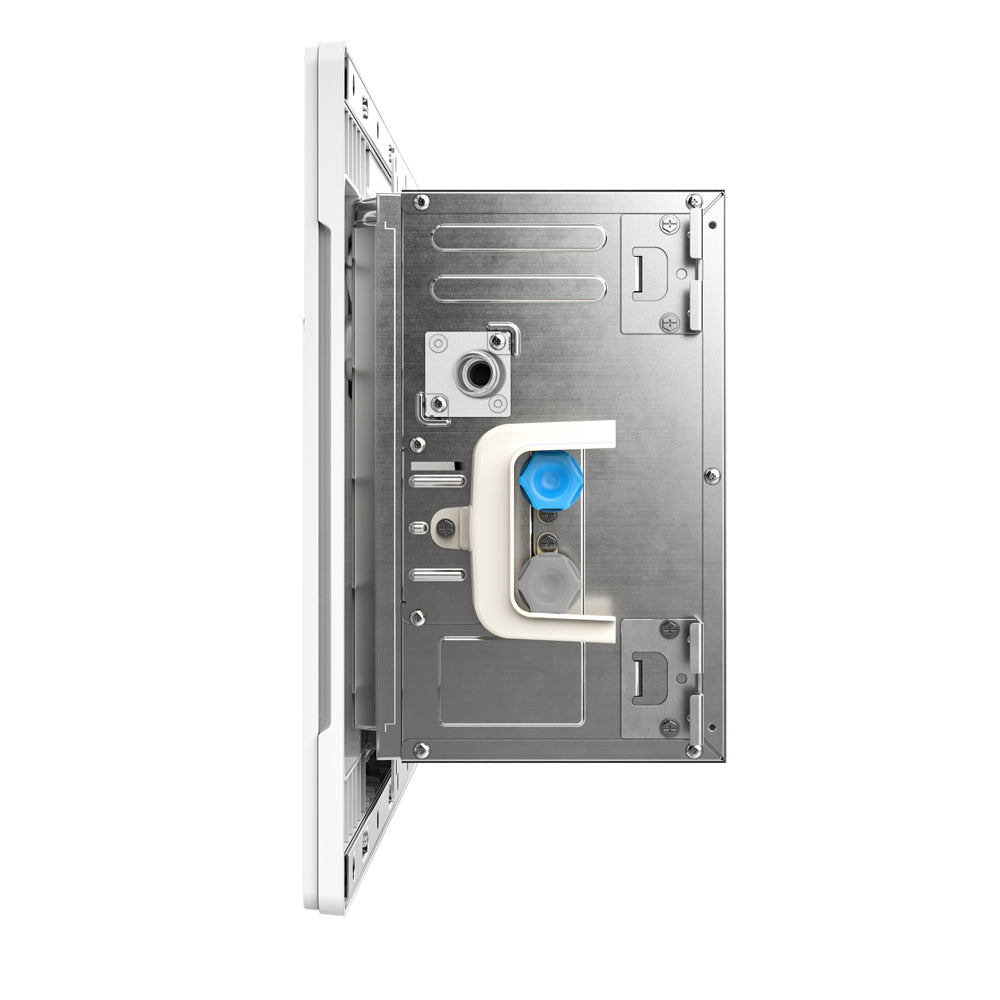

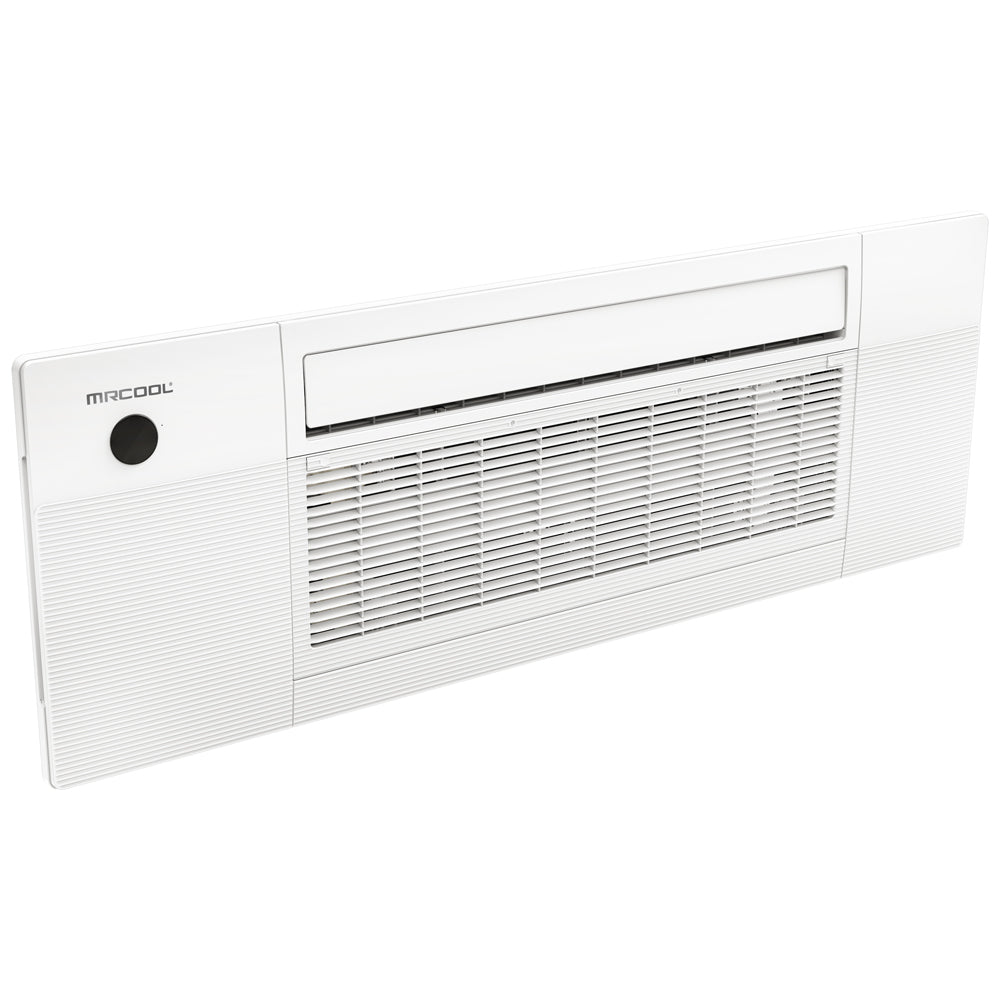

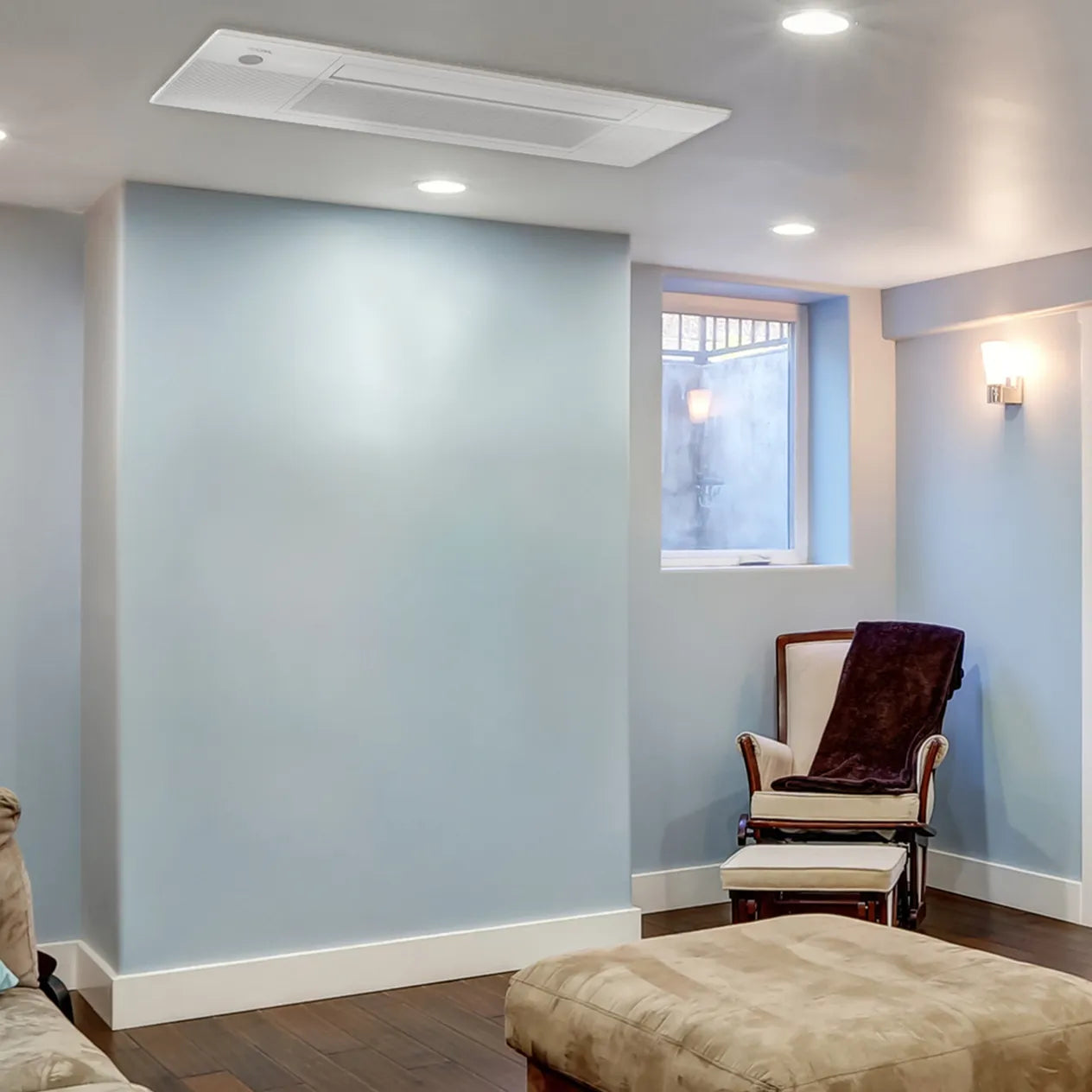

The 5th Generation MRCOOL® DIY® Series Outtasight® 18K BTU 230V One-Way Ceiling Cassette provides efficient and powerful climate control for areas up to 800 sq. ft. Designed for effortless installation, it eliminates the need for specialized tools, offering a cost-effective and straightforward setup. Ideal for both multi-zone and single-zone applications, this unit fits seamlessly between 16” ceiling joists, including pre-manufactured I-joists, ensuring a flush, modern appearance. Unlike conventional ceiling cassettes that require extensive ductwork or valuable wall space, this system provides flexible installation, making it perfect for both new construction and retrofit projects. It connects effortlessly to the MRCOOL® DIY® Quick Connect® line set, pre-charged with R-454B, an eco-friendly refrigerant, eliminating the need for vacuuming and simplifying the installation process. Advanced filtration improves indoor air quality, while the Elevation function allows the filter panel to lower for easy maintenance and cleaning. With whisper-quiet operation and multiple control options—including a wireless remote, SmartHVAC app, and compatibility with Amazon Alexa and Google Assistant—this system ensures customized comfort. Supported by a 7-year compressor/5-year parts warranty and eligibility for the MRCOOL® Care Program, the MRCOOL® Outtasight® Ceiling Cassette offers reliable performance and year-round comfort.
Features
- Low Profile Installation Fits between 16" Ceiling Joists Works with Multi and Single Zone Systems Two-Stage DC motor Quiet Operation Multiple Operating Modes Remote Included Advanced Filtration Swing Technology
Specifications
| UNIT TYPE | Mini-Split |
| WORKS WITH | DIY 5th Gen Systems |
| CFM | 400 / 352 / 300 / 207 / 207 |
| COOLING CAPACITY (BTU) | 18800 |
| HEATING CAPACITY (BTU) | 22700 |
| VOLTAGE (V) | 208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| MOUNT TYPE | Ceiling |
| COLOR | White |
| RATED LOAD | 1.2 |
| MAX COVERAGE AREA | 800 |
| REFRIGERANT TYPE | R-454B |
| DECIBEL RATING (DBA) | 41.5 |
| DECIBEL RATING LOW (DBA) | 26 |
| DECIBEL RATING HIGH (DBA) | 44 |
| AIR FLOW DIRECTION | 1-Way |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 1/2 |
| BLOWER MOTOR RPM | 1344/1184/1024 |
| FILTER TYPE | Reusable |
| FAN ONLY OPTION | Yes |
| QUIET MODE | Yes |
| SLEEP MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| BASE WARRANTY | 5-Year Part/7-Year Compressor |
| BASE PARTS WARRANTY | 5 Years |
| BASE COMPRESSOR WARRANTY | 7 Years |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS AEROSOL | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| RESTRICTED STATES | GU;PR;VI |
| NET DEPTH (IN) | 13.19 |
| NET HEIGHT (IN) | 8.98 |
| NET WIDTH (IN) | 50.31 |
| NET WEIGHT (LBS) | 45 |
| GROSS DEPTH (IN) | 22.48 |
| GROSS HEIGHT (IN) | 22.64 |
| GROSS WIDTH (IN) | 57.6 |
| GROSS WEIGHT (LBS) | 88 |
