MRCOOL SKU: DIYHH-18-HP-CS-230D25-O
DIY 5th Gen - R454B - 18K Hyper Heat BTU 230V Condenser w/ 25ft Install Kit (Complete System)
DIY 5th Gen - R454B - 18K Hyper Heat BTU 230V Condenser w/ 25ft Install Kit (Complete System)
$264.42 /mo with 12-month special financing (0% APR). Add to cart & apply at checkout. Learn more! Your estimated monthly payment is calculated based on your approved financing terms. Please review the payment terms and conditions.
Additional Discounts in Checkout!
-
Bulk-Buy Discount
Need Large Bulk?
If you need more than 25+ quantity, contact us now for additional discounts.
Installation and Removal
Where will services be needed?
Inner Circle Access
Pro+ Builder Access ( Apply )
Invitation to exclusive events
Get Access to
Get Access to Bulk Price Levels

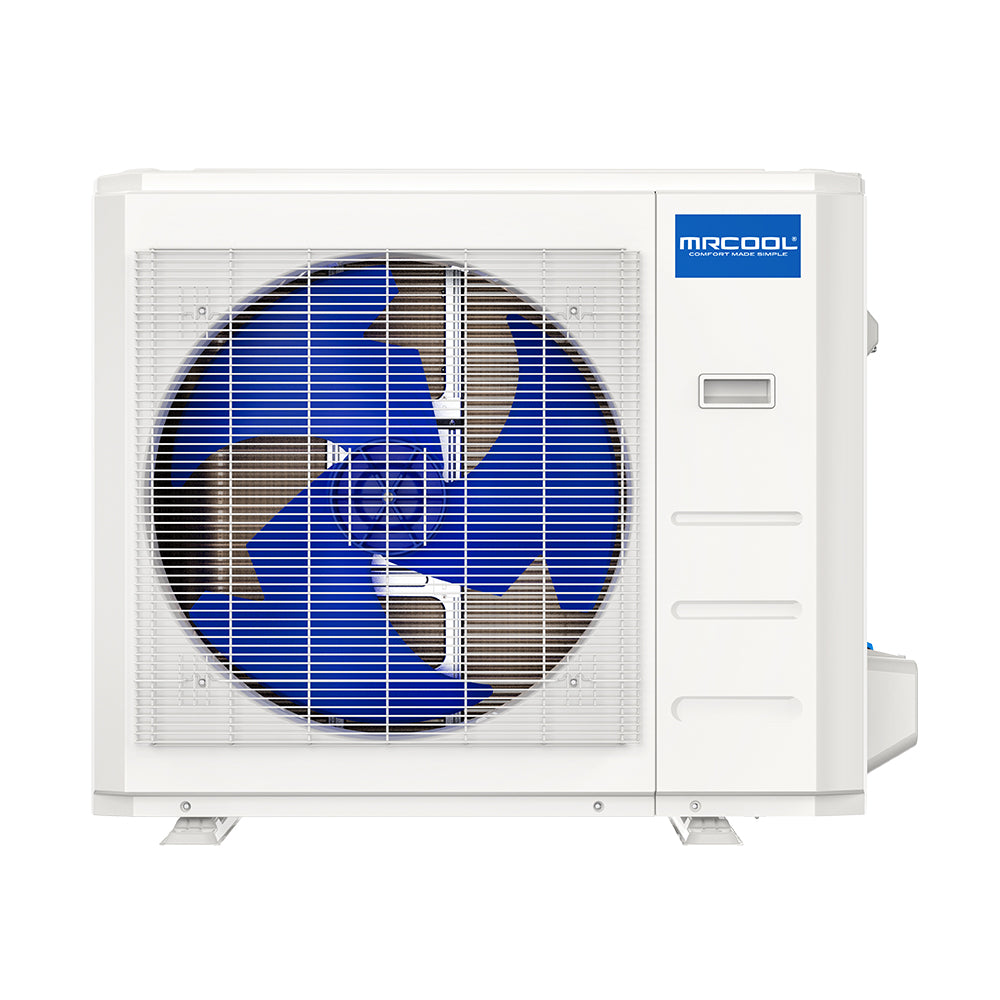

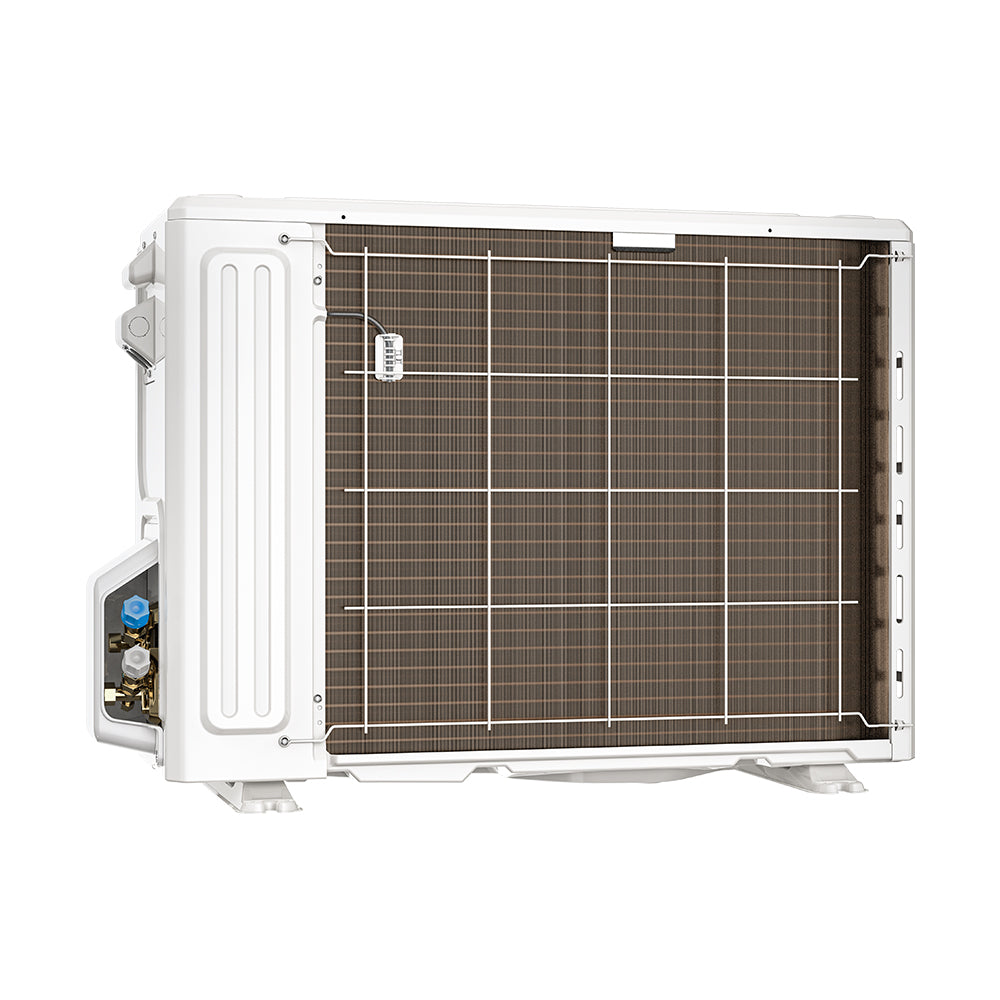

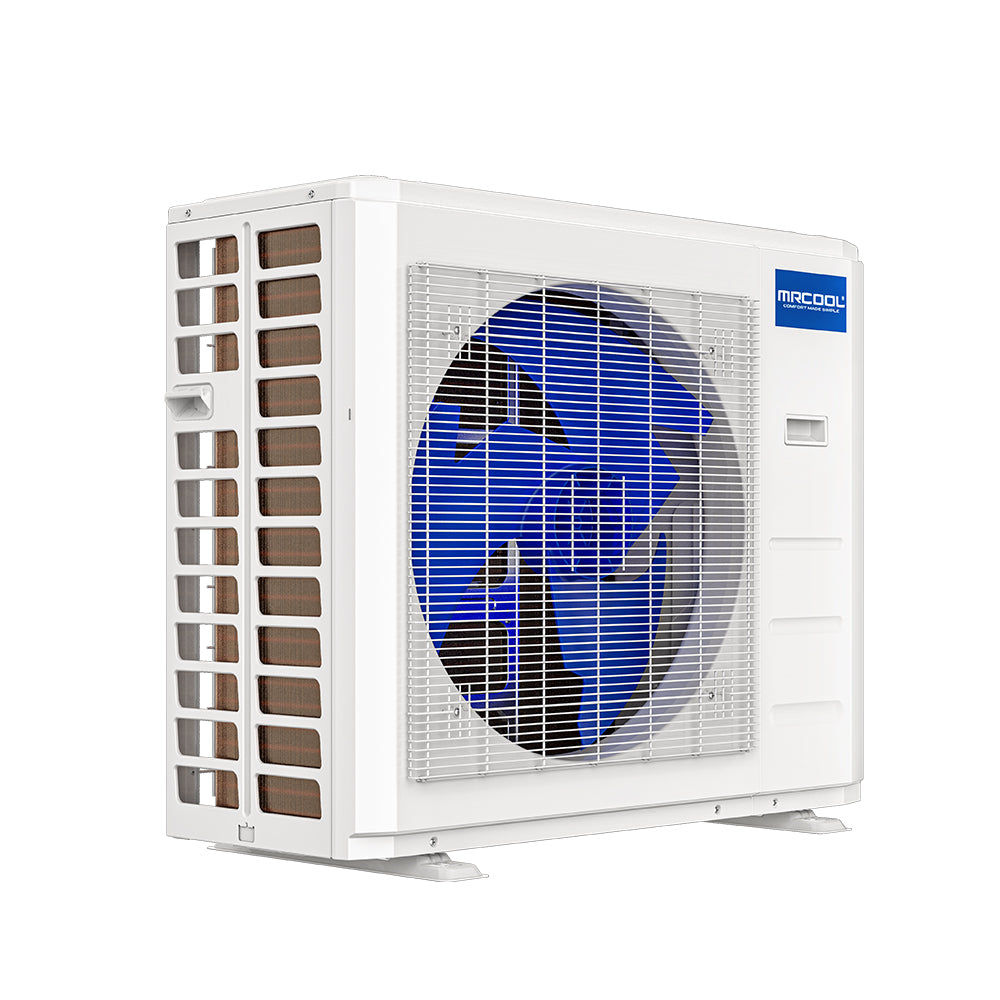

Experience year-round comfort with the MRCOOL® DIY® 18k BTU 208/230V Hyper Heat 21.2 SEER Ductless Heat Pump Single Zone Mini Split Condenser—a high-performance solution designed for easy installation without the need for professional tools or experience. Perfect for spaces ranging from 500-800 sq. ft., this system is compatible with both our stylish wall-mounted air handlers and the discreet DIY® OuttaSight® Ceiling Cassette. Installation is quick and hassle-free, thanks to the 25-foot Quick Connect® line set, which comes pre-charged with eco-friendly R-454B refrigerant. No vacuum pump or gauges required. The included DIYPRO® cable adds extra durability, offering protection against outdoor elements, animals, and everyday wear. Control your comfort effortlessly with several convenient options: a handheld remote, the SmartHVAC mobile app for Apple and Android, or hands-free voice commands via Amazon Alexa and Google Assistant. The Gold Fin® condenser coating helps resist corrosion, making it a dependable option even in coastal climates. Advanced features enhance both convenience and efficiency. Auto-Restart resumes unit function after a power outage, Timer allows for customized operation based on your schedule, and Sleep maximizes energy usage while you sleep. For ultimate peace of mind, the MRCOOL® DIY® 18k BTU Hyper Heat Single Zone Mini Split includes a 7-year compressor and 5-year parts warranty with eligibility for the MRCOOL® Care Program for ultimate performance and confidence.
Specifications
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Condenser |
| WORKS WITH | DIYCASSETTE18HP-230D25-O DIY-18-HP-WMAH-230D25-O |
| SEER2 | 21.2 |
| EER2 | 12.5 |
| HSPF2-4 | 11 |
| HSPF2-5 | 8.5 |
| CFM | 1765.8 |
| TONNAGE | 1.5 |
| COOLING CAPACITY (BTU) | 18000 |
| HEATING CAPACITY (BTU) | 18000 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 25 |
| MIN CIRCUIT AMPACITY (A) | 19 |
| COLOR | White |
| MAX COVERAGE AREA | 800 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 52.21 |
| DECIBEL RATING (DBA) | 58 |
| INVERTER | Yes |
| MIN AMBIENT COOL (F) | -22 |
| MIN AMBIENT HEAT (F) | -22 |
| LINESET INCLUDED | Yes |
| LINE SET LENGTH | 25ft |
| MAX LINESET LENGTH (FT) | 75 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 1/2 |
| COMPRESSOR MOTOR TYPE | Rotary |
| CONDENSER FAN MOTOR RPM | 780/700/550 |
| METERING DEVICE | EEV |
| UL LISTED | Yes |
| CSA CERTIFIED | Yes |
| ETL CERTIFIED | Yes |
| ENERGY STAR CERTIFIED | Yes |
| AHRI CERTIFIED | Yes |
| REGISTERED WARRANTY | 7-Years Compressor, 5-Years Parts |
| BASE WARRANTY | 5-Years Parts |
| BASE PARTS WARRANTY | 5 Years |
| BASE COMPRESSOR WARRANTY | 7 Years |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| RESTRICTED STATES | GU;PR;VI |
| NET DEPTH (IN) | 13.46 |
| NET HEIGHT (IN) | 26.5 |
| NET WIDTH (IN) | 35.04 |
| NET WEIGHT (LBS) | 99.87 |
| GROSS DEPTH (IN) | 18.11 |
| GROSS HEIGHT (IN) | 29.53 |
| GROSS WIDTH (IN) | 40.55 |
| GROSS WEIGHT (LBS) | 120.15 |
