MRCOOL SKU: DIYS-09-HP-115A11-O

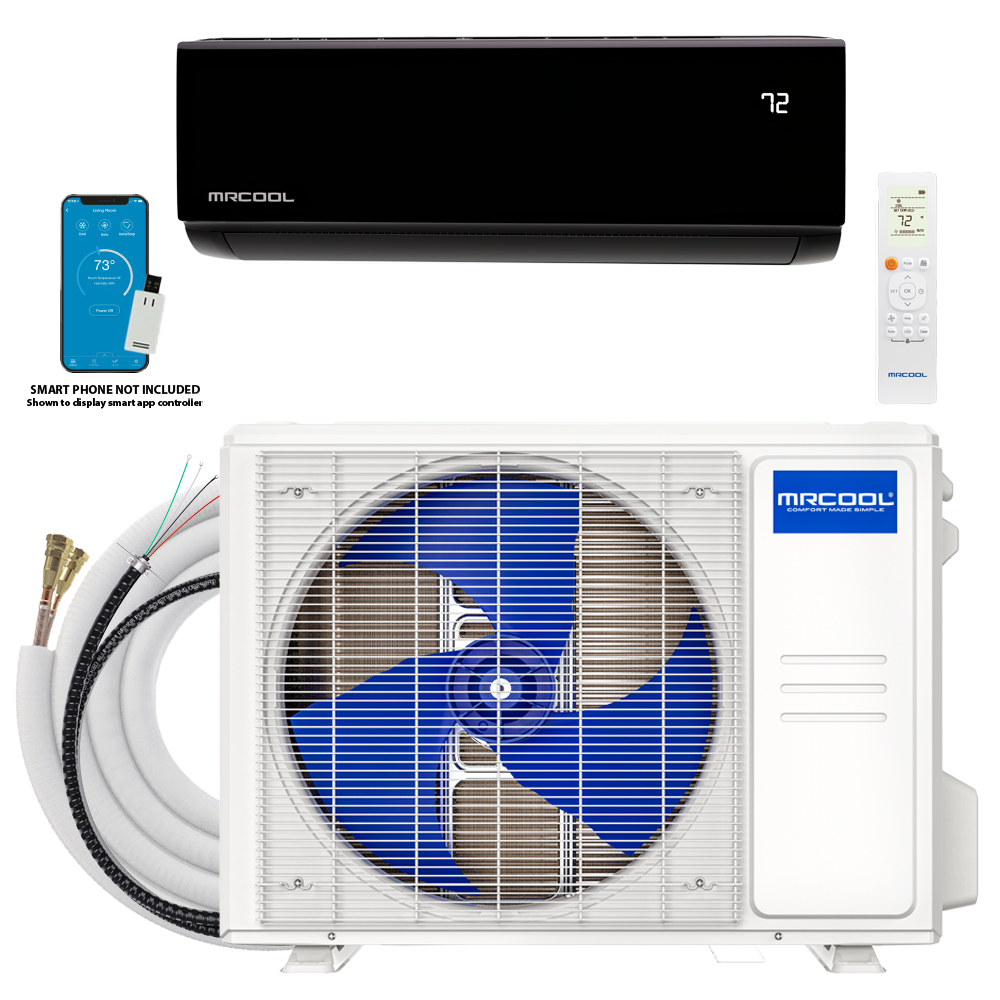

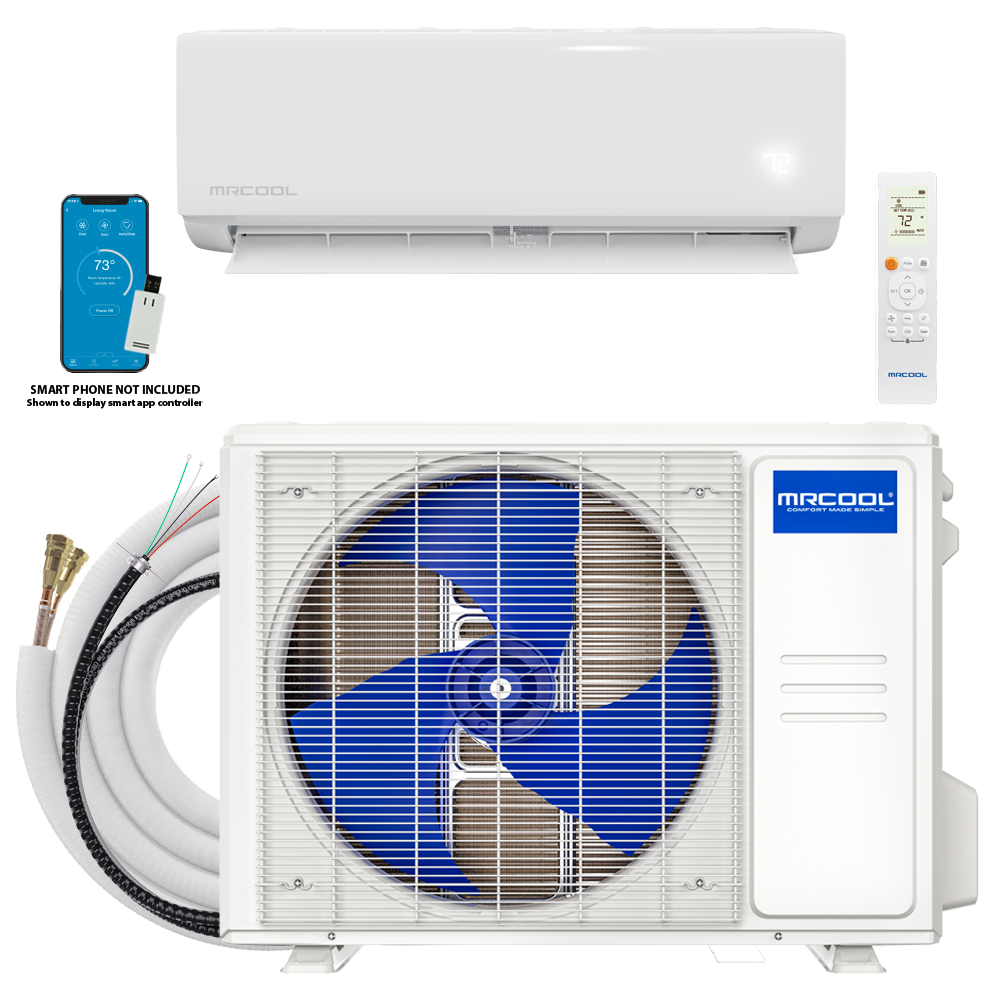

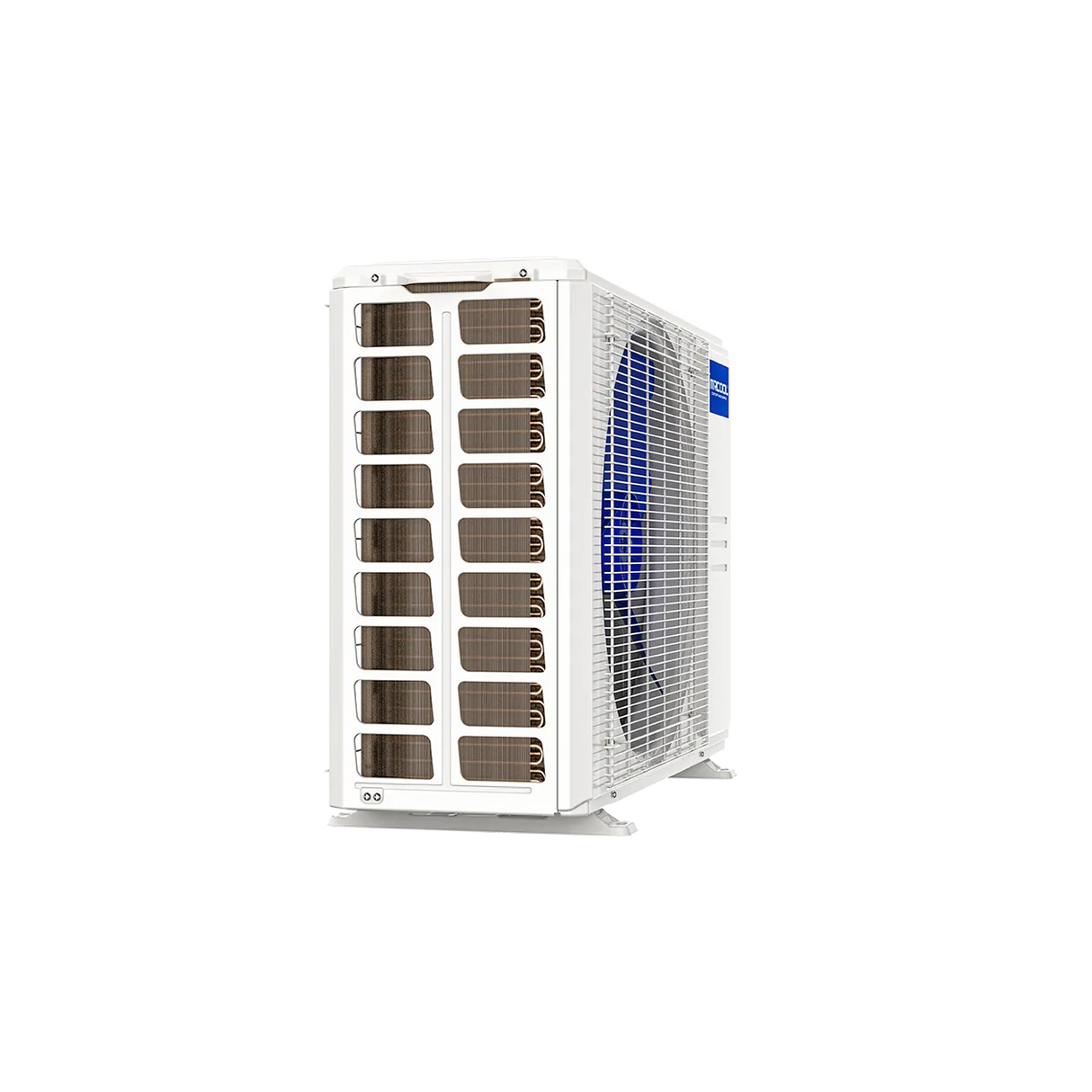

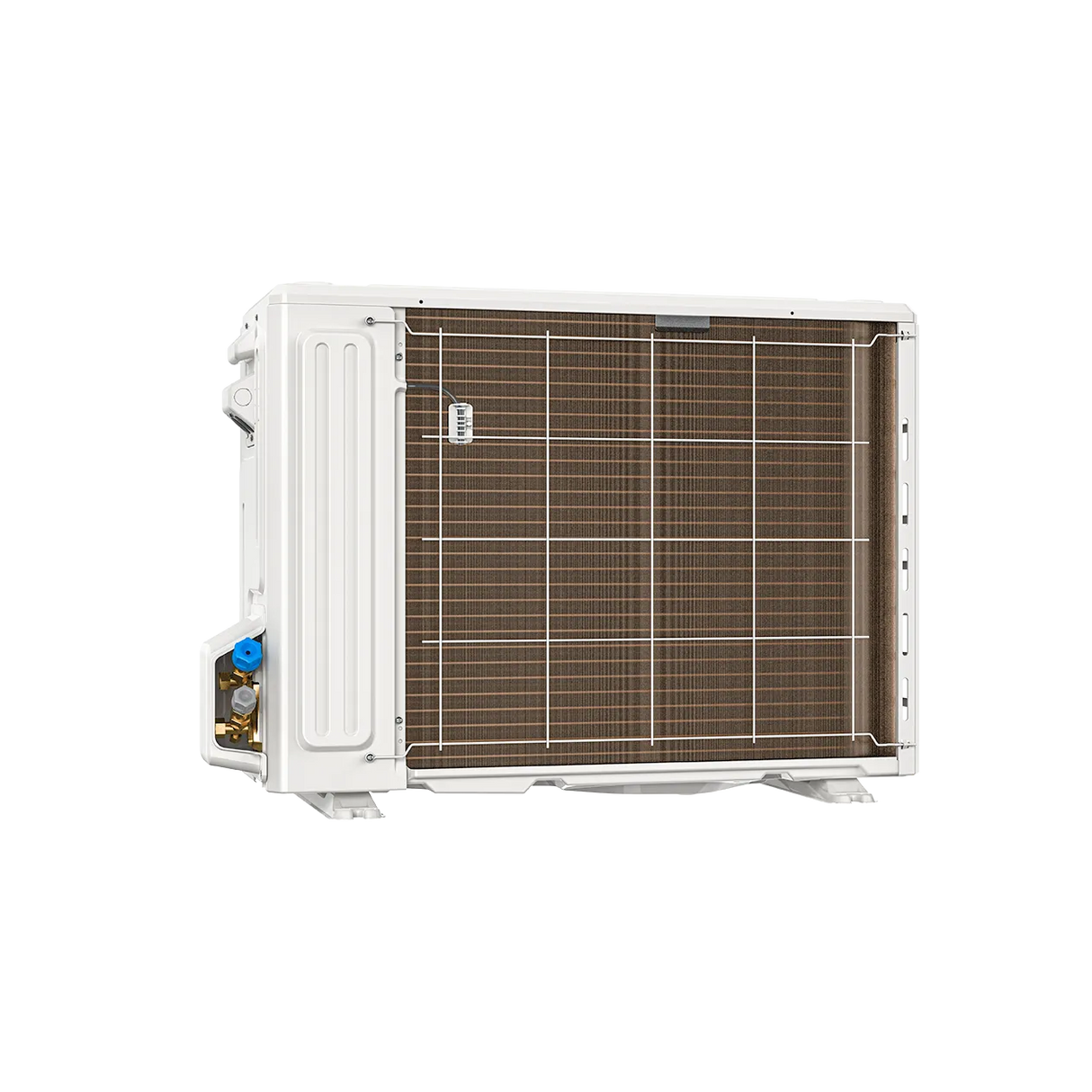

DIY Select 1st Gen - R454B - 9K BTU 115V Condenser w/ 11ft Install Kit (Complete System)
DIY Select 1st Gen - R454B - 9K BTU 115V Condenser w/ 11ft Install Kit (Complete System)
$104.08 /mo with 12-month special financing (0% APR). Add to cart & apply at checkout. Learn more! Your estimated monthly payment is calculated based on your approved financing terms. Please review the payment terms and conditions.
Additional Discounts in Checkout!
-
Bulk-Buy Discount
Need Large Bulk?
If you need more than 25+ quantity, contact us now for additional discounts.
Installation and Removal
Where will services be needed?
Inner Circle Access
Pro+ Builder Access ( Apply )
Invitation to exclusive events
Get Access to
Get Access to Bulk Price Levels

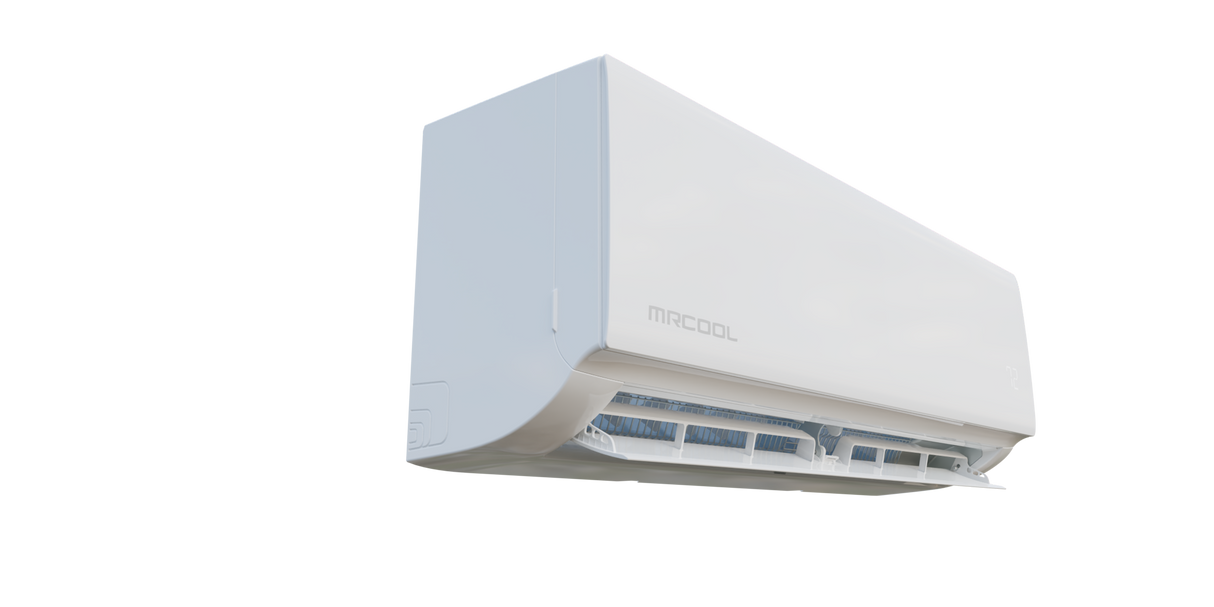

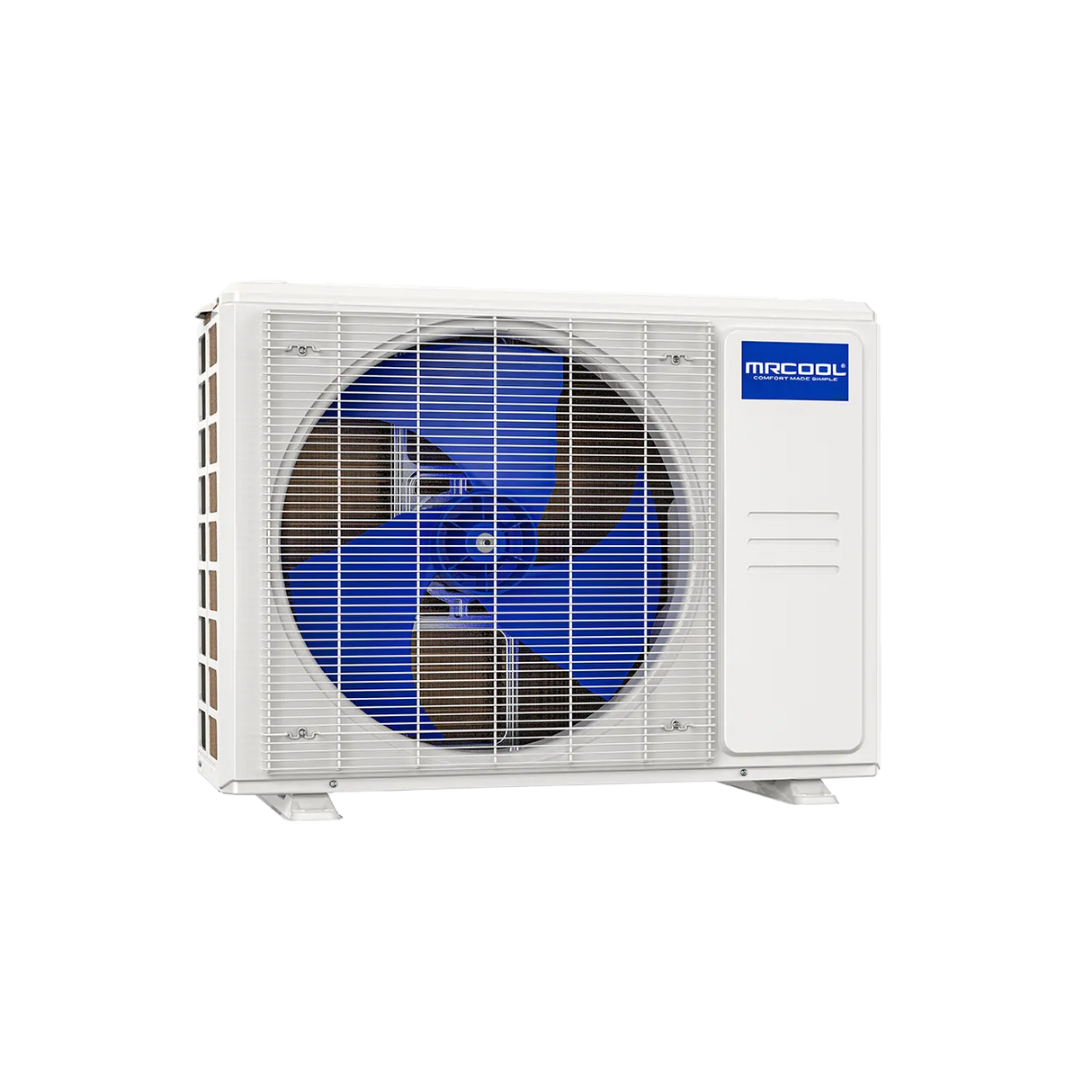

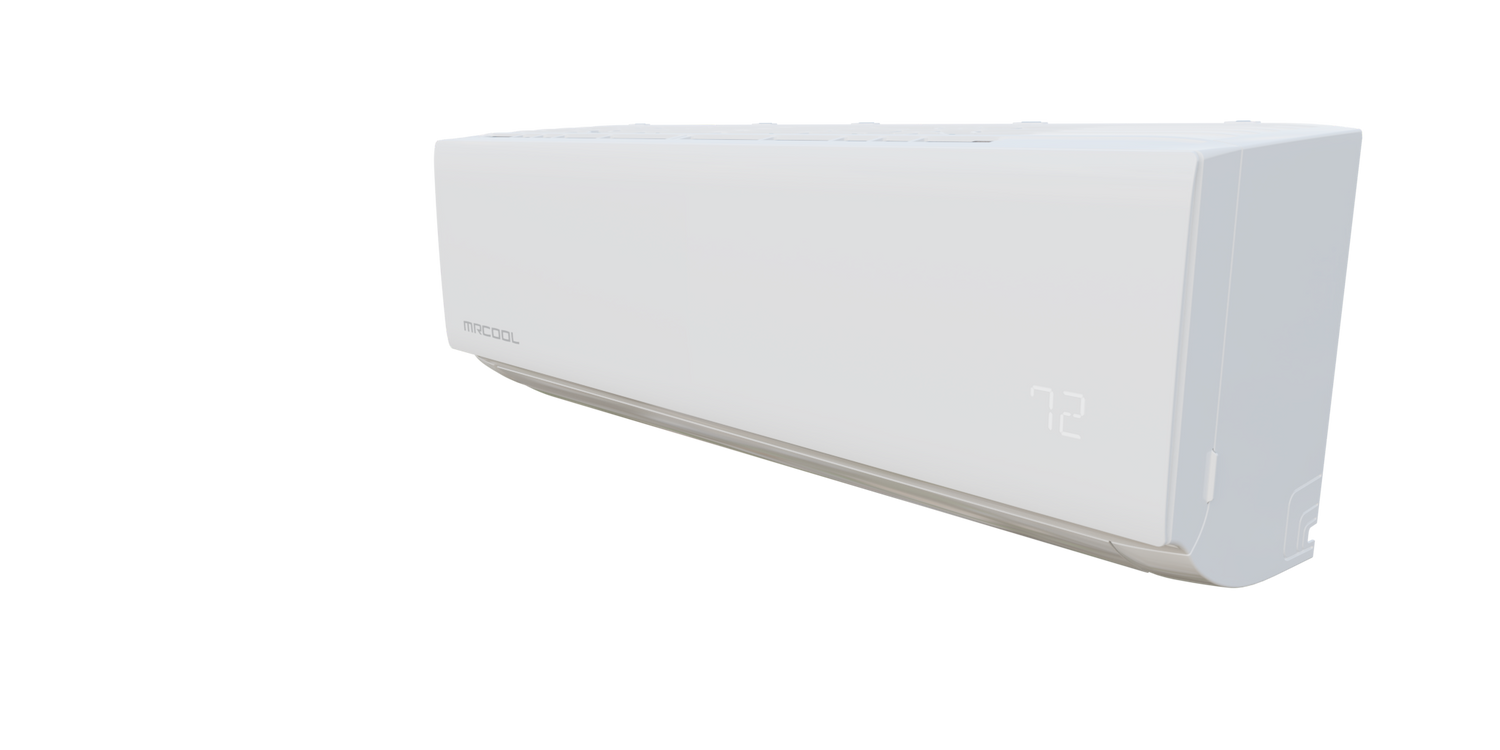

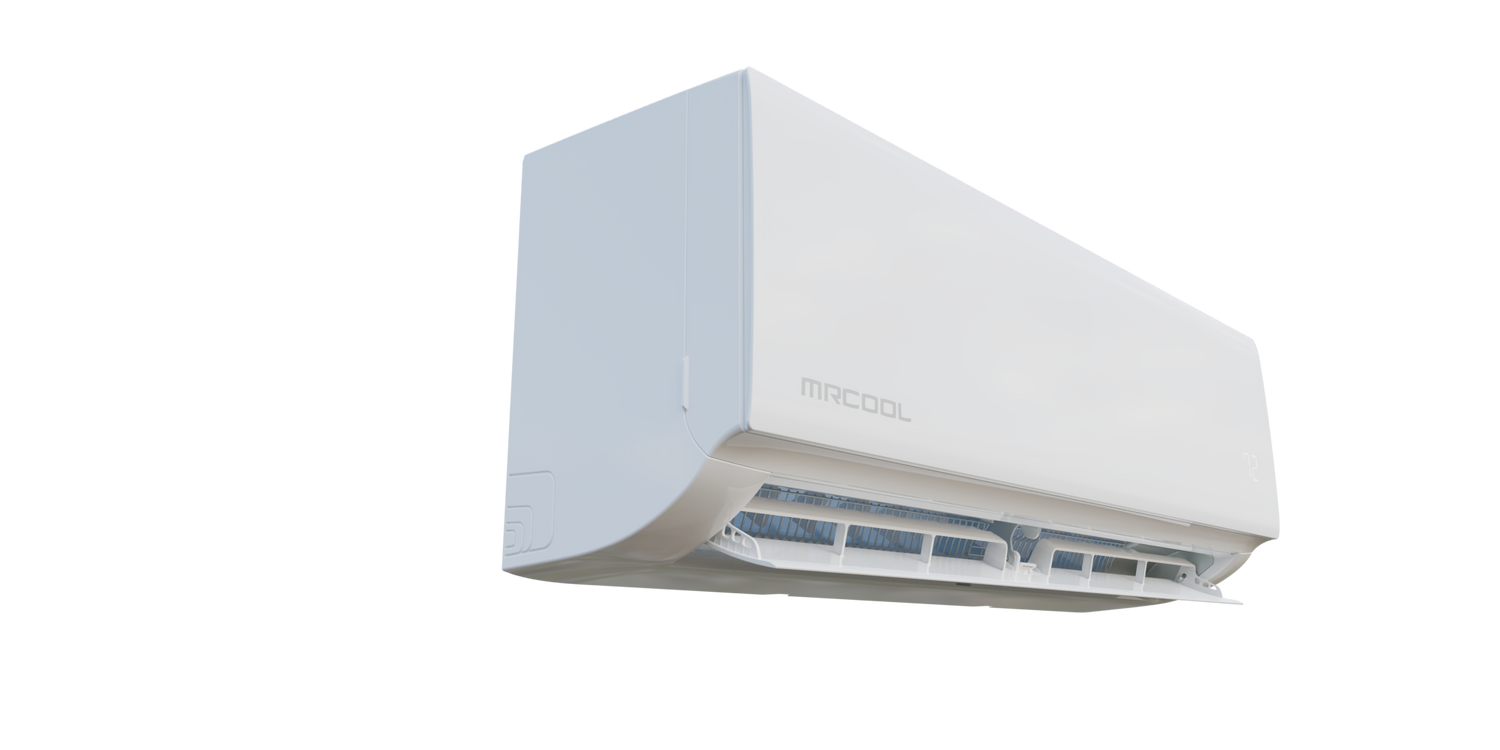

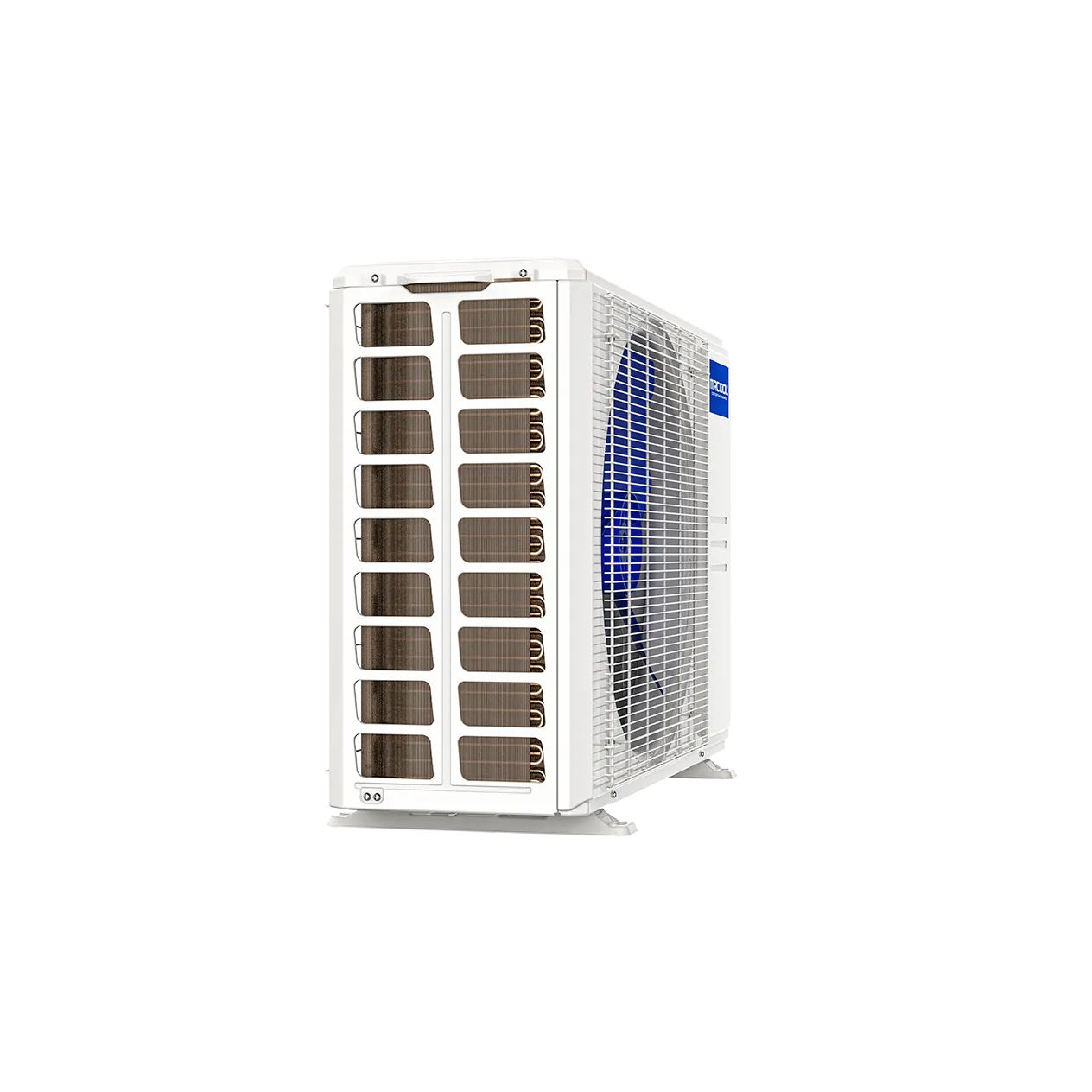

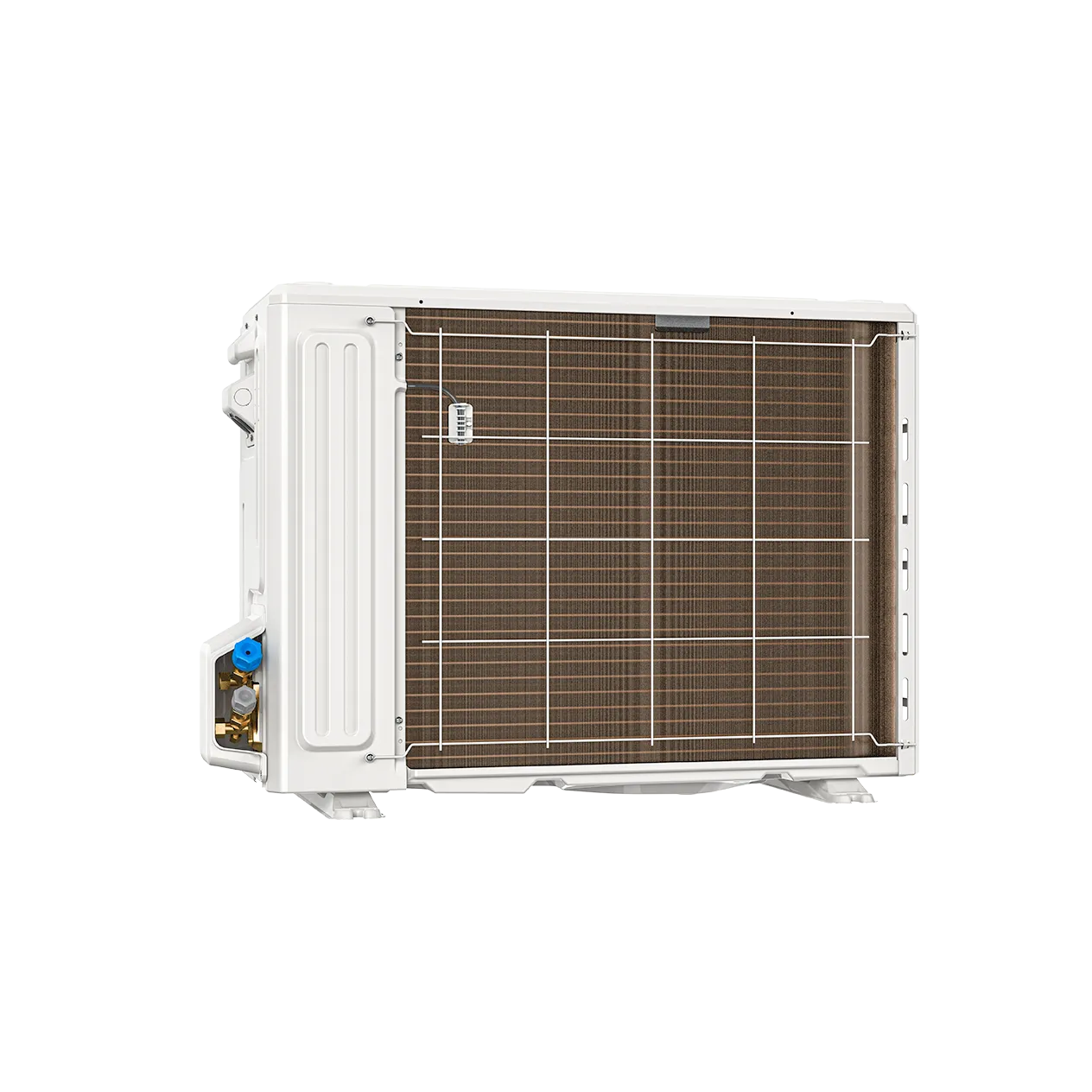

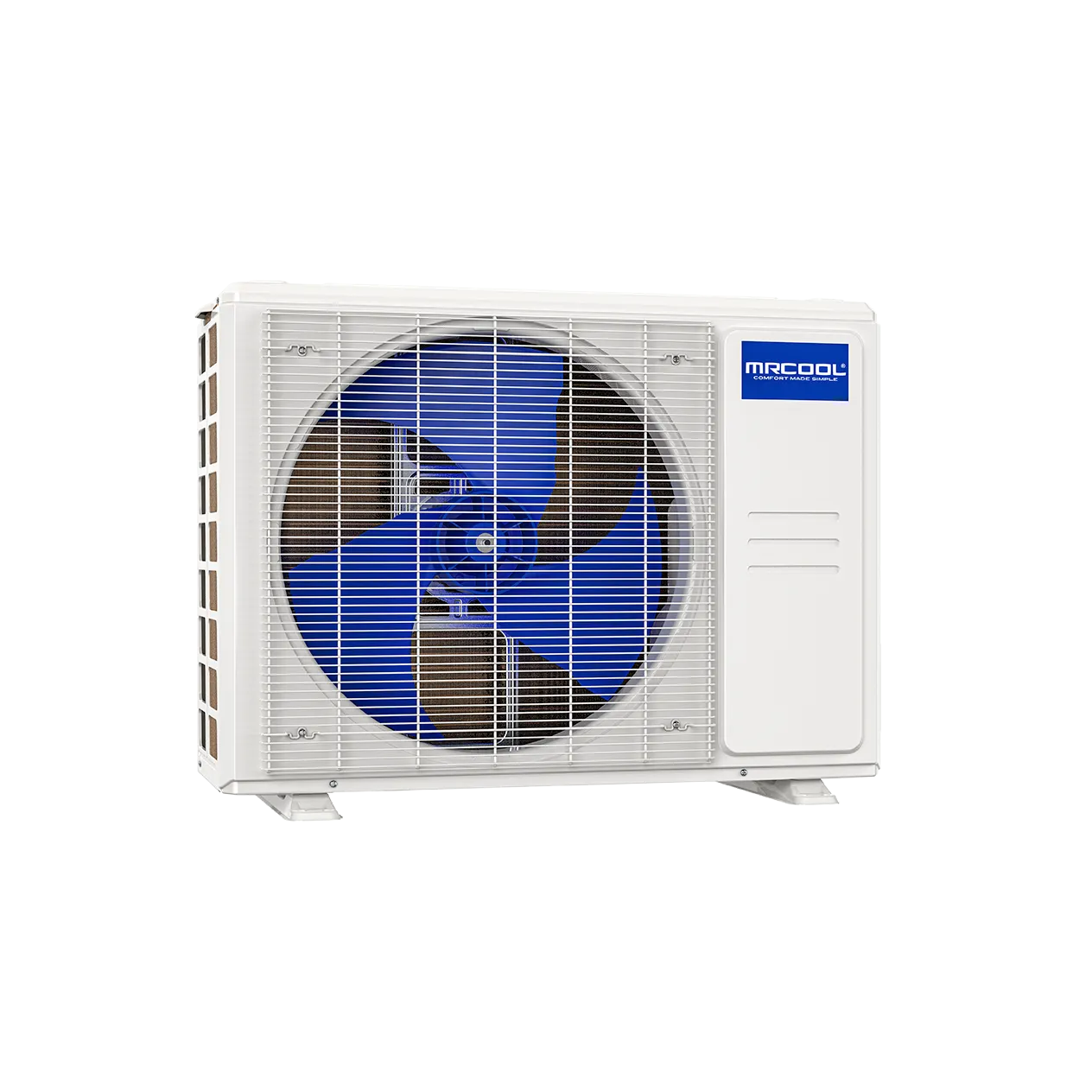

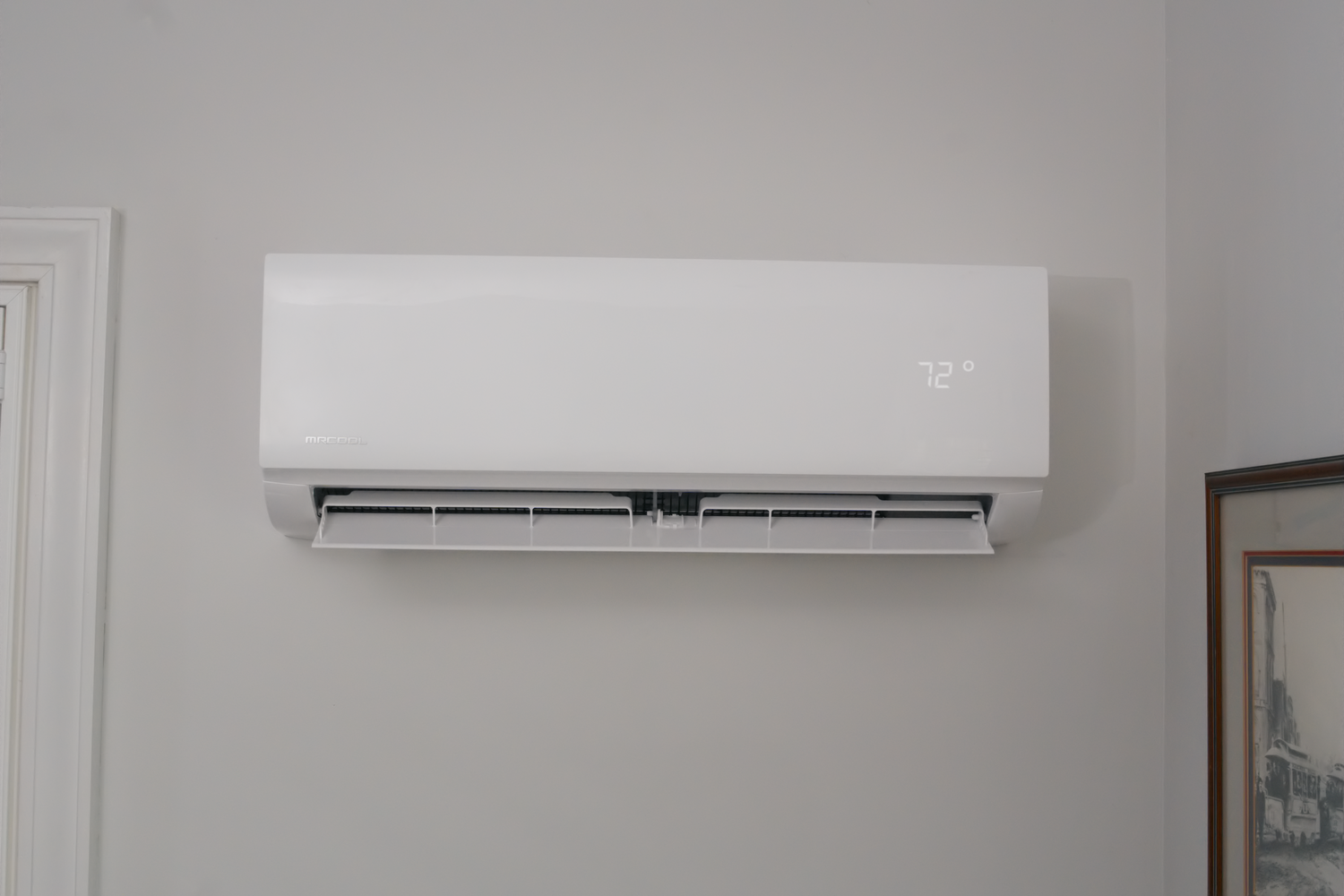

The MRCOOL® DIY® Select 9K BTU 115V Ductless Heat Pump Single Zone Mini-Split Condenser is engineered for true do-it-yourself installation, requiring no specialized tools, prior HVAC experience, or professional labor. Ideal for spare bedrooms, home offices, and other small spaces, it efficiently heats and cools areas up to 400 square feet. In conjunction with its DIY®-friendly design, the system also delivers strong performance with a 17.5 SEER2 cooling rating and 8.8 HSPF2-4 heating efficiency, providing dependable, year-round comfort while helping reduce energy costs. Installation is simplified with an 11.5-foot Quick Connect® line set that arrives factory pre-charged with environmentally friendly R-454B refrigerant, eliminating the need for vacuum pumps or refrigerant handling. Most components are included, making setup faster, cleaner, and more accessible for first-time installers. Comfort control is easy using the included wireless remote or the MRCOOL® Comfort app, which allows temperature adjustments, scheduling, and energy monitoring from anywhere. Compatibility with Amazon Alexa and Google Assistant adds convenient voice control. On the inside, features like Sleep Mode, Dry Mode, Auto, and programmable scheduling enhance everyday comfort. Meanwhile, a Gold Fin® condenser coating on the outside increases durability, even in humid or coastal environments. Offering powerful warranty protection, the MRCOOL® DIY® Select 9K BTU 115V Ductless Heat Pump Single Zone Mini-Split Condenser includes a 2-year compressor warranty and 1-year parts warranty for added peace of mind.
Specifications
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Condenser |
| SEER2 | 17.5 |
| EER2 | 9.8 |
| HSPF2-4 | 8.8 |
| HSPF2-5 | 6.8 |
| TONNAGE | 0.75 |
| COOLING CAPACITY (BTU) | 9000 |
| HEATING CAPACITY (BTU) | 9000 |
| VOLTAGE (V) | 115 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 20 |
| MIN CIRCUIT AMPACITY (A) | 17 |
| COLOR | White |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| REFRIGERANT VOLUME (OZ) | 17.28 |
| DECIBEL RATING (DBA) | 54 |
| INVERTER | Yes |
| LINESET INCLUDED | Yes |
| LINE SET LENGTH | 11.5 ft. |
| MAX LINESET LENGTH (FT) | 75 ft. |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| COMPRESSOR MOTOR TYPE | Rotary |
| CONDENSER FAN MOTOR TYPE | DC |
| CONDENSER FAN MOTOR RPM | 850/700/600 |
| METERING DEVICE | EEV |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | No |
| AHRI CERTIFIED | Yes |
| BASE WARRANTY | 1 Year Parts, 2 Years Compressor |
| BASE PARTS WARRANTY | 1 Year Parts |
| BASE COMPRESSOR WARRANTY | 2 Years Compressor |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 10.63 |
| NET HEIGHT (IN) | 19.49 |
| NET WIDTH (IN) | 28.35 |
| NET WEIGHT (LBS) | 54.67 |
| GROSS DEPTH (IN) | 16.54 |
| GROSS HEIGHT (IN) | 27.36 |
| GROSS WIDTH (IN) | 36.22 |
| GROSS WEIGHT (LBS) | 66.58 |
