MRCOOL SKU: DIYS-09-HP-WMAH-115A13-O

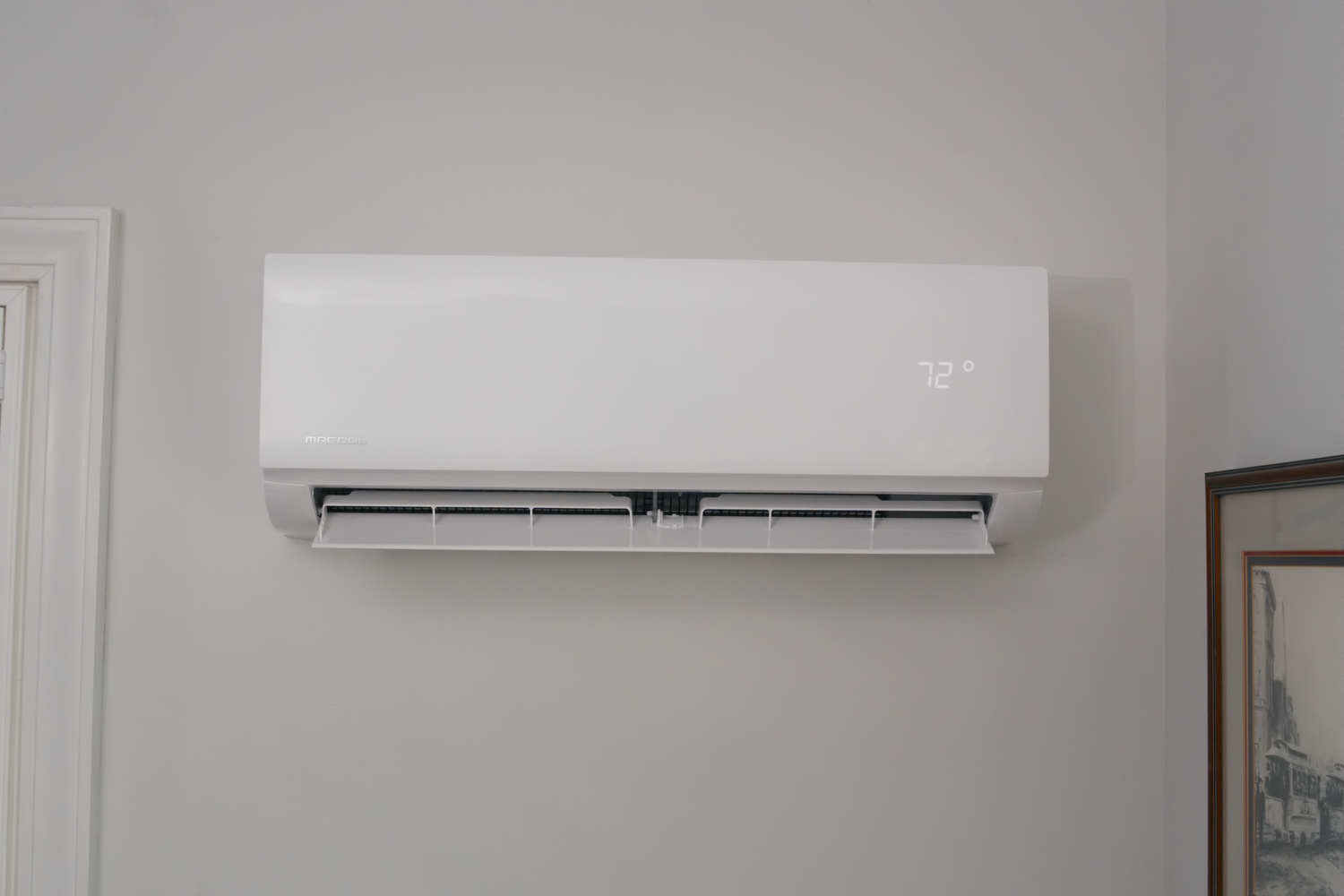

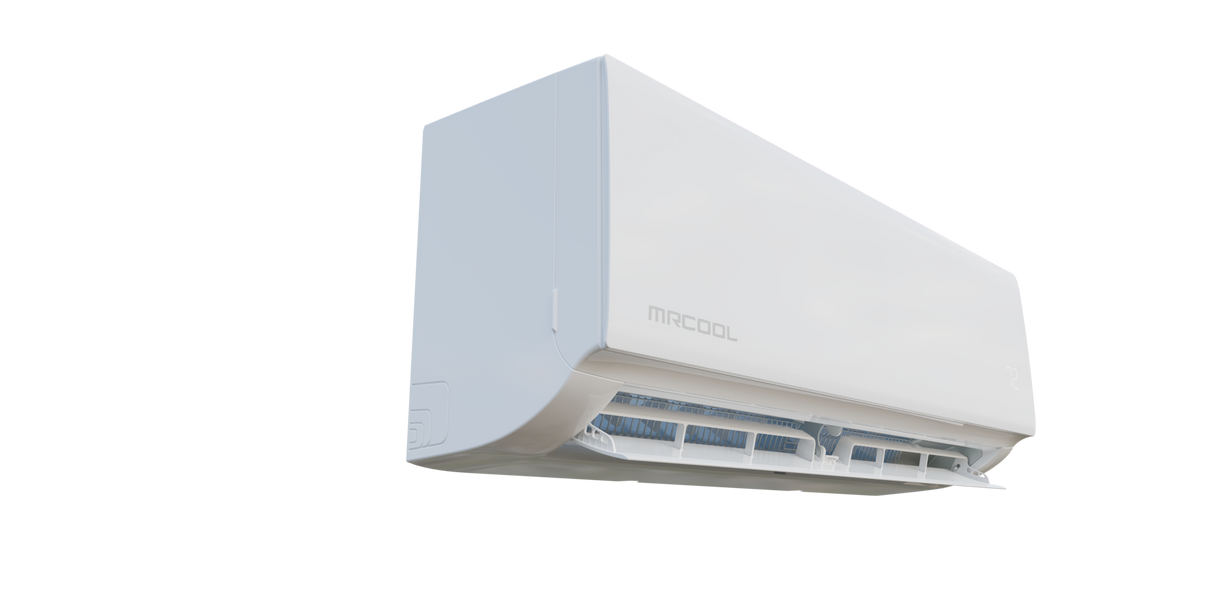

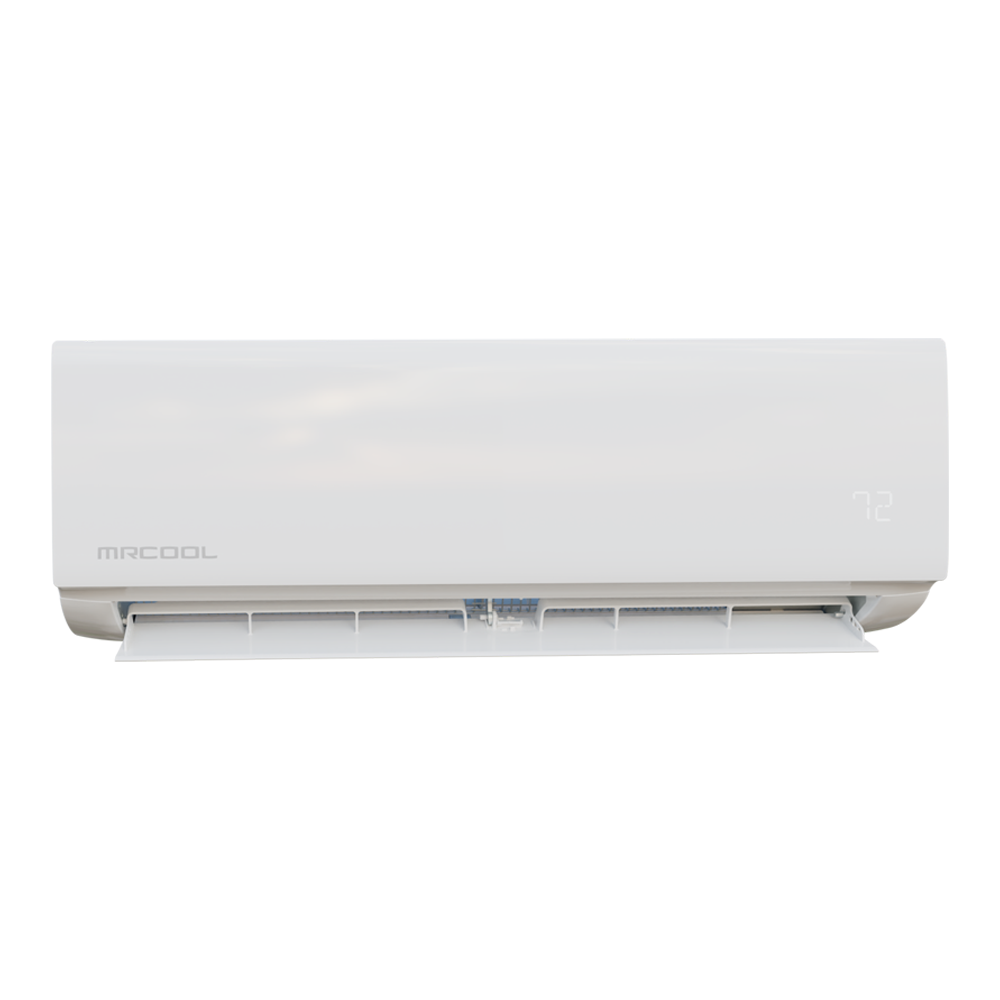

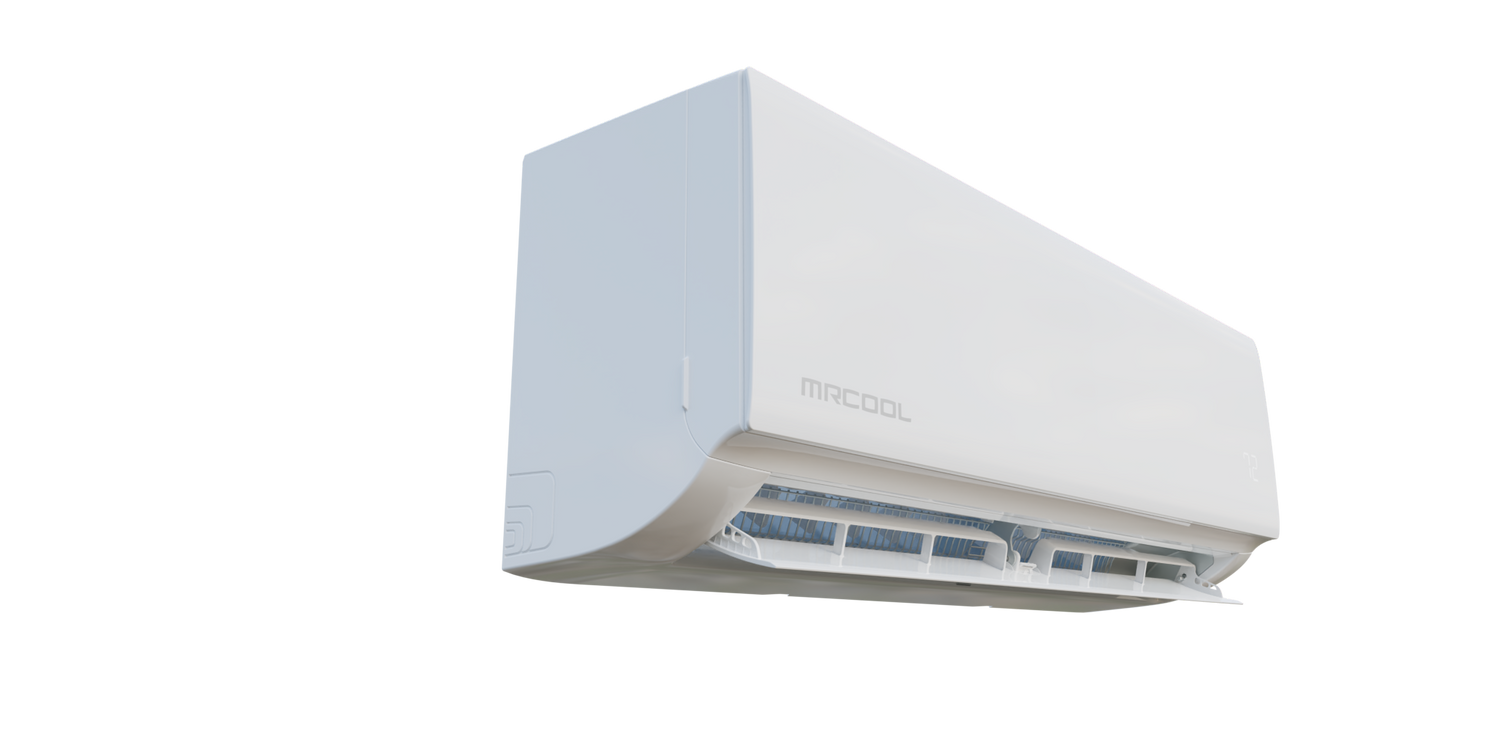

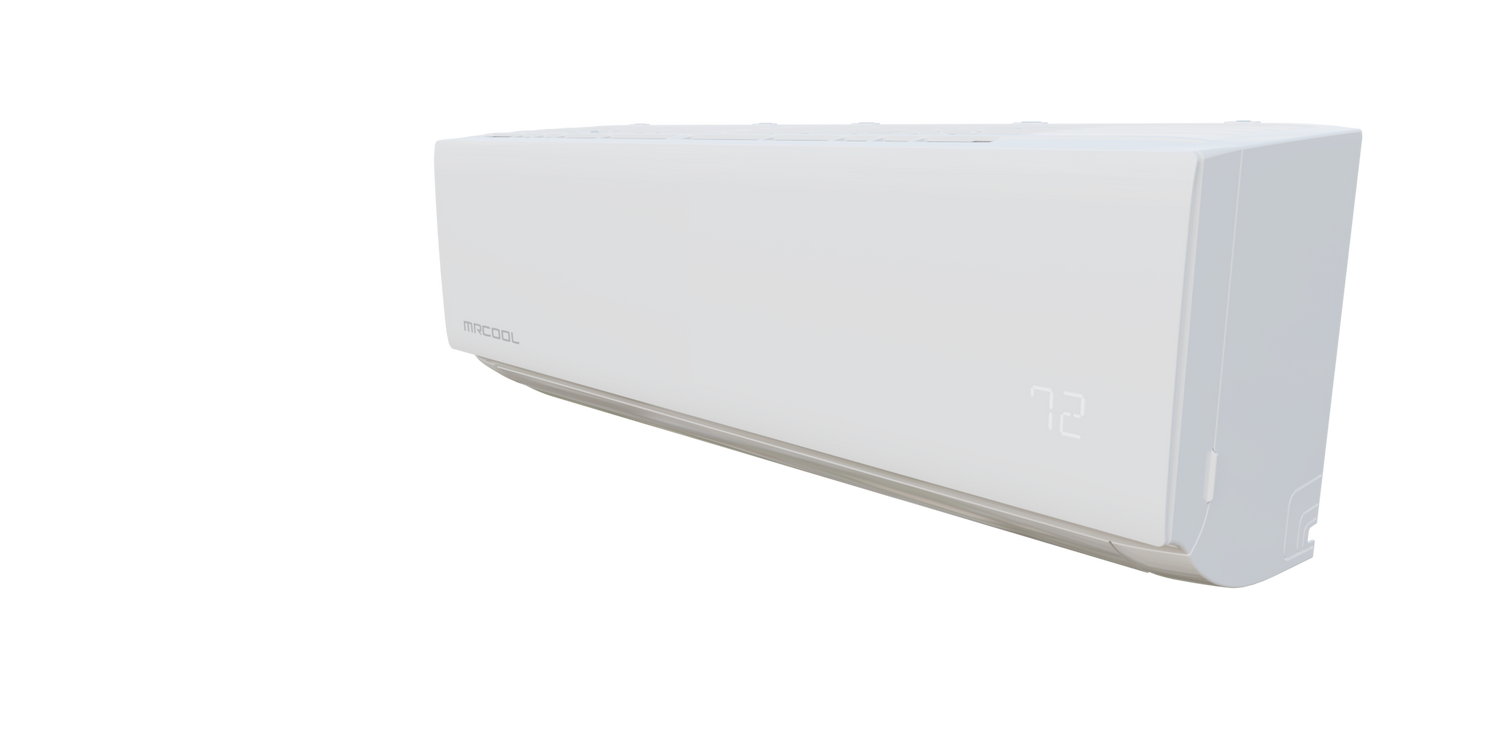

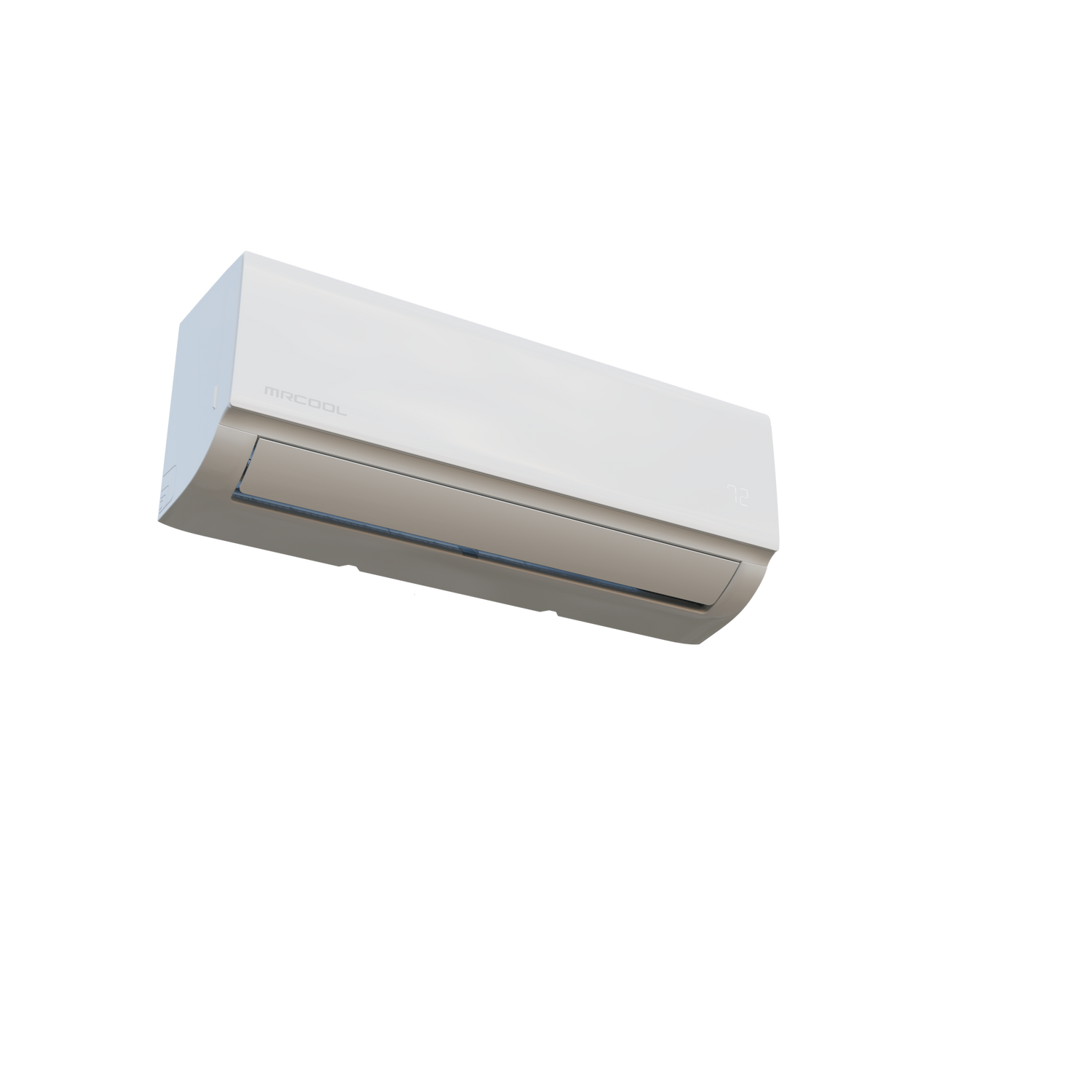

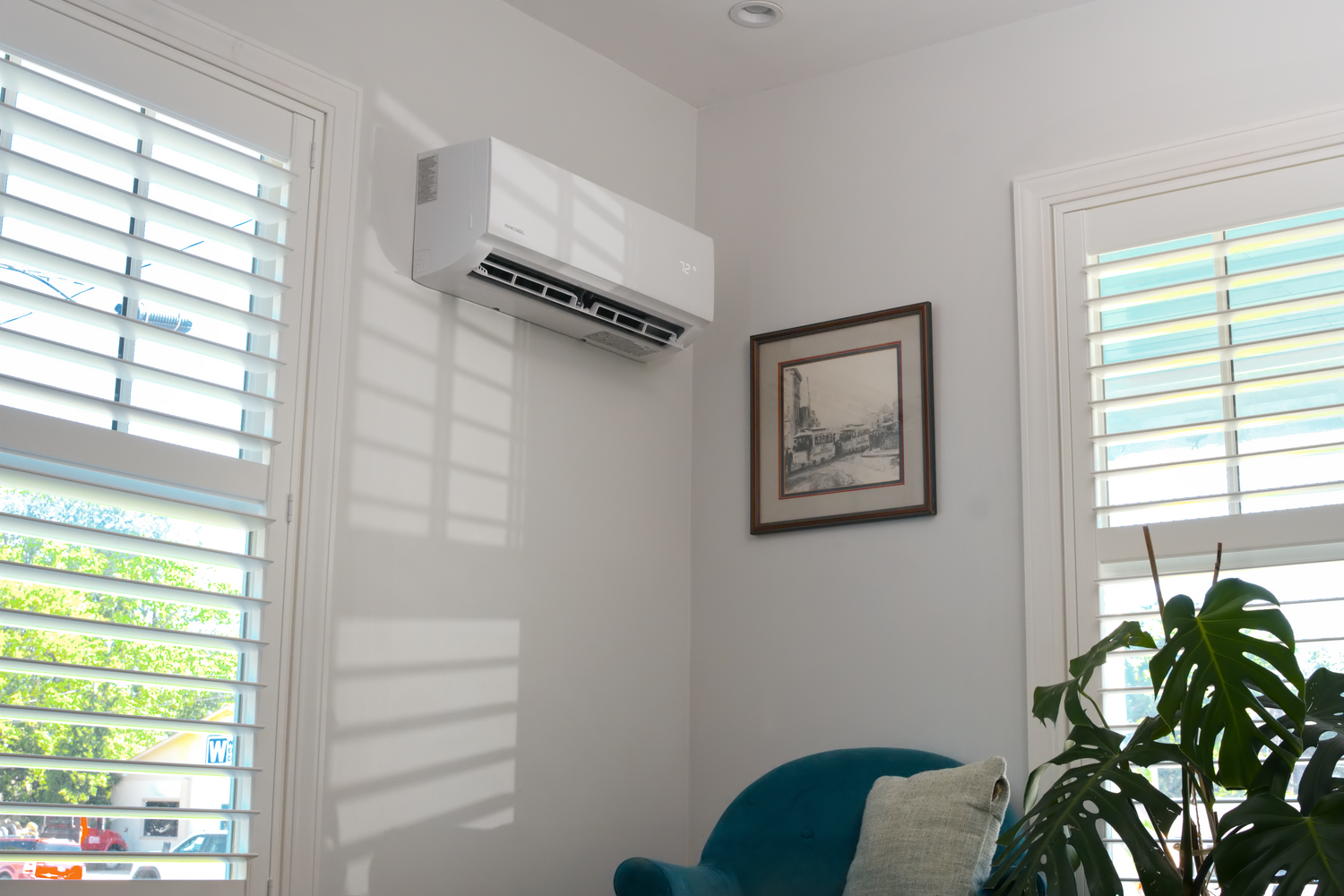

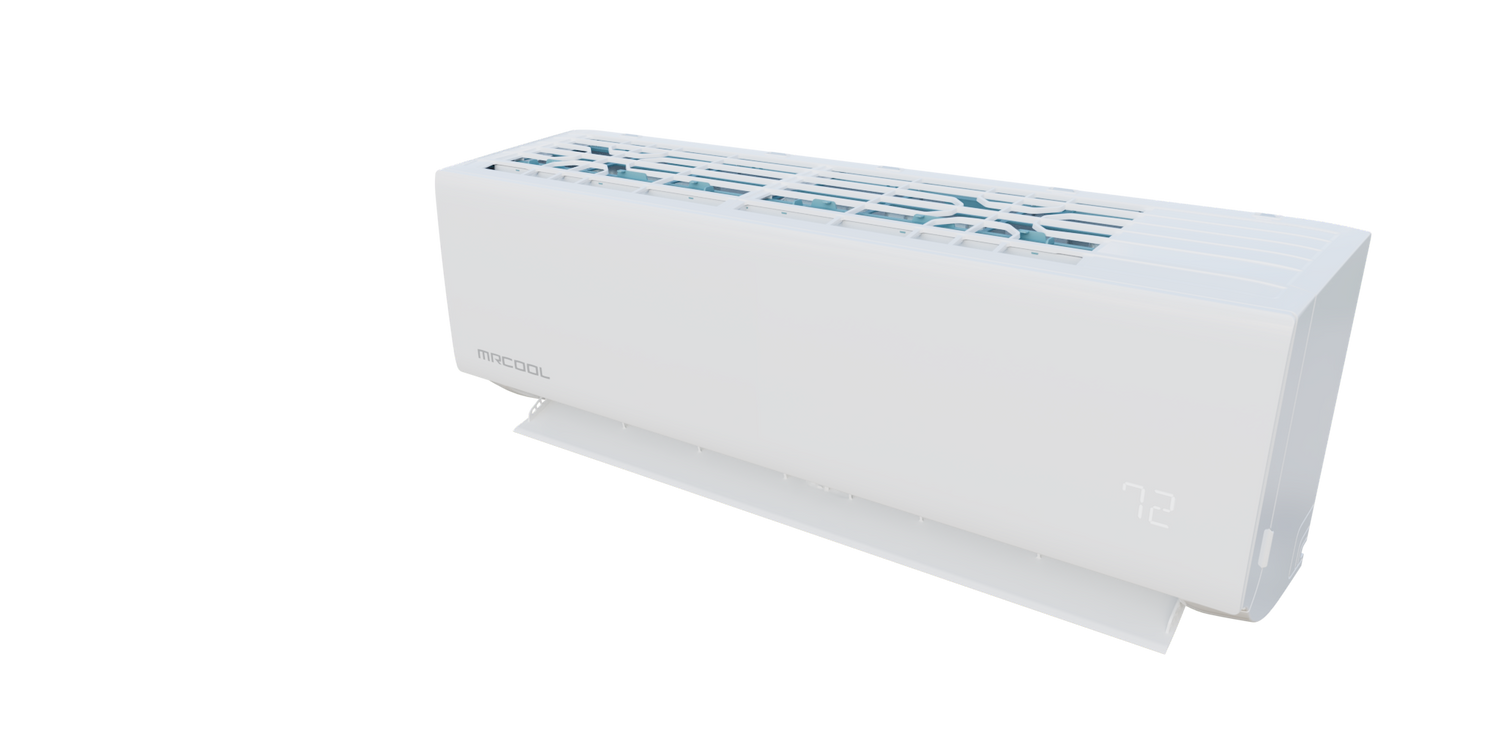

DIY Select 1st Gen - R454B - 9K BTU 115V White Wall Mounted Air Handler - with 13' Communication Cable
DIY Select 1st Gen - R454B - 9K BTU 115V White Wall Mounted Air Handler - with 13' Communication Cable
$29.91 /mo with 12-month special financing (0% APR). Add to cart & apply at checkout. Learn more! Your estimated monthly payment is calculated based on your approved financing terms. Please review the payment terms and conditions.
Additional Discounts in Checkout!
-
Bulk-Buy Discount
Need Large Bulk?
If you need more than 25+ quantity, contact us now for additional discounts.
Installation and Removal
Where will services be needed?
Inner Circle Access
Pro+ Builder Access ( Apply )
Invitation to exclusive events
Get Access to
Get Access to Bulk Price Levels

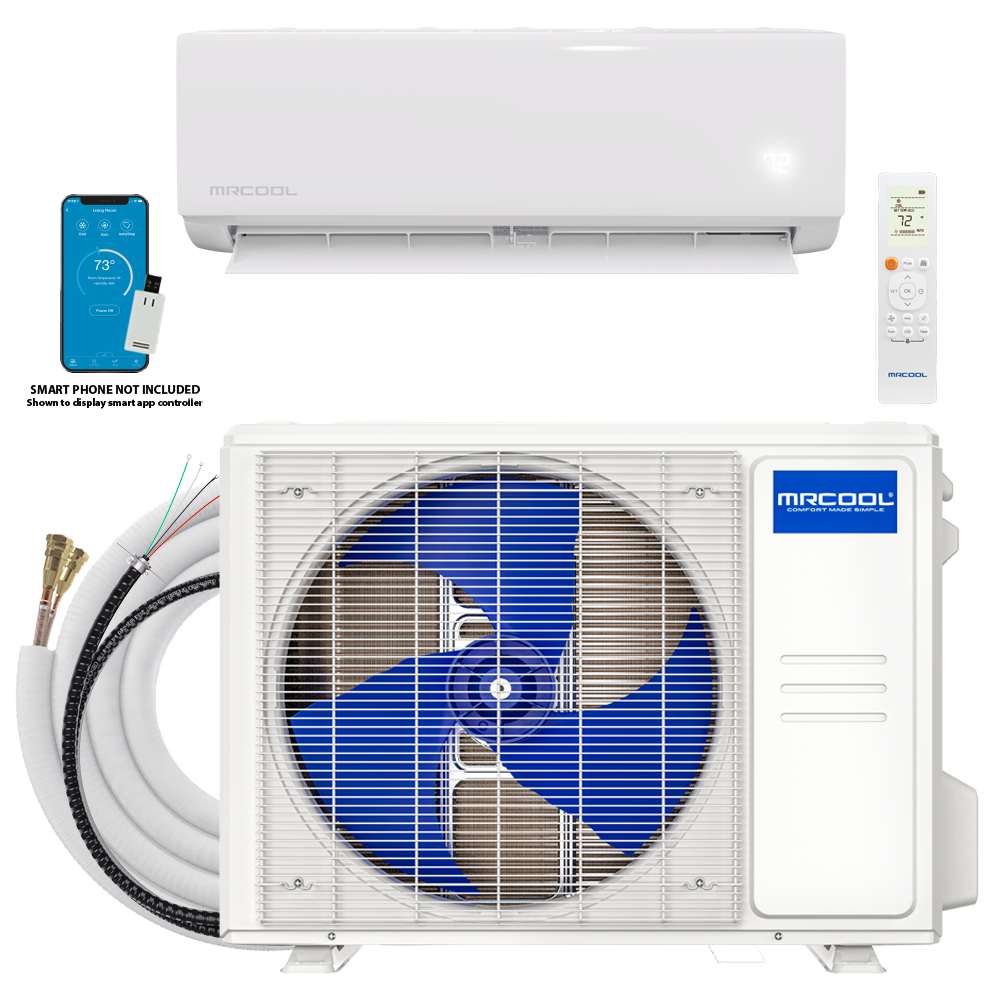

The MRCOOL® DIY® Select 9K BTU 115V Ductless Mini-Split Heat Pump Air Handler delivers efficient, reliable heating and cooling for spaces up to 400 square feet. Ideal for bedrooms, home offices, garages, and bonus rooms, this system provides year-round comfort while helping reduce energy usage and monthly utility costs. Built as part of the MRCOOL® DIY® lineup, this unit is engineered for true do-it-yourself installation with the help of the compatible Quick Connect® line sets. These line sets arrive factory pre-charged with environmentally friendly R-454B to remove the need for vacuum pumps or refrigerant handling. Meanwhile, the included 13-foot DIYPRO® cable eliminates the need for traditional electrical conduit, simplifying installation while protecting wiring from moisture, pests, and everyday wear. Comfort control is easy and flexible using the included wireless remote or the MRCOOL® Comfort app, which allows you to adjust temperatures, create schedules, and monitor energy use from anywhere. Voice-control compatibility with Amazon Alexa and Google Assistant adds hands-free convenience. Dry Mode, Sleep Mode, Auto Mode, and programmable scheduling improve comfort and efficiency, while the Gold Fin® condenser coating delivers added corrosion resistance for long-term durability in humid or coastal climates. For added peace of mind, the MRCOOL® DIY® Select 9K includes a 2-year compressor warranty and 1-year parts warranty.
Specifications
| UNIT TYPE | Mini-Split |
| EQUIPMENT TYPE | Air Handler |
| TONNAGE | 0.75 |
| VOLTAGE (V) | 115 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 15 |
| MIN CIRCUIT AMPACITY (A) | 3 |
| COLOR | White |
| MAX COVERAGE AREA | 400 sq. ft. |
| ZONE CAPACITY | 1 |
| REFRIGERANT TYPE | R-454B |
| DECIBEL RATING LOW (DBA) | 18 |
| DECIBEL RATING HIGH (DBA) | 43 |
| LIQUID LINE SIZE | 1/4 |
| SUCTION LINE SIZE | 3/8 |
| BLOWER MOTOR TYPE | DC |
| BLOWER MOTOR RPM | 1050/810/690 |
| FILTER TYPE | Reusable |
| ADJUSTABLE THERMOSTAT | Yes |
| FAN ONLY OPTION | Yes |
| SLEEP MODE | Yes |
| AUTO COOL | Yes |
| WIFI COMPATIBILITY | Yes |
| APP COMPATIBILITY | Yes |
| WORKS WITH IOS | Yes |
| WORKS WITH ANDROID | Yes |
| REMOTE CONTROL INCLUDED | Yes |
| BASE WARRANTY | 1 Year Parts |
| BASE PARTS WARRANTY | 1 Year Parts |
| BASE REMOTE WARRANTY | 1 Year |
| HAS BATTERIES | Yes |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 7.87 |
| NET HEIGHT (IN) | 11.5 |
| NET WIDTH (IN) | 28.7 |
| NET WEIGHT (LBS) | 23.81 |
| GROSS DEPTH (IN) | 13.97 |
| GROSS HEIGHT (IN) | 16.34 |
| GROSS WIDTH (IN) | 36.02 |
| GROSS WEIGHT (LBS) | 33.95 |
