MRCOOL SKU: MCAEAWPEF18D21AA

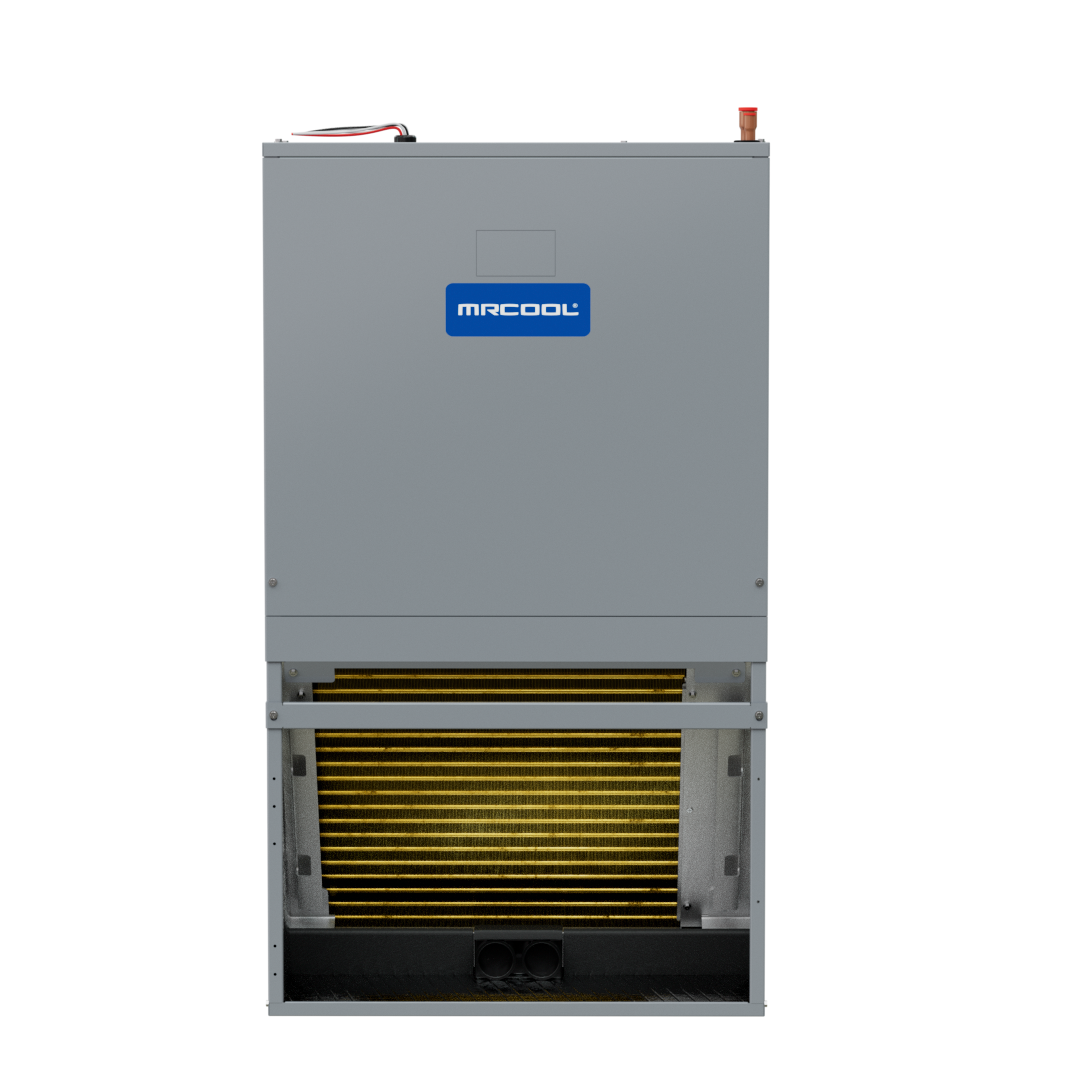

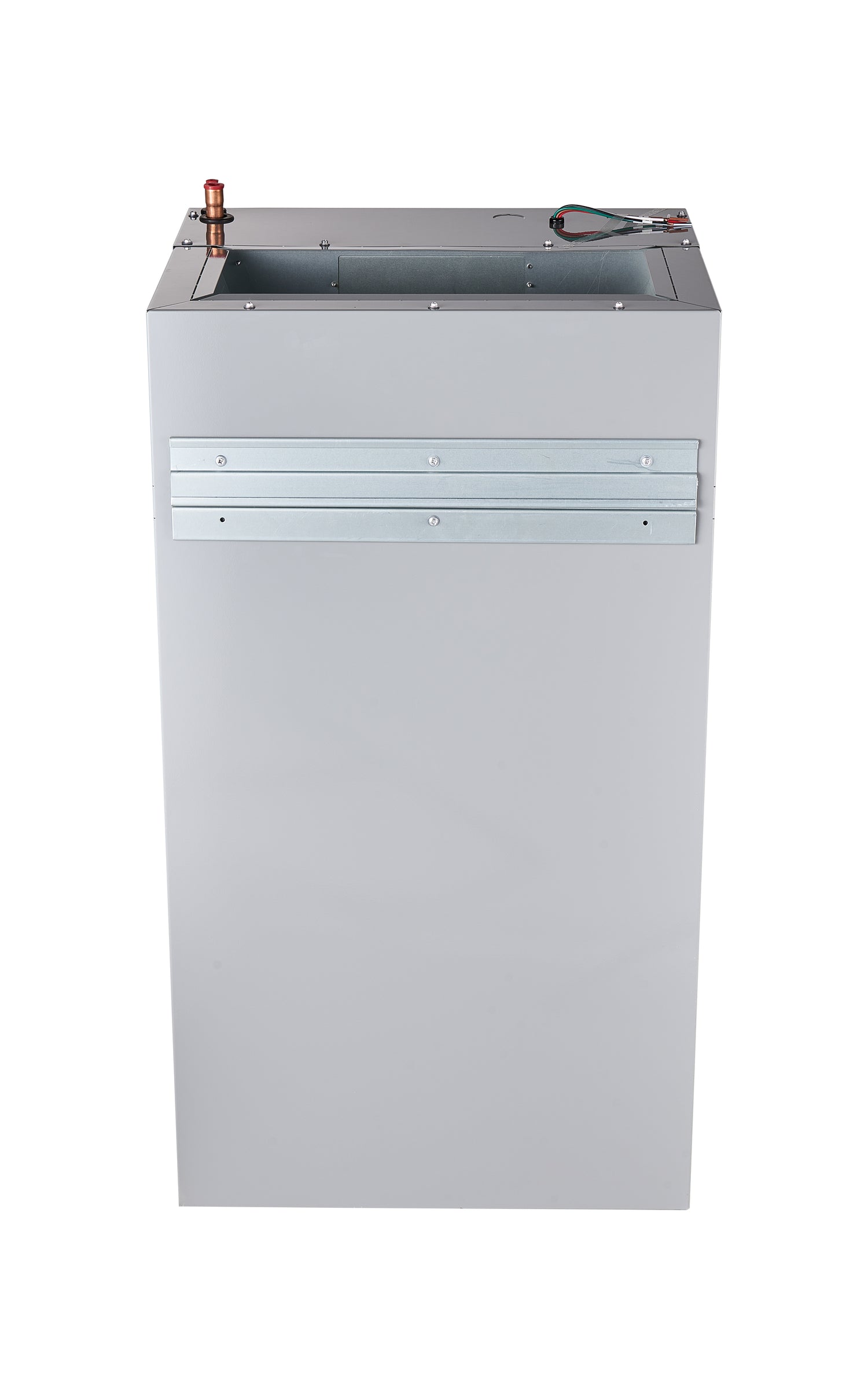

Signature 18,000 BTU Split System Air Handler Stud Mount
$89.75 /mo with 12-month special financing (0% APR). Add to cart & apply at checkout. Learn more! Your estimated monthly payment is calculated based on your approved financing terms. Please review the payment terms and conditions.
Additional Discounts in Checkout!
-
Bulk-Buy Discount
Need Large Bulk?
If you need more than 25+ quantity, contact us now for additional discounts.
Installation and Removal
Where will services be needed?
Inner Circle Access
Pro+ Builder Access ( Apply )
Invitation to exclusive events
Get Access to
Get Access to Bulk Price Levels
Enhance your HVAC setup with the MRCOOL® Signature Series 18K Stud Mount Air Handler—designed for exceptional versatility, efficiency, and simplified installation. Built to fit between standard wall studs, this compact and space-saving unit is ideal for areas where traditional air handlers can't be installed, offering flexible solutions for a variety of applications. Though slim in design, this air handler delivers robust heating and cooling performance when matched with a compatible heat pump or condenser. It offers both front and bottom return air configurations, allowing you to tailor the setup to your specific space and airflow needs. Constructed with a durable galvanized steel cabinet and featuring advanced blower technology, the MRCOOL® Signature Series 18k Stud Mount Air Handler ensures quiet operation and long-lasting reliability. Full cabinet insulation helps reduce condensation and energy loss, while the high-efficiency ECM motor provides consistent airflow and improved energy savings throughout your home. A built-in filter rack allows for quick and easy filter changes, and optional electric heat kits are available to boost performance during colder months. Backed by a 10-year limited parts warranty, this unit delivers peace of mind along with performance. Whether you're remodeling, upgrading, or building new, the MRCOOL® Signature Series 18k Stud Mount Air Handler is a dependable, space-conscious solution built for comfort and convenience.
Specifications
| UNIT TYPE | Air Handler |
| CONFIGURATION | Stud Mount |
| WORKS WITH | Signature Series Top Discharge Condensers |
| CFM | 685 |
| TONNAGE | 1.5 |
| VOLTAGE (V) | 208/230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) | 3 |
| MIN CIRCUIT AMPACITY (A) | 2.5 |
| MOUNT TYPE | Stud Mount |
| COLOR | Grey |
| REFRIGERANT TYPE | R-454B |
| DECIBEL RATING (DBA) | 53 |
| AIR FLOW DIRECTION | Upflow |
| DRAIN CONNECTION SIZE | 3/4 |
| LIQUID LINE SIZE | 3/8 |
| SUCTION LINE SIZE | 3/4 |
| BLOWER MOTOR TYPE | ECM |
| BLOWER MOTOR HP | 1/3 |
| BLOWER MOTOR SPEEDS | 5 |
| BLOWER MOTOR RPM | 960 |
| FILTER TYPE | Replaceable |
| FILTER SIZE | 15 * 19 * 1 |
| METERING DEVICE | Orifice |
| AUXILIARY HEATER INCLUDED | No |
| AUXILIARY HEATER AVAILABLE | Yes |
| AUXILIARY HEATER SIZES | 5kW, 7.5kW, 10kW |
| UL LISTED | Yes |
| CSA LISTED | Yes |
| ETL LISTED | Yes |
| ENERGY STAR CERTIFIED | No |
| AHRI CERTIFIED | Yes |
| BASE WARRANTY | 10 Year Parts, Limited Lifetime Compressor Warranty |
| BASE PARTS WARRANTY | 10 Year |
| BASE COMPRESSOR WARRANTY | Limited Lifetime |
| CONTAINS ELECTRONICS | Yes |
| CONTAINS CHEMICALS | Yes |
| CONTAINS COMPRESSED GAS | Yes |
| PROPOSITION 65 WARNING | Yes |
| NET DEPTH (IN) | 15 |
| NET HEIGHT (IN) | 36 |
| NET WIDTH (IN) | 20.5 |
| NET WEIGHT (LBS) | 88 |
| GROSS DEPTH (IN) | 18.11 |
| GROSS HEIGHT (IN) | 39.375 |
| GROSS WIDTH (IN) | 23.22 |
| GROSS WEIGHT (LBS) | 97 |
Resources & Manuals
